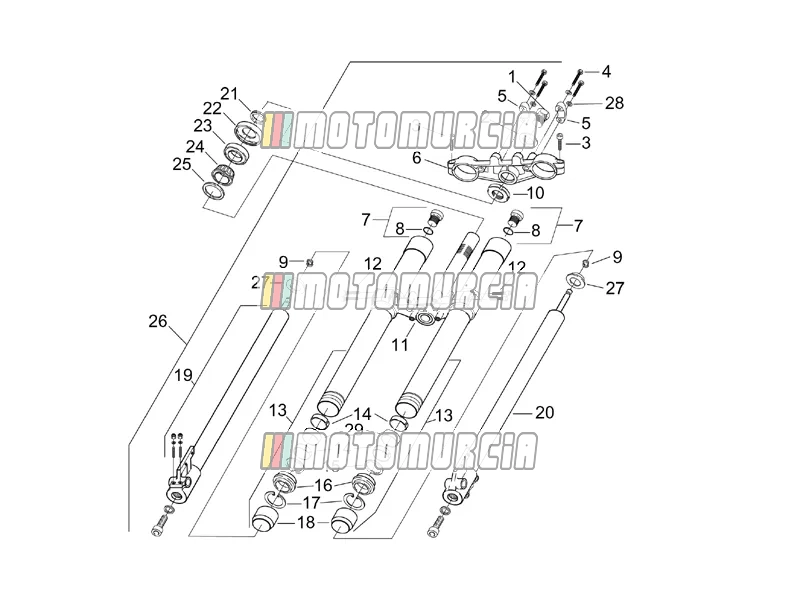

Exploded view — Front Fork

Products

1 Plug Available AP8203251

•

  Screw M20x1.5 Piaggio Group · AP8203251 Available

  € 29,23

  Add to cart

2 Washer Available AP8123843

•

  Shim Piaggio Group · AP8123843 Available

  € 7,49

  Add to cart

3 Screw Backorder AP8203590

•

  Screw M8x35 Piaggio Group · AP8203590 · Quantity needed: 2 Backorder

  € 3,99

  Add to cart

4 Screw Available AP8152090

•

  Hexagon Screw Piaggio Group · AP8152090 · Quantity needed: 4 Available

  € 5,65

  Add to cart

5 U-bolt Backorder AP8203425

•

  Handlebar clamp bracket Piaggio Group · AP8203425 · Quantity needed: 2 Backorder

  € 28,10

  Add to cart

6 Fork upper plate AP8223061 No longer available

• AP8223061 Fork upper plate
  No longer available
•

  Yoke Piaggio Group · AP8203424 Available

  € 148,83

  Add to cart

7 Screw M20x1,5 AP8123210 No longer available

• AP8123210 Screw M20x1,5 Quantity needed: 2
  No longer available
• AP8276012 Plug cpl. D.35 Quantity needed: 2
  No longer available

8 O-Ring AP8276013 No longer available

• AP8276013 O-Ring Quantity needed: 2
  No longer available
• AP8203924 O-Ring Quantity needed: 2
  No longer available

9 Half ring AP8123441 No longer available

• AP8123441 Half ring Quantity needed: 4
  No longer available

10 Fork lower ring nut Available AP8203588

•

  Threaded ring Piaggio Group · AP8203588 Available

  € 29,78

  Add to cart

11 Lower plate AP8276014 No longer available

• AP8276014 Lower plate
  No longer available
• AP8203451 Lower plate
  No longer available

12 Screw AP8163385 No longer available

• AP8163385 Screw Quantity needed: 4
  No longer available

13 Sleeve cpl., black AP8276015 No longer available

• AP8276015 Sleeve cpl., black Quantity needed: 2
  No longer available
• AP8203925 Sleeve cpl., black Quantity needed: 2
  No longer available

14 Bush AP8203447 No longer available

• AP8203447 Bush Quantity needed: 4
  No longer available

15 Washer (M) Backorder 600128

•

  Washer Piaggio Group · 600128 · Quantity needed: 2 Backorder

  € 5,07

  Add to cart
•

  Spacer Ring Piaggio Group · AP8103391 · Quantity needed: 2 Backorder

  € 10,74

  Add to cart

16 Fork oil seal (M) Available 600126

•

  Fork Seal 35x47x10 mm Piaggio Group · 600126 · Quantity needed: 2 Available

  € 26,70

  Add to cart

17 Seeger 600125 No longer available

• 600125 Seeger Quantity needed: 2
  No longer available
•

  Locking Ring Piaggio Group · AP8203445 · Quantity needed: 2 Backorder

  € 12,96

  Add to cart

18 Fork dust seal (M) Available 600127

•

  Dust guard Piaggio Group · 600127 · Quantity needed: 2 Available

  € 25,93

  Add to cart
• AP8203444 Dust cover Quantity needed: 2
  No longer available

19 Fork inner tube Right AP8203811 No longer available

• AP8203811 Fork inner tube Right
  No longer available

20 Hub+LH fork leg AP8203810 No longer available

• AP8203810 Hub+LH fork leg
  No longer available

21 Spacer Available AP8101272

•

  Spacer disc Piaggio Group · AP8101272 Available

  € 12,41

  Add to cart

22 Dust cover Available AP8120211

•

  Dust guard Piaggio Group · AP8120211 Available

  € 15,61

  Add to cart

23 Steering bearing Available AP8110025

•

  Ball bearing Piaggio Group · AP8110025 Available

  € 31,86

  Add to cart

24 Steering bearing Available AP8110024

•

  Roller bearing 25x52x15 mm Piaggio Group · AP8110024 Available

  € 66,01

  Add to cart

25 Lower dust cover ring Available AP8101271

•

  Dust guard Piaggio Group · AP8101271 Available

  € 1,59

  Add to cart

26 Complete front fork AP8223063 No longer available

• AP8223063 Complete front fork
  No longer available

27 Ring AP8276016 No longer available

• AP8276016 Ring Quantity needed: 2
  No longer available

28 Washer AP8203427 No longer available

• AP8203427 Washer Quantity needed: 4
  No longer available

29 Spacer AP8276017 No longer available

• AP8276017 Spacer Quantity needed: 2
  No longer available
