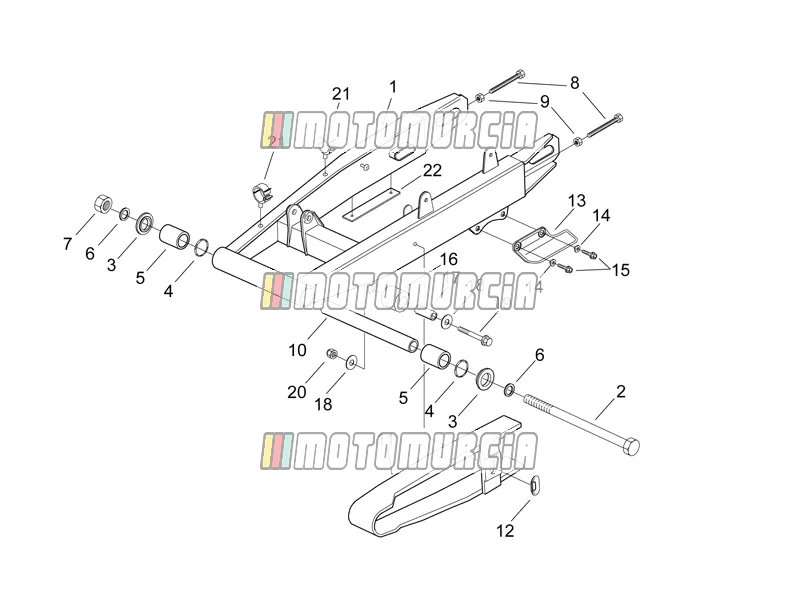

Exploded view — Swing Arm

‹ Back to model
Aprilia RX 50 & MX 50 1995 Aprilia RX 50 & MX 50 1995
Swing Arm

Products

1 Rear arm AP8235136 No longer available
  • AP8235136 Rear arm
    No longer available
  • AP8232682 Swing arm, grey
    No longer available
2 Screw AP8225070 No longer available
  • AP8225070 Screw
    No longer available
3 Spacer AP8220196 No longer available
  • AP8220196 Spacer Quantity needed: 2
    No longer available
4 O-Ring Available AP8220198
  • O-Ring Piaggio Group · AP8220198 · Quantity needed: 2 Available
    € 1,32
5 Spacer AP8220197 No longer available
  • AP8220197 Spacer Quantity needed: 2
    No longer available
6 Washer Available AP8152103
  • Shim 15x22x1 mm Piaggio Group · AP8152103 · Quantity needed: 2 Available
    € 2,53
7 Nut M14x1,5 AP8152087 No longer available
  • AP8152087 Nut M14x1,5
    No longer available
8 Screw Backorder AP8150154
  • Hexagon Screw M8x60 Piaggio Group · AP8150154 · Quantity needed: 2 Backorder
    € 2,27
9 Nut Available AP8150027
  • Standard nut Piaggio Group · AP8150027 · Quantity needed: 2 Available
    € 1,48
10 Spacer AP8221103 No longer available
  • AP8221103 Spacer
    No longer available
11 Guard chain sliding shoe AP8220259 No longer available
  • AP8220259 Guard chain sliding shoe
    No longer available
12 Cup for shoe Available AP8234020
  • Washer Piaggio Group · AP8234020 Available
    € 2,47
13 Chain plate Backorder AP8230440
  • Chain Guide Piaggio Group · AP8230440 Backorder
    € 8,69
14 Spacer Available AP8121035
  • Sleeve Piaggio Group · AP8121035 · Quantity needed: 2 Available
    € 3,91
15 Screw Available 598839
16 Chain tensioner roller AP8101375 No longer available
  • AP8101375 Chain tensioner roller
    No longer available
17 Spacer Backorder AP8121857
  • Spacer Bush Piaggio Group · AP8121857 Backorder
    € 14,34
18 Washer Available AP8150018
  • Shim Piaggio Group · AP8150018 · Quantity needed: 2 Available
    € 2,18
19 Screw Available AP8152292
20 Nut Available AP8150431
  • Standard nut Piaggio Group · AP8150431 Available
    € 2,35
21 Cable-guide Available AP8134186
  • Cable Guide Piaggio Group · AP8134186 · Quantity needed: 2 Available
    € 1,31
22 Lateral stand plate AP8120651 No longer available
  • AP8120651 Lateral stand plate
    No longer available

More drawings of this model

View all →
