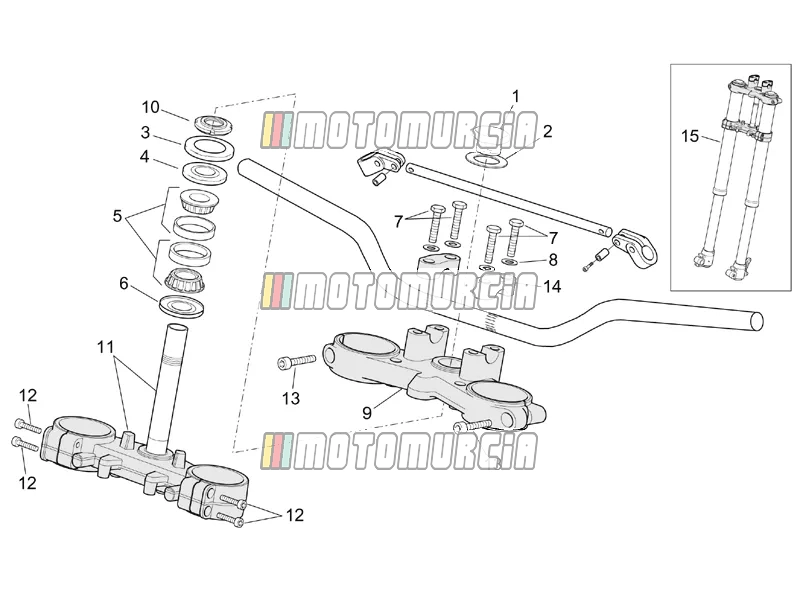

Exploded view — Front Fork I

Products

1 Plug Available AP8203251

•

  Screw M20x1.5 Piaggio Group · AP8203251 Available

  € 29,23

  Add to cart

2 Washer Available AP8123843

•

  Shim Piaggio Group · AP8123843 Available

  € 7,49

  Add to cart

3 Dust cover Available AP8120211

•

  Dust guard Piaggio Group · AP8120211 Available

  € 15,61

  Add to cart

4 Spacer Available AP8101272

•

  Spacer disc Piaggio Group · AP8101272 Available

  € 12,41

  Add to cart

5 Steering bearing Available AP8110024

•

  Roller bearing 25x52x15 mm Piaggio Group · AP8110024 · Quantity needed: 2 Available

  € 66,01

  Add to cart

6 Gasket Available AP8104597

•

  Gasket Piaggio Group · AP8104597 Available

  € 13,12

  Add to cart

7 Screw Available AP8152090

•

  Hexagon Screw Piaggio Group · AP8152090 · Quantity needed: 4 Available

  € 5,65

  Add to cart

8 Washer AP8203427 No longer available

• AP8203427 Washer Quantity needed: 4
  No longer available

9 Fork upper plate Available AP8203424

•

  Yoke Piaggio Group · AP8203424 Available

  € 148,83

  Add to cart

10 Fork lower ring nut Available AP8203588

•

  Threaded ring Piaggio Group · AP8203588 Available

  € 29,78

  Add to cart

11 Stem base AP8163384 No longer available

• AP8163384 Stem base
  No longer available

12 Screw AP8163385 No longer available

• AP8163385 Screw Quantity needed: 4
  No longer available

13 Screw Backorder AP8203590

•

  Screw M8x35 Piaggio Group · AP8203590 · Quantity needed: 2 Backorder

  € 3,99

  Add to cart

14 U-bolt Backorder AP8203425

•

  Handlebar clamp bracket Piaggio Group · AP8203425 · Quantity needed: 2 Backorder

  € 28,10

  Add to cart

15 Front fork AP8223065 No longer available

• AP8223065 Front fork
  No longer available
