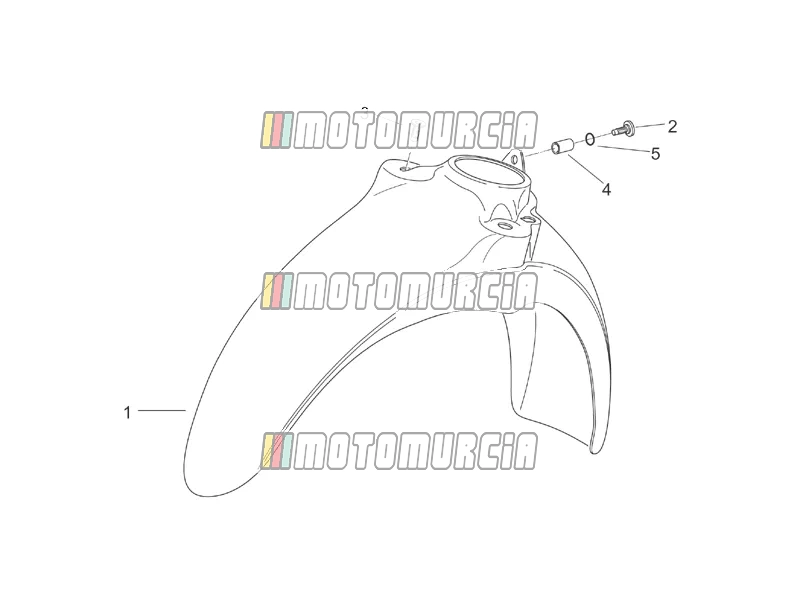

Exploded view — Frame » Front Body Vi - Front Mudguard

‹ Back to model

Aprilia Scarabeo 100 2T (Minarelli) 2000

Products

1 Front mudguard (SILVER) AP8126856 No longer available

AP8126856 Front mudguard (SILVER)
No longer available
AP8126832 Front mudguard
No longer available
AP8126760 Front mudguard, m.red
No longer available
AP8126834 Front mudguard (BLACK)
No longer available
AP8126828 Front mudguard, reef blue
No longer available
AP8126833 Front mudguard
No longer available

2 Screw Available 2B014101

Screw Piaggio Group · 2B014101 Available

€ 3,78

3 Screw Available AP8152298

Flanged Screw M5x16 Piaggio Group · AP8152298 Available

€ 3,80

4 Spacer Available AP8120253

Spacer disc Piaggio Group · AP8120253 Available

€ 1,88

5 Washer Available AP8150382

Shim 15x5,5x1,2 mm Piaggio Group · AP8150382 Available

€ 2,18
