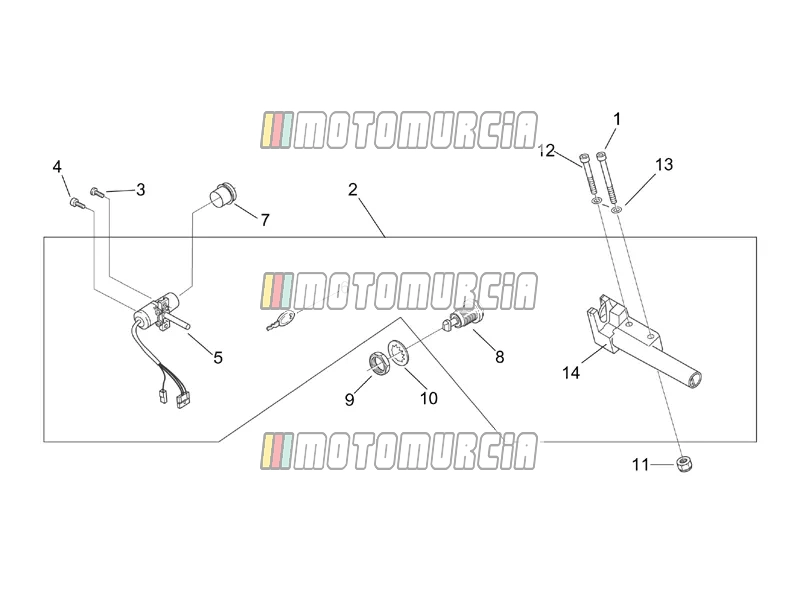

Exploded view — Frame » Lock Hardware Kit

Products

1 Screw Available AP8152003

• • Year of manufacture: MY 2024/2025


  Screw M6x40 Piaggio Group · AP8152003 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

2 Lock kit AP8104195 No longer available

• AP8104195 Lock kit
  No longer available

3 Screw Available AP8152140

•

  Shear / Snap Off Screw M6x17 Piaggio Group · AP8152140 Available · Shipped in 3–5 working days

  € 2,63

  Add to cart

4 Screw Available AP8150137

• • Country: Canada
  • Country: China
  • Country: United States of America


  Screw M6x16 Piaggio Group · AP8150137 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

5 Main switch - steering lock Backorder AP8224442

• • Year of manufacture: 2001
  • Year of manufacture: 2002


  Steering Lock Piaggio Group · AP8224442 Backorder · Shipped in 2–4 weeks

  € 155,39

  Add to cart

6 Key blank Available AP8104613

• • Carburettor version (C364M)


  Key blank without transponder Piaggio Group · AP8104613 Available · Shipped in 3–5 working days

  € 19,66

  Add to cart

7 Gyújtáskapcsoló keret Available AP8220386

•

  Gasket Piaggio Group · AP8220386 Available · Shipped in 3–5 working days

  € 8,74

  Add to cart

8 Box lock Available AP8104600

•

  Lock Piaggio Group · AP8104600 Available · Shipped in 3–5 working days

  € 94,26

  Add to cart

9 Nut Available AP8152194

•

  Standard nut Piaggio Group · AP8152194 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

10 Washer Available AP8221312

•

  Toothed Lock Washer Piaggio Group · AP8221312 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

11 Nut Available AP8150430

• • Colour: """GARDA"" Bluevert 2001"
  • Colour: Tuscany Tibet 2003


  Standard nut Piaggio Group · AP8150430 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

12 Screw Available AP8150202

• • Full power version
  • Country: Europe
  • Country: Switzerland


  Screw M6x50 Piaggio Group · AP8150202 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart

13 Washer Available AP8150014

• • Colour: Hot red 02-03
  • Colour: Peltro Grey 02-03
  • Year of manufacture: 2002


  Shim Piaggio Group · AP8150014 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

14 Saddle lock Backorder AP8201564

• • Year of manufacture: 1997
  • Year of manufacture: 1998


  Seat Lock Piaggio Group · AP8201564 Backorder · Shipped in 2–4 weeks

  € 87,22

  Add to cart
