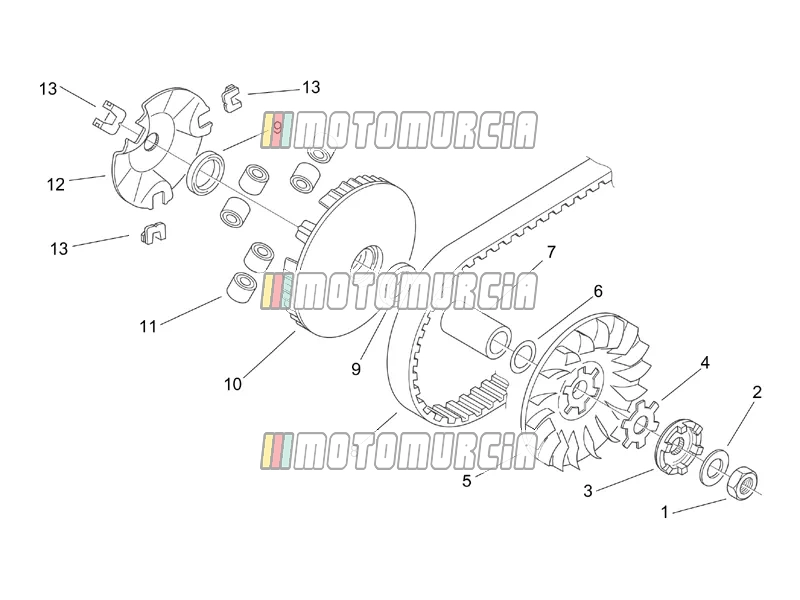

Exploded view — Engine » Variator

Products

1 Nut AP8510724 No longer available

• AP8510724 Nut
  No longer available

2 Conical spring washer AP8510681 No longer available

• AP8510681 Conical spring washer
  No longer available

3 Toothed cup AP8510684 No longer available

• AP8510684 Toothed cup
  No longer available

4 WASHER 90209-14800 No longer available

• 90209-14800 WASHER
  No longer available

5 Fixed pulley AP8510669 No longer available

• AP8510669 Fixed pulley
  No longer available

6 Washer AP8510676 No longer available

• AP8510676 Washer
  No longer available

7 Bush AP8510591 No longer available

• AP8510591 Bush
  No longer available

8 V-Belt AP8510802 No longer available

• AP8510802 V-Belt
  No longer available

9 Oil seal AP8510655 No longer available

• AP8510655 Oil seal Quantity needed: 2
  No longer available

10 Pulley assy., driving AP8510670 No longer available

• AP8510670 Pulley assy., driving
  No longer available

11 Pin roller Backorder AP8510648

•

  Variator roller Content: 1 Stk Piaggio Group · AP8510648 · Quantity needed: 6 Backorder

  € 13,01

  Add to cart

12 Ramp plate AP8510665 No longer available

• AP8510665 Ramp plate
  No longer available

13 Slider AP8510691 No longer available

• AP8510691 Slider Quantity needed: 3
  No longer available
