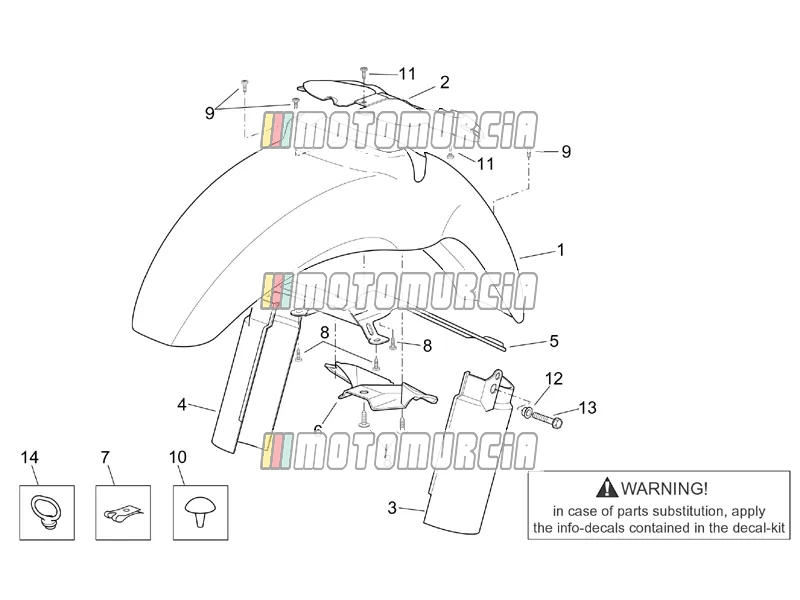

Exploded view — Frame » Front Body - Front Mudguard

‹ Back to model

Aprilia Scarabeo 125-150-200 (Rotax) 2000

Products

1 Front mudguard AP8156011 No longer available

AP8156011 Front mudguard
No longer available
AP8156071 Front mudguard
No longer available
AP8126951 Front mudguard, green
No longer available
AP8156173 Front mudguard
No longer available
AP8156005 Front mudguard (GREEN)
No longer available
AP8126954 Front mudguard
No longer available
AP8126884 Front mudguard, grey
No longer available
AP8126855 Front mudguard, ice green
No longer available
AP8126830 Front mudguard
No longer available
AP8126764 Front mudguard, m.red
No longer available
Mudguard front, grey, Manufacturer colour: platin grey Piaggio Group · AP8126952 Backorder

€ 130,68
AP8156022 Front mudguard, grey
No longer available
AP8126831 Front mudguard
No longer available
AP8156064 Front mudguard, green
No longer available
AP8126950 Front mudguard (Red)
No longer available
AP8156021 Front mudguard (Red)
No longer available
AP8126765 Front mudguard, a.green
No longer available
AP8156172 Front mudguard, grey
No longer available
AP8126635 Front mudguard
No longer available
AP8126763 Front mudguard, s.grey
No longer available

2 Front shield lockup AP8178362 No longer available

AP8178362 Front shield lockup
No longer available

3 Lh hub cover, grey AP8126638 No longer available

AP8126638 Lh hub cover, grey
No longer available
AP8156002 Lh hub cover, grey
No longer available

4 Rh hub cover, grey AP8126637 No longer available

AP8126637 Rh hub cover, grey
No longer available
AP8156001 Rh hub cover, grey
No longer available

5 Front mudguard connect. Backorder AP8134489

Cover Piaggio Group · AP8134489 Backorder

€ 39,07

6 Mudguard protection AP8139727 No longer available

AP8139727 Mudguard protection
No longer available

7 Clip nuts Available AP8201763

Sheet nut Piaggio Group · AP8201763 · Quantity needed: 5 Available

€ 2,27

8 Screw Available AP8152345

Oval Head Screw 5,5x20 mm Piaggio Group · AP8152345 · Quantity needed: 5 Available

€ 1,74

9 Screw Available 598839

Flanged Screw M6x16 Piaggio Group · 598839 · Quantity needed: 3 Available

€ 1,48

10 Rubber spacer Available AP8120001

Plug Piaggio Group · AP8120001 · Quantity needed: 2 Available

€ 6,27

11 Screw Available AP8150426

Oval Head Screw 5,5x15,9 mm Piaggio Group · AP8150426 · Quantity needed: 3 Available

€ 1,48

12 Spacer Backorder AP8121096

Sleeve 8,2x12x4 Piaggio Group · AP8121096 · Quantity needed: 2 Backorder

€ 2,35

13 Screw Available AP8152289

Flanged Screw M8x35 Piaggio Group · AP8152289 · Quantity needed: 2 Available

€ 1,48

14 Cable-guide AP8144240 No longer available

AP8144240 Cable-guide
No longer available

More drawings of this model

View all →

Engine » Carburettor I

Engine » Carburettor Ii

Engine » Carburettor Iii

Engine » Carburettor Iv

Engine » Central Semi-crankcase

Engine » Crankcase

Engine » Cylinder

Engine » Cylinder Head

Engine » Drive Shaft

Engine » Engine Assembly

Engine » Ignition Unit

Engine » Pulley Assy., Driven
