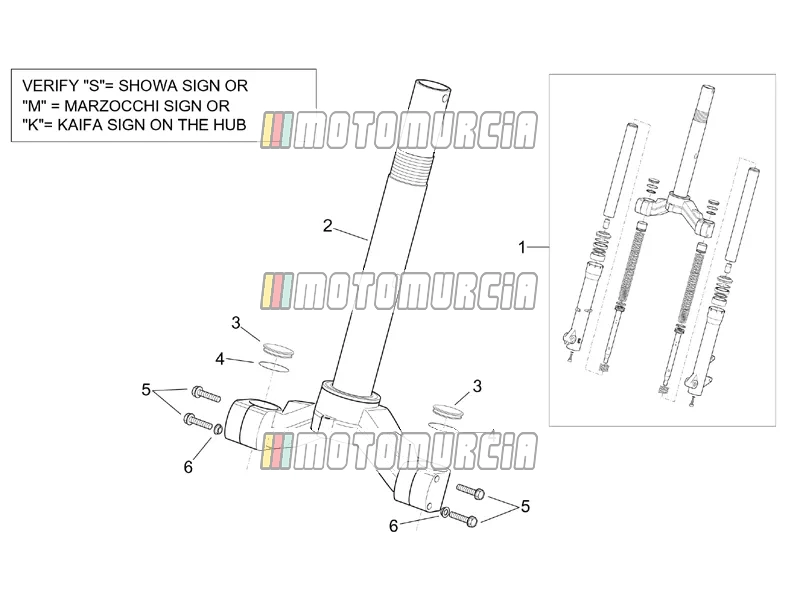

Exploded view — Frame » Front Fork - Stem Base

‹ Back to model

Aprilia Scarabeo 125-150-200 (Rotax) 2000

Products

1 Front fork AP8123793 No longer available

AP8123793 Front fork
No longer available

2 Stem base AP8163001 No longer available

AP8163001 Stem base
No longer available
Fork yoke Kaifa Piaggio Group · AP8163161 Available

€ 413,76
AP8123904 Stem base
No longer available

3 Plug Available 600136

Lock Piaggio Group · 600136 · Quantity needed: 2 Available

€ 7,14
Lid Piaggio Group · AP8163303 · Quantity needed: 2 Available

€ 6,41
Screw Plug Piaggio Group · AP8123759 · Quantity needed: 2 Backorder

€ 6,45

4 O-ring Backorder AP8123695

O-Ring Piaggio Group · AP8123695 · Quantity needed: 2 Backorder

€ 8,34
Circlip Piaggio Group · AP8163304 · Quantity needed: 2 Available

€ 1,37
Locking Ring Piaggio Group · AP8123756 · Quantity needed: 2 Available

€ 1,43

5 Screw Available AP8152289

Flanged Screw M8x35 Piaggio Group · AP8152289 · Quantity needed: 4 Available

€ 1,48
Flanged Screw M8x35 Piaggio Group · AP8163002 · Quantity needed: 4 Backorder

€ 4,16

6 Spacer Backorder AP8121096

Sleeve 8,2x12x4 Piaggio Group · AP8121096 · Quantity needed: 2 Backorder

€ 2,35
Gasket Piaggio Group · 599510 · Quantity needed: 2 Backorder

€ 3,24
