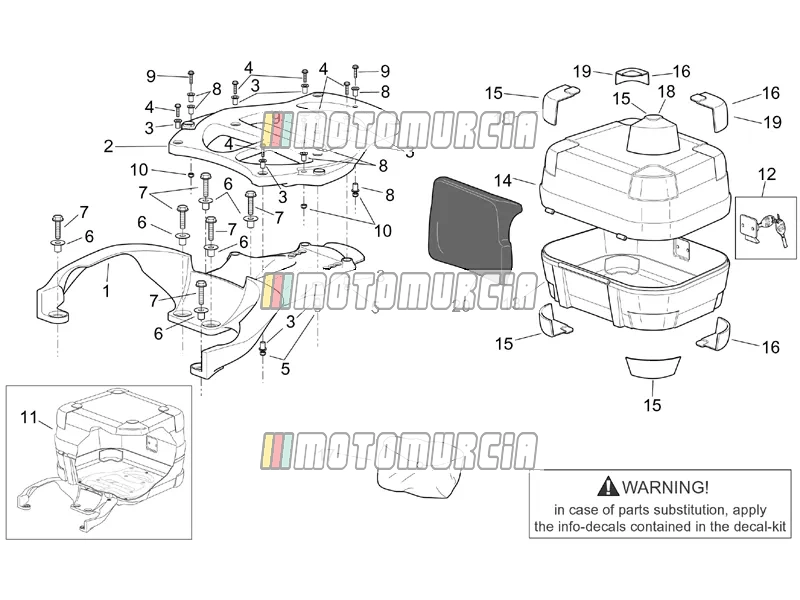

Exploded view — Frame » Top Box With Angulars

Products

1 Lugg.rack support, black AP8178832 No longer available

• AP8178832 Lugg.rack support, black
  No longer available

2 Luggage rack, black AP8158927 No longer available

• AP8158927 Luggage rack, black
  No longer available

3 Spacer Available AP8121725

•

  Sleeve Piaggio Group · AP8121725 · Quantity needed: 12 Available

  € 2,18

  Add to cart

4 Screw Available AP8152282

•

  Flanged Screw M6x35 Piaggio Group · AP8152282 · Quantity needed: 6 Available

  € 1,48

  Add to cart

5 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 6 Available

  € 2,18

  Add to cart

6 Spacer Available AP8121332

•

  Sleeve Piaggio Group · AP8121332 · Quantity needed: 6 Available

  € 3,80

  Add to cart

7 Screw Available AP8152288

•

  Flanged Screw M8x30 Piaggio Group · AP8152288 · Quantity needed: 6 Available

  € 2,47

  Add to cart

8 Spacer Available AP8121790

•

  Sleeve Piaggio Group · AP8121790 · Quantity needed: 6 Available

  € 2,18

  Add to cart

9 Screw Available AP8152136

•

  Screw M6x35 Piaggio Group · AP8152136 · Quantity needed: 3 Available

  € 1,48

  Add to cart

10 Nut Available AP8150430

•

  Standard nut Piaggio Group · AP8150430 · Quantity needed: 3 Available

  € 1,48

  Add to cart

11 Top box, gold AP8158292 No longer available

• AP8158292 Top box, gold
  No longer available
• AP8158149 Top box grey
  No longer available
• AP8139653 Top box
  No longer available
• AP8158153 Top box black
  No longer available
• AP8158250 Top box grey
  No longer available
• AP8149336 Top box grey
  No longer available
• AP8158184 Top box, red
  No longer available
• AP8158200 Top box green
  No longer available
• AP8158155 Top box blue
  No longer available
• AP8158278 Top box blue
  No longer available

12 Top box lock AP8104076 No longer available

• AP8104076 Top box lock
  No longer available

13 Top box base AP8148439 No longer available

• AP8148439 Top box base
  No longer available

14 Top box cover AP8158293 No longer available

• AP8158293 Top box cover
  No longer available
• AP8158267 Top box cover
  No longer available
• AP8158279 Top box cover
  No longer available
• AP8158264 Top box cover
  No longer available
• AP8158154 Top box cover
  No longer available
• AP8148440 Top box cover
  No longer available
• AP8158150 Top box cover
  No longer available
• AP8158156 Top box cover
  No longer available
• AP8158201 Top box cover
  No longer available

15 Big angle bar AP8148441 No longer available

• AP8148441 Big angle bar Quantity needed: 4
  No longer available
• AP8149337 Big angle bar Quantity needed: 4
  No longer available

16 Small angle bar AP8149338 No longer available

• AP8149338 Small angle bar Quantity needed: 4
  No longer available
• AP8148442 Small angle bar Quantity needed: 4
  No longer available

17 Findings kit AP8148443 No longer available

• AP8148443 Findings kit
  No longer available

18 Upper big angle bar AP8158280 No longer available

• AP8158280 Upper big angle bar Quantity needed: 2
  No longer available
• AP8158294 Upper big angle bar Quantity needed: 2
  No longer available
• AP8158265 Upper big angle bar Quantity needed: 2
  No longer available
• AP8158202 Upper big angle bar Quantity needed: 2
  No longer available
• AP8158151 Upper big angle bar Quantity needed: 2
  No longer available

19 Upper small angle bar AP8158295 No longer available

• AP8158295 Upper small angle bar Quantity needed: 2
  No longer available
• AP8158281 Upper small angle bar Quantity needed: 2
  No longer available
• AP8158266 Upper small angle bar Quantity needed: 2
  No longer available
• AP8158203 Upper small angle bar Quantity needed: 2
  No longer available
• AP8158158 Upper small angle bar Quantity needed: 2
  No longer available
• AP8158152 Upper small angle bar Quantity needed: 2
  No longer available

20 Seat cushion, grey AP8129322 No longer available

• AP8129322 Seat cushion, grey
  No longer available
• AP8129324 Seat cushion, black
  No longer available
• AP8129326 Seat cushion, grey
  No longer available
• AP8129323 Seat cushion, light brown
  No longer available
