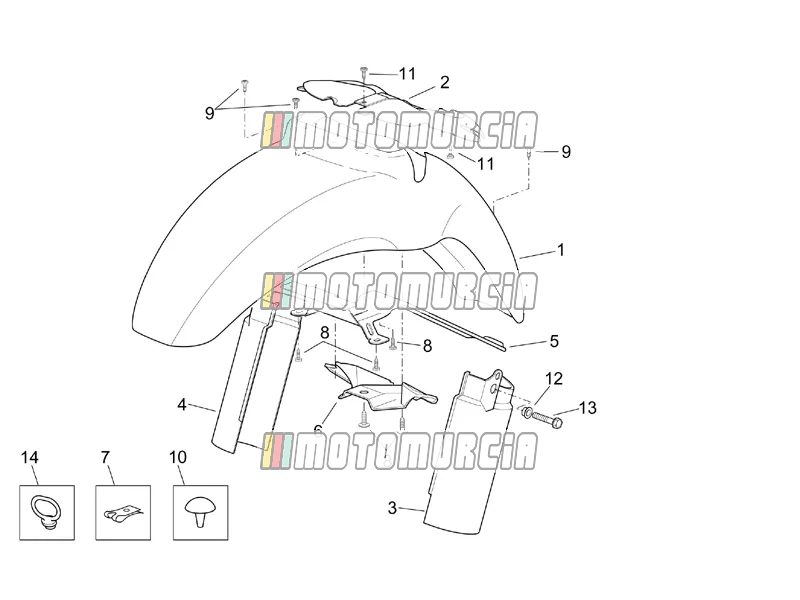

Exploded view — Frame » Front Body - Front Mudguard

‹ Back to model

Aprilia Scarabeo 125-200 (Piaggio) 2003

Products

1 Front mudguard, green AP8156064 No longer available

AP8156064 Front mudguard, green
- Colour: Sideral Green 2003
- Year of manufacture: 2003
No longer available
AP8126884 Front mudguard, grey
- Colour: Mercury Grey 2001-2002-2003
- Colour: Mercury Grey 2003
No longer available
AP8156071 Front mudguard
- Colour: Main Blue 2003
- Year of manufacture: 2003
No longer available

2 Front shield lockup AP8178362 No longer available

AP8178362 Front shield lockup
No longer available

3 Lh hub cover, grey AP8156002 No longer available

AP8156002 Lh hub cover, grey
- Country: United States of America
No longer available

4 Rh hub cover, grey AP8156001 No longer available

AP8156001 Rh hub cover, grey
- Country: United States of America
No longer available

5 Front mudguard connect. Backorder AP8134489

Cover Piaggio Group · AP8134489 Backorder · Shipped in 2–4 weeks

€ 39,07

6 Mudguard protection AP8139727 No longer available

AP8139727 Mudguard protection
No longer available

7 Clip nuts Available AP8201763

- ETV Capo Nord RALLY/RAID version
Sheet nut Piaggio Group · AP8201763 · Quantity needed: 5 Available · Shipped in 3–5 working days

€ 2,27

8 Screw Available AP8152345

Oval Head Screw 5,5x20 mm Piaggio Group · AP8152345 · Quantity needed: 5 Available · Shipped in 3–5 working days

€ 1,74

9 Screw Available 598839

- Colour: Off Black 2009 (s.t.890773)
- Colour: Off Black 2010 (s.t.895847)
- Country: China
- Country: Japan
- Country: United States of America
Flanged Screw M6x16 Piaggio Group · 598839 · Quantity needed: 3 Available · Shipped in 3–5 working days

€ 1,48

10 Rubber spacer Available AP8120001

- Year of manufacture: 2003
- Year of manufacture: 2004
- Country: United States of America
Plug Piaggio Group · AP8120001 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 6,27

11 Screw Available AP8150426

Oval Head Screw 5,5x15,9 mm Piaggio Group · AP8150426 · Quantity needed: 3 Available · Shipped in 3–5 working days

€ 1,48

12 Spacer Available AP8121096

- Colour: Special Edition
- Fork with letter K on hub
- Fork with letter S on hub
Sleeve 8,2x12x4 Piaggio Group · AP8121096 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 2,35

13 Screw Available AP8152289

- Year of manufacture: 1998
- Year of manufacture: 2003
- Country: Canada
- Country: United States of America
Flanged Screw M8x35 Piaggio Group · AP8152289 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 1,48

14 Cable-guide AP8144240 No longer available

AP8144240 Cable-guide
No longer available
