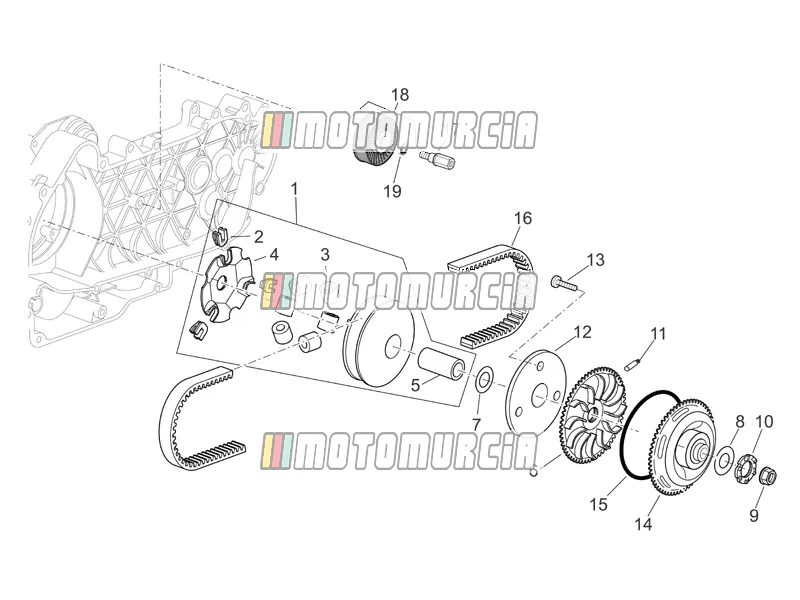

Exploded view — Engine » Variator Assembly

Products

1 Variator Available CM144403

•

  Variator with 6 rollers Piaggio Group · CM144403 Available

  € 103,14

  Add to cart
•

  Pulley halves Piaggio Group · CM144404 Available

  € 110,11

  Add to cart

2 Variator slider Available 4348555

•

  Slide Piaggio Group · 4348555 · Quantity needed: 3 Available

  € 2,52

  Add to cart

3 Roller weights (10,7 g) Available 4857135

•

  Variator weights 21x17 mm, 10,7 g, Content: 6 Stk Piaggio Group · 4857135 Available

  € 18,86

  Add to cart
•

  Variator weights 19x17 mm, 7,4 g, Content: 6 Stk Piaggio Group · CM1038045 Available

  € 18,68

  Add to cart

4 Roller contrast Available 842204

•

  Calotte Piaggio Group · 842204 Available

  € 15,22

  Add to cart

5 Spacer Available 483889

•

  Converter Hub Piaggio Group · 483889 Available

  € 39,86

  Add to cart

6 V-Belt Pulley Available 845607

•

  Pulley halves Piaggio Group · 845607 Available

  € 53,86

  Add to cart
•

  Pulley halves Piaggio Group · 834774 Available

  € 45,85

  Add to cart

7 Washer Available 434885

•

  Shim Piaggio Group · 434885 Available

  € 2,35

  Add to cart

8 Plain washer Available 433391

•

  Shim Piaggio Group · 433391 Available

  € 4,96

  Add to cart

9 Flanged nut M12 Available B015804

•

  Standard nut Piaggio Group · B015804 Available

  € 8,00

  Add to cart

10 Teethed bush Available 827386

•

  Star disk 34,58x17,1x4 mm Piaggio Group · 827386 Available

  € 17,81

  Add to cart

11 Pin Available 432204

•

  Grooved Pin Piaggio Group · 432204 Available

  € 3,04

  Add to cart

12 Plate Available 832715

•

  Bracket Piaggio Group · 832715 Available

  € 26,24

  Add to cart

13 Screw Available 015996

•

  Screw M4x12 Piaggio Group · 015996 · Quantity needed: 3 Available

  € 0,99

  Add to cart

14 Torque limiter 840815 No longer available

• 840815 Torque limiter
  No longer available

15 O-Ring Available 832508

•

  Oil seal Piaggio Group · 832508 Available

  € 2,23

  Add to cart

16 V-Belt Available 842011

•

  V-Belt Piaggio Group · 842011 Available

  € 125,25

  Add to cart
•

  V-Belt Piaggio Group · 1A011456 Available

  € 71,45

  Add to cart

17 Screw Available 829326

•

  Screw Piaggio Group · 829326 Available

  € 6,73

  Add to cart

18 Toothed pulley Available 833989

•

  Toothed Belt Pulley Piaggio Group · 833989 Available

  € 74,26

  Add to cart

19 Bearing Available 82577R

•

  Bearing 10x35x11 mm Piaggio Group · 82577R Available

  € 13,77

  Add to cart
