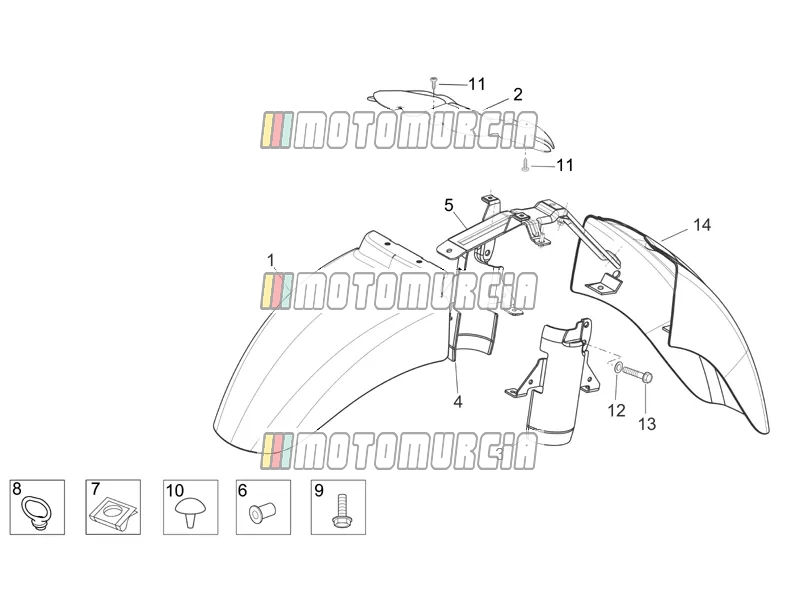

Exploded view Frame » Front Body - Front Mudguard — Aprilia Scarabeo 125-200 (Piaggio) 2006

Products

1 Upper front mudguard, red AP8156306 No longer available

• AP8156306 Upper front mudguard, red
  • Colour: Shine Red 2006 (s.t.852608)
  No longer available
• AP8156314 Upper front mudguard, grey
  • Colour: Shot Grey 2006 (s.t.852610)
  No longer available
• AP8156312 Upper front mudguard, blue
  • Colour: Couture Blue 2006 (s.t.852609)
  No longer available

2 Front shield lockup AP8178362 No longer available

• AP8178362 Front shield lockup
  No longer available

3 Lh hub cover, grey AP8156132 No longer available

• AP8156132 Lh hub cover, grey
  No longer available

4 Rh hub cover, grey AP8156131 No longer available

• AP8156131 Rh hub cover, grey
  No longer available

5 Front mudguard connect. Backorder AP8134489

•

  Cover Piaggio Group · AP8134489 Backorder · Shipped in 2–4 weeks

  € 39,07

  Add to cart

6 Rubber w/ insert Available AP8120531

• • Year of manufacture: 1998
  • Year of manufacture: 2003


  Rubber Bush Piaggio Group · AP8120531 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 7,84

  Add to cart

7 Clip nuts (M6) Available 254485

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Sheet nut Piaggio Group · 254485 · Quantity needed: 8 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart

8 Cable-guide AP8144240 No longer available

• AP8144240 Cable-guide
  No longer available

9 Screw Available 598839

• • Colour: Off Black 2009 (s.t.890773)
  • Colour: Off Black 2010 (s.t.895847)
  • Country: China
  • Country: Japan
  • Country: United States of America


  Flanged Screw M6x16 Piaggio Group · 598839 · Quantity needed: 8 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

10 Rubber spacer Available AP8120001

• • Year of manufacture: 2003
  • Year of manufacture: 2004
  • Country: United States of America


  Plug Piaggio Group · AP8120001 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 6,27

  Add to cart

11 Screw Available AP8150426

•

  Oval Head Screw 5,5x15,9 mm Piaggio Group · AP8150426 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

12 Washer Available AP8150017

• • Colour: 400


  Shim 8,4x16x1,6 mm Piaggio Group · AP8150017 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

13 Screw Available 149104

• • Country: Indonesia


  Allen screw M8x40 Piaggio Group · 149104 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,75

  Add to cart

14 Bottom front mudguard, red AP8156307 No longer available

• AP8156307 Bottom front mudguard, red
  • Colour: Shine Red 2006 (s.t.852608)
  No longer available
• AP8156315 Lower front mudguard, grey
  • Colour: Shot Grey 2006 (s.t.852610)
  No longer available
• AP8156313 Lower front mudguard, blue
  • Colour: Couture Blue 2006 (s.t.852609)
  No longer available
