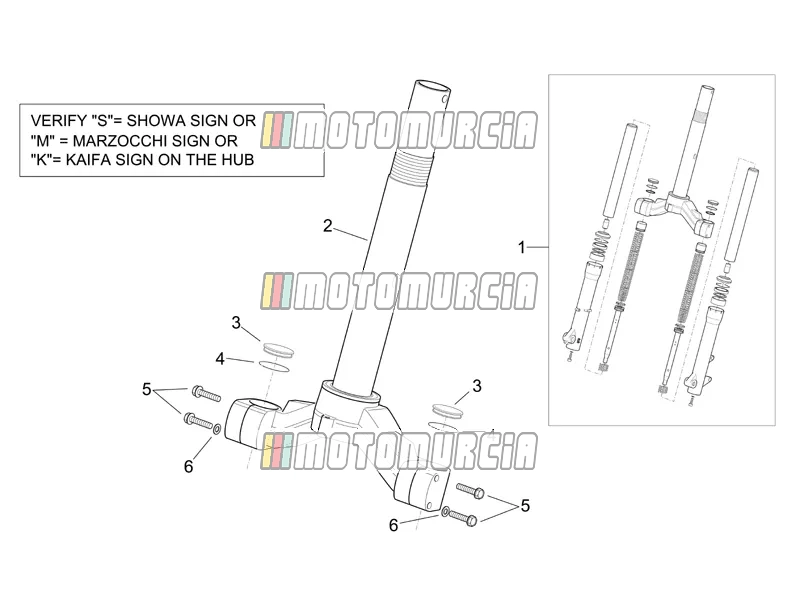

Exploded view — Frame » Front Fork - Stem Base

‹ Back to model

Aprilia Scarabeo 125-200 (Piaggio) 2006

Products

1 Front fork AP8123793 No longer available

AP8123793 Front fork
No longer available

2 Stem base AP8163001 No longer available

AP8163001 Stem base
No longer available
AP8123904 Stem base
No longer available
Fork yoke Kaifa Piaggio Group · AP8163161 Available

€ 413,76

3 Plug Available 600136

Lock Piaggio Group · 600136 · Quantity needed: 2 Available

€ 7,14
Lid Piaggio Group · AP8163303 · Quantity needed: 2 Available

€ 6,41
Screw Plug Piaggio Group · AP8123759 · Quantity needed: 2 Backorder

€ 6,45

4 Seeger Available AP8123756

Locking Ring Piaggio Group · AP8123756 · Quantity needed: 2 Available

€ 1,43
Circlip Piaggio Group · AP8163304 · Quantity needed: 2 Available

€ 1,37
O-Ring Piaggio Group · AP8123695 · Quantity needed: 2 Backorder

€ 8,34

5 Screw Available 149104

Allen screw M8x40 Piaggio Group · 149104 · Quantity needed: 4 Available

€ 1,75

6 Washer Available AP8150017

Shim 8,4x16x1,6 mm Piaggio Group · AP8150017 · Quantity needed: 2 Available

€ 2,18
