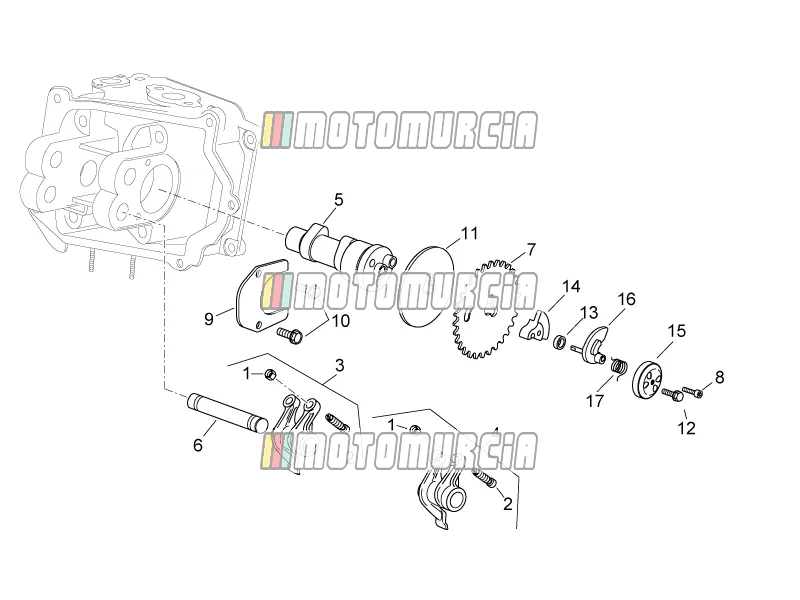

Exploded view — Engine » Timing System

Products

1 Nut Available 484819

•

  Standard nut Piaggio Group · 484819 · Quantity needed: 4 Available

  € 1,52

  Add to cart

2 Adjuster screw 82817R No longer available

• 82817R Adjuster screw Quantity needed: 4
  No longer available

3 Rocker arm (EX) Available B0184845

•

  Exhaust rocker arm Piaggio Group · B0184845 Available

  € 340,19

  Add to cart

4 Rocker arm (IN) Available B0184835

•

  Rocker Arm Einlass Piaggio Group · B0184835 Available

  € 340,19

  Add to cart

5 Camshaft axle with U.P. Available 8759585

•

  Camshaft Piaggio Group · 8759585 Available

  € 218,42

  Add to cart

6 Rocker arms axis Available 486343

•

  Rocker Arm Shaft Piaggio Group · 486343 · Quantity needed: 2 Available

  € 22,93

  Add to cart

7 Timing system gear Available 877308

•

  Rear Sprocket Piaggio Group · 877308 Available

  € 19,11

  Add to cart

8 Screw Available 414838

•

  Screw M6x35 Piaggio Group · 414838 Available

  € 1,48

  Add to cart

9 Camshaft plate Available 877309

•

  Flange Piaggio Group · 877309 Available

  € 5,59

  Add to cart

10 Screw Available 484123

•

  Flanged Screw Piaggio Group · 484123 · Quantity needed: 2 Available

  € 0,99

  Add to cart

11 Washer 487832 No longer available

• 487832 Washer
  No longer available

12 Screw Available 1A003053

•

  Screw M5x30 Piaggio Group · 1A003053 Available

  € 2,63

  Add to cart

13 Gasket ring Available 487833

•

  Gasket Piaggio Group · 487833 Available

  € 1,65

  Add to cart

14 Decompressor counterweight Available 880650

•

  Counterweight Piaggio Group · 880650 Available

  € 17,73

  Add to cart

15 Decompression bell 880651 No longer available

• 880651 Decompression bell
  No longer available

16 Decompression counterweight Available 8291395

•

  Decompression Body Piaggio Group · 8291395 Available

  € 38,74

  Add to cart

17 Spring Available 486974

•

  Spring Piaggio Group · 486974 Available

  € 0,99

  Add to cart
