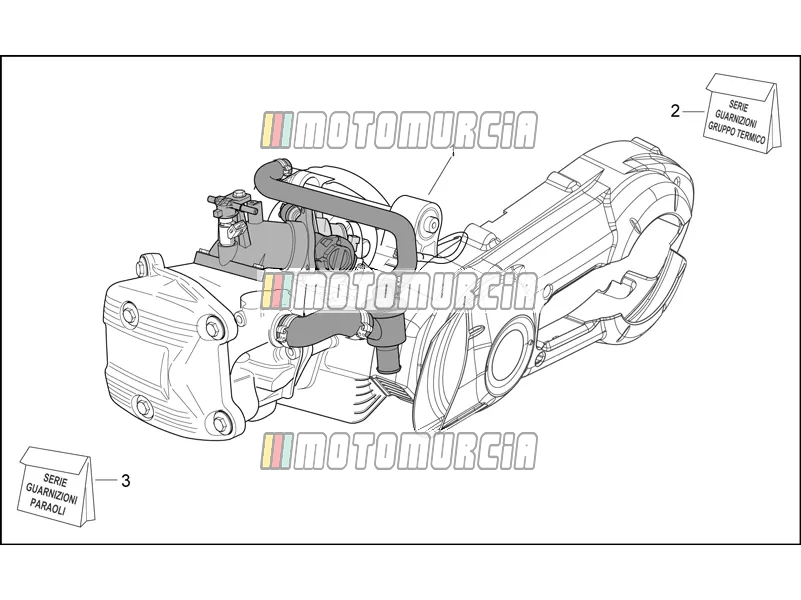

Exploded view — Engine » Engine Assembly

‹ Back to model
Aprilia Scarabeo 400-492-500 Light 2006 Aprilia Scarabeo 400-492-500 Light 2006
Engine » Engine Assembly

Products

1 Engine 500 cc. 5046605 No longer available
  • 5046605 Engine 500 cc.
    No longer available
  • CM1500195 Engine 492cc
    No longer available
  • CM1524195 ENGINE 400 4T/4V E3 BEVERLY
    No longer available
  • CM1522145 Engine 500 cc.
    No longer available
  • 5047405 Engine 500 cc.
    No longer available
2 Gasket set - cylinder 497090 No longer available
  • 497090 Gasket set - cylinder
    No longer available
3 Gasket set - engine 497091 No longer available
  • 497091 Gasket set - engine
    No longer available

More drawings of this model

View all →
