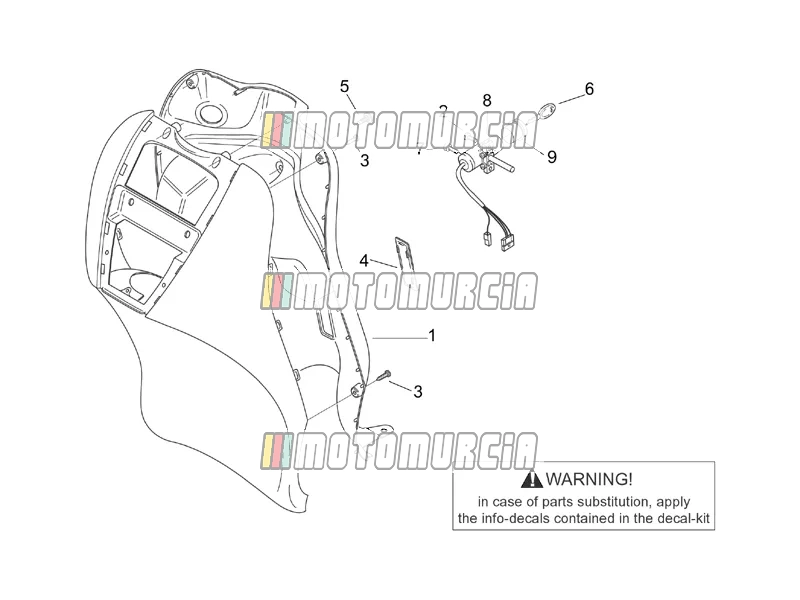

Exploded view — Frame » Front Body V - Internal Shield

Products

1 Internal shield, cherry red AP8248441 No longer available

• AP8248441 Internal shield, cherry red
  No longer available
• AP8248553 Internal shield, m.red
  No longer available
• AP8248497 Internal shield, moon white
  No longer available
• AP8248537 Internal shield, night blue
  No longer available
• AP8249240 Internal shield, cyber cyan
  No longer available
• AP8248426 Internal shield, black varn.
  No longer available
• AP8249318 Internal shield, moon white
  No longer available
• AP8248517 Internal shield, cyber cyan
  No longer available
• AP8248778 Internal shield, straw yellow
  No longer available
• AP8249325 Internal shield, night blue
  No longer available
• AP8248763 Internal shield, el.cyan
  No longer available
• AP8248646 Internal shield, twist cyan
  No longer available
• AP8248631 Internal shield, lymph green
  No longer available

2 Screw Available AP8152140

•

  Shear / Snap Off Screw M6x17 Piaggio Group · AP8152140 Available

  € 2,63

  Add to cart

3 Screw Available AP8150413

•

  Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 4 Available

  € 1,69

  Add to cart

4 Inspection cover, st.yellow AP8248781 No longer available

• AP8248781 Inspection cover, st.yellow
  No longer available
• AP8248766 Inspection cover, el.cyan
  No longer available
• AP8248504 Type appr.data cover, cyan
  No longer available
• AP8248444 Appr.data cov., cherry red
  No longer available
• AP8249319 Inspection cover, m.white
  No longer available
• AP8248648 Inspection cover, tw.cyan
  No longer available
• AP8248524 Type appr.data cover, brown
  No longer available
• AP8248633 Appr.data cov., lymph green
  No longer available
• AP8249280 Appr.data cov., m.red
  No longer available
• AP8248429 Appr.data cov., black varn.
  No longer available
• AP8249320 Inspection cover, c.cyan
  No longer available
• AP8249326 Inspection cover, n.blue
  No longer available

5 Screw Available 2B014101

•

  Screw Piaggio Group · 2B014101 Available

  € 3,78

  Add to cart

6 Key blank Available AP8104613

•

  Key blank without transponder Piaggio Group · AP8104613 Available

  € 19,66

  Add to cart

7 Screw Available AP8150137

•

  Screw M6x16 Piaggio Group · AP8150137 Available

  € 1,48

  Add to cart

8 Main switch - steering lock Available AP8201793

•

  Steering Lock Piaggio Group · AP8201793 Available

  € 96,00

  Add to cart

9 Gyújtáskapcsoló keret Available AP8220386

•

  Gasket Piaggio Group · AP8220386 Available

  € 8,74

  Add to cart
