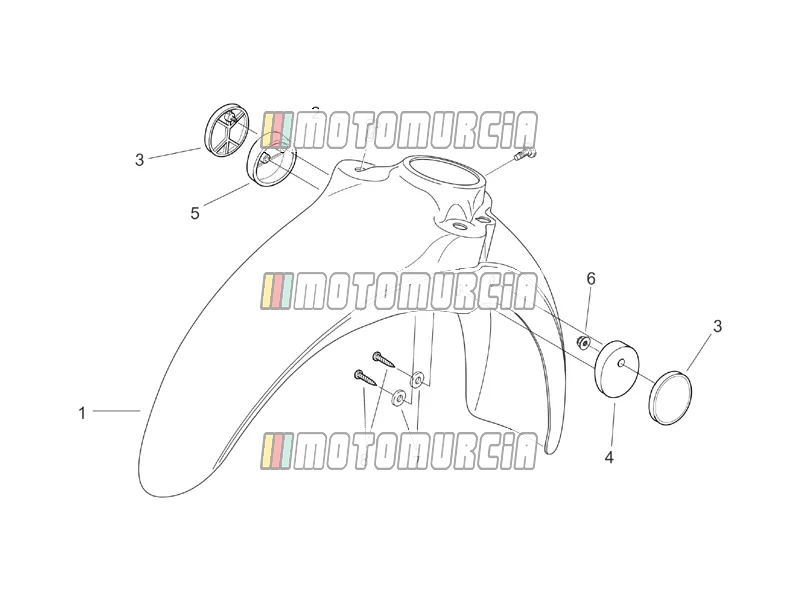

Exploded view — Frame » Front Body Vi - Front Mudguard

‹ Back to model

Aprilia Scarabeo 50 2T (Minarelli) 1999

Products

1 Front mudguard AP8226577 No longer available

AP8226577 Front mudguard
No longer available
AP8226579 Front mudguard
No longer available
AP8226575 Front mudguard
No longer available
AP8226518 Front mudguard
No longer available
AP8226517 Front mudguard
No longer available
AP8226533 Front mudguard
No longer available
AP8226525 Front mudguard, tw.azure
No longer available
AP8226511 Front mudguard
No longer available
AP8226581 Front mudguard, m.red
No longer available
AP8226519 Front mudguard, m.red
No longer available
AP8226580 Front mudguard
No longer available
AP8226534 Front mudguard, straw yellow
No longer available
AP8226462 Front mudguard, lymph green
No longer available
AP8226512 Front mudguard, cherry red
No longer available
AP8226516 Front mudguard
No longer available

2 Screw Available 2B014101

Screw Piaggio Group · 2B014101 · Quantity needed: 2 Available

€ 3,78

3 Reflector, orange Available AP8224163

AP8224163 Reflector, orange Quantity needed: 2

Reflector for plugging in, round, yellow Piaggio Group · Ap8224163 Available

€ 12,08

Reflector for plugging in, round, yellow Piaggio Group · Ap8224163 Available

€ 12,08

Reflector for plugging in, round, yellow Piaggio Group · AP8224163 Available

€ 12,08

4 Lh front reflector support AP8249135 No longer available

AP8249135 Lh front reflector support
No longer available

5 Rh front reflector support AP8249134 No longer available

AP8249134 Rh front reflector support
No longer available

6 Nut AP8152306 No longer available

AP8152306 Nut Quantity needed: 2
No longer available

7 Washer Available AP8150177

Shim Piaggio Group · AP8150177 · Quantity needed: 4 Available

€ 0,99

8 Screw Available AP8150444

Thread Screw 4x9 mm, stainless steel Piaggio Group · AP8150444 · Quantity needed: 4 Available

€ 1,48
