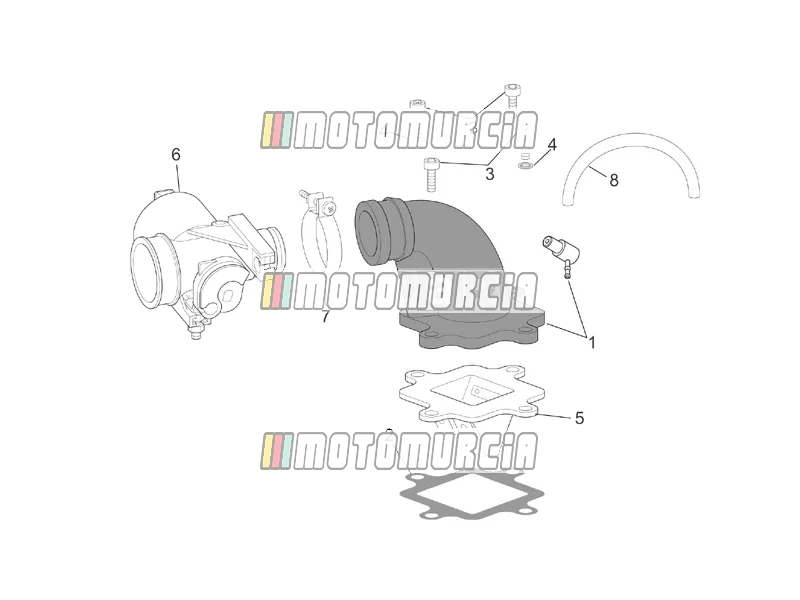

Exploded view — Engine » Fuel Supply

‹ Back to model

Aprilia Scarabeo 50 Ditech 2001

Products

1 Intake Manifold AP5RAR000212 No longer available

AP5RAR000212 Intake Manifold
No longer available

2 Intake manifold Gasket AP3AVA000063 No longer available

AP3AVA000063 Intake manifold Gasket
No longer available

3 Screw Available AP4ADN000014

Screw M6x20 Piaggio Group · AP4ADN000014 · Quantity needed: 4 Available

€ 3,25

4 Washer Available 016406

Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 4 Available

€ 1,79

5 Reed valve Available AP3AEA000002

Reed valve Piaggio Group · AP3AEA000002 Available

€ 33,02

6 Throttle body cpl. AP3ACA000687 No longer available

AP3ACA000687 Throttle body cpl.
No longer available

7 Clamp Backorder AP2FDN000201

Clamp Piaggio Group · AP2FDN000201 Backorder

€ 5,25

8 Oil pipe set AP5RAR000216 No longer available

AP5RAR000216 Oil pipe set
No longer available
