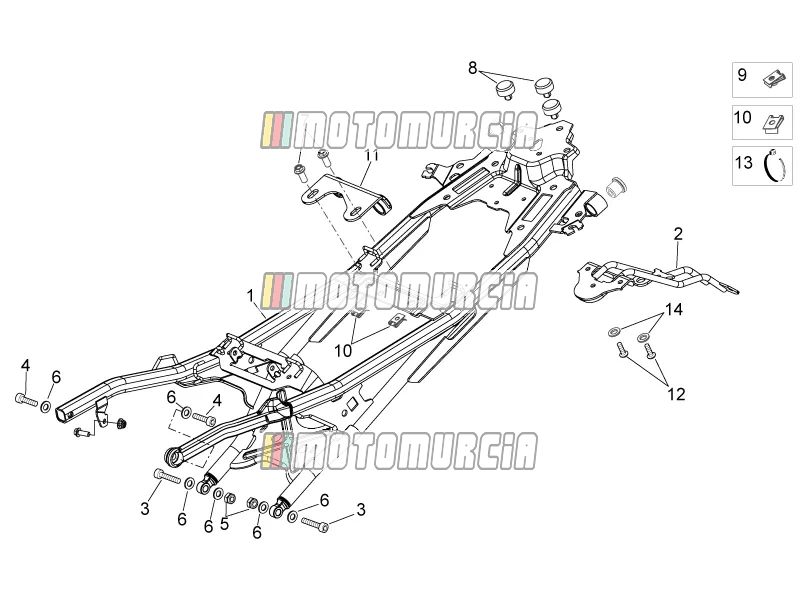

Exploded view — Saddle Support

Products

1 Saddle support 851538 No longer available

• 851538 Saddle support
  No longer available

2 Number plate holder support Available 851686

•

  Bracket Piaggio Group · 851686 Available

  € 120,88

  Add to cart

3 Screw Available 149104

•

  Allen screw M8x40 Piaggio Group · 149104 · Quantity needed: 2 Available

  € 1,75

  Add to cart

4 Screw (Right thread) Available AP8150107

•

  Screw M8x30 Piaggio Group · AP8150107 · Quantity needed: 2 Available

  € 2,35

  Add to cart

5 Nut Available AP8152350

•

  Standard nut Piaggio Group · AP8152350 · Quantity needed: 2 Available

  € 1,48

  Add to cart

6 Washer Available AP8150017

•

  Shim 8,4x16x1,6 mm Piaggio Group · AP8150017 · Quantity needed: 4 Available

  € 2,18

  Add to cart

7 Screw Available AP8152286

•

  Flanged Screw M8x20 Piaggio Group · AP8152286 · Quantity needed: 2 Available

  € 2,93

  Add to cart

8 Rubber spacer Available AP8220349

•

  Buffer Piaggio Group · AP8220349 · Quantity needed: 3 Available

  € 3,94

  Add to cart

9 Clip nuts (M5) Available AP8102375

•

  Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 3 Available

  € 2,47

  Add to cart

10 Clip nuts (M8) Available 575268

•

  Sheet nut Piaggio Group · 575268 · Quantity needed: 4 Available

  € 2,47

  Add to cart

11 Exhaust pipe support clamp Backorder 851789

•

  Bracket Piaggio Group · 851789 Backorder

  € 57,78

  Add to cart

12 Screw Available AP8152117

•

  Screw M6x25 Piaggio Group · AP8152117 · Quantity needed: 2 Available

  € 2,93

  Add to cart

13 Hose clamp 4.5X280 Available AP8120657

•

  Clamp Piaggio Group · AP8120657 · Quantity needed: 2 Available

  € 2,18

  Add to cart

14 Washer Available AP8150179

•

  Shim 6,6x18 mm Piaggio Group · AP8150179 Available

  € 1,48

  Add to cart
