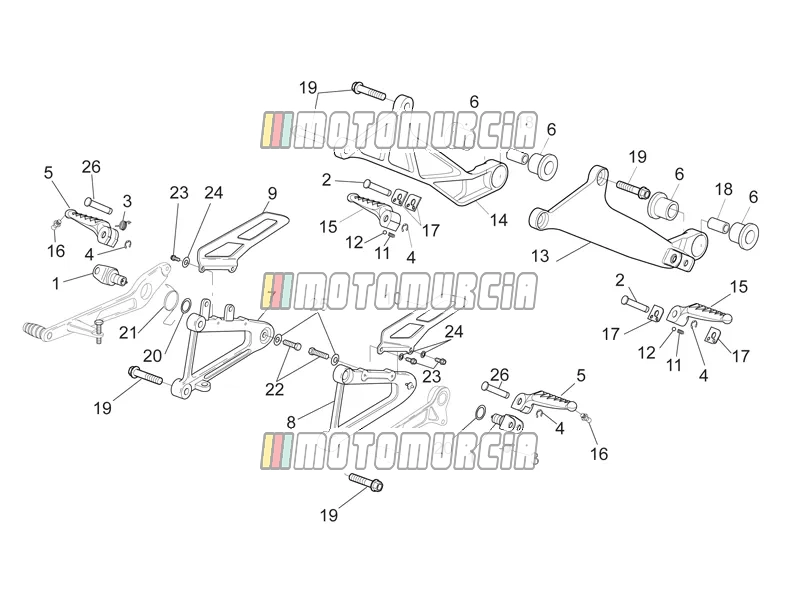

Exploded view — Foot Rests

Products

1 Brake/gear lever pin AP8121917 No longer available

• AP8121917 Brake/gear lever pin Quantity needed: 2
  No longer available

2 Footrest pin AP8121135 No longer available

• AP8121135 Footrest pin Quantity needed: 2
  No longer available

3 Footrest return spring Available AP8121224

•

  Spring Piaggio Group · AP8121224 · Quantity needed: 2 Available

  € 5,03

  Add to cart

4 Seeger Available AP8120573

•

  Locking Ring Piaggio Group · AP8120573 · Quantity needed: 4 Available

  € 0,99

  Add to cart

5 Front footrest, pair AP8146623 No longer available

• AP8146623 Front footrest, pair
  No longer available

6 Rubber exhaust Backorder AP8144071

•

  Buffer Piaggio Group · AP8144071 · Quantity needed: 4 Backorder

  € 14,31

  Add to cart

7 RH front footrest bracket AP8134593 No longer available

• AP8134593 RH front footrest bracket
  No longer available

8 LH front footrest bracket AP8134594 No longer available

• AP8134594 LH front footrest bracket
  No longer available

9 RH front footrest guard AP8146231 No longer available

• AP8146231 RH front footrest guard
  No longer available

10 LH front footrest guard AP8146232 No longer available

• AP8146232 LH front footrest guard
  No longer available

11 Spring Available AP8121133

•

  Spring Piaggio Group · AP8121133 · Quantity needed: 2 Available

  € 3,46

  Add to cart

12 Ball Available AP8101861

•

  Ball Ø 6,35 mm Piaggio Group · AP8101861 · Quantity needed: 2 Available

  € 0,99

  Add to cart

13 LH footrest support AP8146408 No longer available

• AP8146408 LH footrest support
  No longer available
• AP8134746 LH footrest support BLACK
  No longer available
• AP8146788 LH footrest support GREY
  No longer available

14 RH footrest support GREY AP8146561 No longer available

• AP8146561 RH footrest support GREY
  No longer available
• AP8134747 RH footrest support BLACK
  No longer available
• AP8146407 RH footrest support
  No longer available

15 Rear footrests, pair AP8146466KIT No longer available

• AP8146466KIT Rear footrests, pair
  No longer available

16 Footrest pin Backorder AP8134644

•

  Bolts Piaggio Group · AP8134644 · Quantity needed: 2 Backorder

  € 11,46

  Add to cart

17 Footrest plate Available AP8134451

•

  Plate Piaggio Group · AP8134451 · Quantity needed: 4 Available

  € 6,69

  Add to cart

18 Spacer * Available AP8121773

•

  Spacer Piaggio Group · AP8121773 · Quantity needed: 2 Available

  € 2,35

  Add to cart

19 Screw Available AP8152288

•

  Flanged Screw M8x30 Piaggio Group · AP8152288 · Quantity needed: 8 Available

  € 2,47

  Add to cart

20 Belleville spring Available AP8150446

•

  Cup Spring Piaggio Group · AP8150446 · Quantity needed: 2 Available

  € 0,99

  Add to cart

21 Rear brake lever spring AP8121410 No longer available

• AP8121410 Rear brake lever spring
  No longer available

22 Screw (M8x30) Backorder AP8150447

•

  Hexagon Screw M8x30 Piaggio Group · AP8150447 · Quantity needed: 2 Backorder

  € 1,44

  Add to cart

23 Screw Available AP8152273

•

  Flanged Screw M5x15 Piaggio Group · AP8152273 · Quantity needed: 4 Available

  € 2,18

  Add to cart

24 Curved spring washer 5,3x10x0,5 Available AP8150272

•

  Snap Ring 5,3x10x0,5 mm Piaggio Group · AP8150272 · Quantity needed: 4 Available

  € 4,09

  Add to cart

25 Washer (spring) Available AP8150376

•

  Shim 8,5x15x0,8 mm Piaggio Group · AP8150376 · Quantity needed: 2 Available

  € 2,04

  Add to cart

26 Footrest pin AP8121918 No longer available

• AP8121918 Footrest pin Quantity needed: 2
  No longer available
