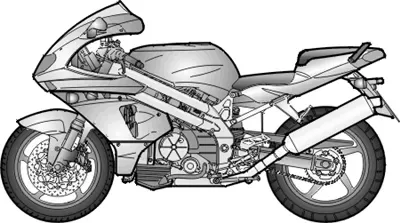

Original spare parts catalog for the Aprilia SL 1000 Falco (2003) - find OEM parts for Aprilia SL 1000

Version: SL 1000 Falco

Year: 2003

Select other model

Original spare parts catalog for the Aprilia SL 1000 Falco (2003) - find OEM parts for Aprilia SL 1000

Looking for an other year or version of the Aprilia SL 1000?

Select other model

Aprilia SL 1000 2003 exploded views

Use the buttons below to filter drawings by group

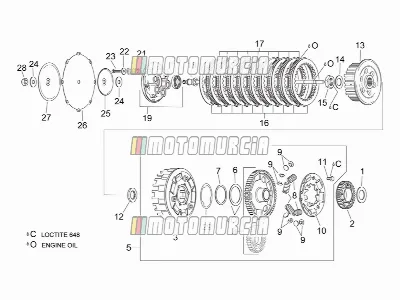

Clutch Aprilia Clutch AP0627260 washer AP0634470 oil pump gear z=42 AP0259530 clutch drum AP0295780 primary drive gear AP0295790 primary transm. AP0239390 spring washer 68x52x1,2 AP0627140 washer AP0239370 spring AP0247970 bush AP0259580 springholder plate AP0641595 screw AP0627220 washer AP0259520 clutch hub AP0245830 spring washer 24,5x40 AP0242950 nut m24x1,5 AP8106633 steel clutch discs kit AP8106634 lined clutch discs 9 pc. AP0220458 clutch shaft cpl. AP0259519 springholder plate cpl. AP0632135 bearing AP0239480 clutch spring AP0244020 washer AP0240036 hex screw AP0227180 washer AP0627230 support disc 2R000307 diaphragm AP0627281 pressure plate AP0442130 nut (m12) AP0627910 thrust washer Clutch
Clutch Pump Aprilia Clutch Pump AP8134394 oil tank plate AP8113004 washer gasket AP8113003 oil pipe screw AP8113762 bored screw AP8113230 bleed valve cap AP8113761 air bleed valve AP8113758 clutch lever AP8113759 u-bolt 854604 clutch master cylinder AP8113891 clutch pipe AP8213057 joint 2B003040 lever pin cpl. AP8106381 clutch command cylinder 890509 rubber pipe AP8101595 clamp AP8152273 screw AP8152306 nut AP8152277 screw (6x12) AP8124398 clutch switch+harness AP8113553 brake fluid reservoir cover AP8106382 oil tank AP0241821 screw AP8133522 guard AP8106935 gasket Clutch Pump
Cooling System Aprilia Cooling System AP8102431 3-way union AP8121837 aluminium washer AP8104097 clamp AP8102677 three-way manifold AP8102732 clamp AP8144076 cooler-manifold pipe AP8120979 engine-manifold pipe AP8101573 clamp AP8144073 thermostat-pump pipe AP8102773 thermostat-cooler pipe AP8144308 manifold breather pipe AP8144309 manifold-union breather pipe AP8144307 union-manifold breather pipe AP8102765 clamp AP8124929 thermostat AP8144075 thermostat-engine pipe AP8112939 thermal switch 95-90 AP8101927 clamp AP8120981 water hose (coolers) AP8102764 clamp AP8201169 clamp Cooling System
Crankcases I Aprilia Crankcases I AP0296961 crankcase assy AP0632010 pin m8x12 AP0929500 pin 10x8 AP0229301 pin m6x50 AP0929930 pin AP0229385 pin AP0233748 bushing half-shell, yellow AP0233746 bushing half-shell, red AP0233745 bushing half-shell, blue AP0233743 bushing half-shell, yellow AP0233741 bushing half-shell, red AP0233740 bushing half-shell, blue AP0233711 bushing half-shell, blue AP0233822 bushing half-shell, yellow AP0233820 bushing half-shell, red AP0929650 pin 5x10 Crankcases I
Crankcases Ii Aprilia Crankcases Ii AP0241580 stud bolt AP0840880 screw AP0650500 o-ring 59,52x2,62 AP0210416 oil filter cover grey AP0256187 oil filter (74 mm) AP0241854 contact screw 2R000498 oil drain plug (magnetic) AP0230415 gasket ring AP0241081 screw (m6x10) AP0268757 jet 75 AP0932585 bearing AP0241531 short head screw AP0832144 bearing AP0232625 bearing 6003 AP0241501 screw AP0840861 screw (m6x25) AP0632124 angular bearing 3206 AP0932428 bearing AP0932335 bearing AP0256497 oil strainer AP0656230 oil sprayer pipe AP0650337 gasket - crankcase AP0850050 oil seal AP0250450 oil seal AP0650320 oil seal AP0236370 chain guide AP0259500 clutch disengagement flange AP0241821 screw AP0241261 screw Crankcases Ii
Crankshaft I Aprilia Crankshaft I AP0295663 crankshaft AP0217346 connecting rod AP0440260 screw AP0640400 connecting rod screw AP0246570 woodruff key AP0946015 transmission key 6x9 AP0295765 timing system gear cpl. AP0219365 ext.wheel side counterweight AP0295770 balance shaft gear cpl. AP0245860 spring washer AP0295780 primary drive gear AP0219360 int.wheel side counterweight AP0245840 spring washer AP0242940 nut m33x1,5 AP0220374 lower balance shaft AP0242874 nut AP0627200 washer AP0634610 water pump gear AP0634500 idle gear AP0929930 pin AP0219350 clutch side counterweight AP0295760 timing system gear cpl. AP0233722 bushing,blue 42x45x19 AP0233723 bushing,yellow 42x45x19 AP0233721 bushing,red 42x45x19 Crankshaft I
Crankshaft Ii Aprilia Crankshaft Ii AP0295663 crankshaft AP0684310 piston assy 96,944 mm (a) AP0684311 piston assy 96,956 mm (b) AP0295858 piston ring set AP0613417 cylinder kit AP0216222 piston pin AP0245436 stop ring 22 AP0650390 gasket - cylinder base AP0929650 pin 5x10 AP0236253 chain tensioner AP0640455 cover m16x1,5 AP0430622 gasket ring AP0940637 screw Crankshaft Ii
Cylinder Head And Valves Aprilia Cylinder Head And Valves AP0613406 front cylinder head cpl. AP0253926 exhaust valve guide AP0253921 valve AP0241821 screw AP0232210 pin 6x8 AP0613408 rear cylinder head cpl. AP0941935 self-tap screw m5x12 AP0274060 camshaft sensor cpl. AP0240331 screw AP0927863 washer AP0254027 valve (ex) AP0254011 valve (in 36 mm) AP0253965 valve spring plate AP0230510 valve stem seal AP0239520 ext. valve spring (ex) AP0239510 int. valve spring (in) AP0253957 valve spring plate AP0253645 valve half-cone AP0251090 cable protection AP0253990 valve lifter bucket AP0927945 washer AP0840880 screw Cylinder Head And Valves
Engine Aprilia Engine AP8106758 engine AP8106583 engine 990 AP8106759 engine AP8106868 engine AP8106869 engine 990 AP8106519 sprocket cover, grey AP8201727 black cable guide AP8150220 screw AP8121354 gearbox connecting rod AP8121353 gearbox linkage rod AP8110053 left ball joint m6 AP8210007 rh ball joint m6 AP8152279 screw AP8150430 nut AP8152138 nut AP8150026 nut AP8120912 lever rubber AP8106420 gear lever AP8120116 3-way union AP8120446 clamp AP8104251 anti-return valve AP8144015 oil pipe 6x12 AP8144316 brake hose protection Engine
Exhaust Pipe Aprilia Exhaust Pipe AP8121170 spring AP8119414 exhaust gasket AP8119429 front. exhaust pipe AP8119430 rear exhaust pipe AP8119428 central exhaust pipe AP8119720 rh silencer AP8119634 rh silencer AP8119431 rh silencer AP8119583 rh silencer AP8119619 rh silencer AP8119585 rh silencer AP8119718 rh silencer AP8119635 lh silencer AP8119584 lh silencer AP8119443 lh silencer AP8119721 lh silencer AP8119620 lh silencer AP8119719 lh silencer AP8119586 lh silencer 2B004511 nut AP8150277 screw AP8150018 washer AP8152300 nut AP8134378 silencer fixing bush 127927 washer gasket AP8150488 co intake screw Exhaust Pipe
Front Cylinder Timing System Aprilia Front Cylinder Timing System AP0240400 screw AP0940590 hex screw m8x20 (m8x20) AP0236320 chain guide AP0211766 bearings support plate AP0236300 chain guide AP0236310 chain guide AP0627190 washer AP0632161 roller cage 16x22x10 AP0295765 timing system gear cpl. AP0845030 spring washer b8 AP0940631 hex screw AP0220702 camshaft (exhaust) AP0220380 camshaft (intake) AP0634732 timing system gear AP0634737 timing system gear AP0840371 screw (m6x11,5) AP0247980 bush 8,2x12x25 AP0240960 spacer screw AP0297957 timing chain Front Cylinder Timing System
Gear Box Aprilia Gear Box AP0220390 primary gear shaft assy. AP0634695 5th pinion gear AP0627120 washer AP0245815 seeger AP0634660 3rd-4th pinion gear AP0627132 washer AP0632070 roller cage 25x29x13 AP0634710 6th pinion gear AP0634640 2nd pinion gear AP0220400 driven shaft AP0634655 2nd wheel gear AP0634720 6th wheel gear AP0634670 4th wheel gear AP0634680 3rd wheel gear AP0634700 5th wheel gear AP0427106 washer AP0634620 1st wheel gear AP0827110 washer AP0281222 gear box cpl.6 speed Gear Box
Gear Box Selector Aprilia Gear Box Selector AP0620235 gear shaft+ratchet gear cpl. AP0258383 fork shaft AP0258361 fork AP0258351 fork AP0258376 fork AP0258310 index washer AP0932335 bearing AP0258326 shift cam AP0840880 screw AP0244211 washer AP0227716 washer AP0248375 index assy. lever AP0239247 index spring AP0229385 pin AP0239430 spring AP0239422 pin spring AP0247940 bush AP0245440 circlip AP0832144 bearing AP0227442 washer AP0945665 seeger AP0236365 rubbered pinion AP0239450 spring washer 34x16,3 AP0627210 washer AP0940741 hex screw AP0620235 gear shaft+ratchet gear cpl. AP0227714 washer Gear Box Selector
Oil Pump Aprilia Oil Pump AP0220423 oil pump shaft assy. 2R000229 pin 4x15,8 AP0256681 internal and external rotor 2R000306 pin 4x25,8 2R000317 oil pressing pump casing AP0634470 oil pump gear z=42 AP0956275 internal and external rotor 2R000311 oil pump cover AP0256510 pressure adj. piston AP0239449 spring AP0241650 valve closer screw m12x1,5 AP0241821 screw 2R000080 pin AP0634488 oil pump gear AP0245330 seeger Oil Pump
Oil Radiator Aprilia Oil Radiator 598839 screw AP8150015 washer AP8102907 oil cooler cpl. AP8120030 rubber spacer AP8221023 spacer AP8102731 2 - clamp AP8150137 screw AP8152299 nut AP8144061 silent-block AP8106388 oil pipe AP8152279 screw AP8106389 oil pipe 12x19 AP8102349 clamp AP8144008 o-ring Oil Radiator

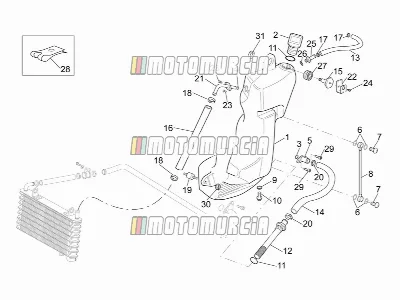

Oil Tank Aprilia Oil Tank AP8138792 oil tank, grey AP8102618 cap oil filler AP9150469 o-ring 3056 AP8144008 o-ring AP8106387 oil pipe AP8113004 washer gasket AP8121409 oil pipe screw AP8144275 oil level pipe AP8121862 washer AP8152285 screw AP8120190 o-ring AP8104049 oil filter cpl. AP8144015 oil pipe 6x12 AP8144148 oil pipe AP8121387 oil tank fixing plate AP8106389 oil pipe 12x19 AP8120446 clamp AP8102349 clamp AP8144061 silent-block AP8102786 clamp AP8106588 oil inlet pipe AP8134603 lh fairing fixing plate AP8152277 screw (6x12) AP8150050 screw (m5x16) AP8102626 2-way union AP8152184 washer AP8220369 rubber spacer AP8102375 clip nuts (m5) AP8150137 screw AP8152299 nut AP8150018 washer Oil Tank

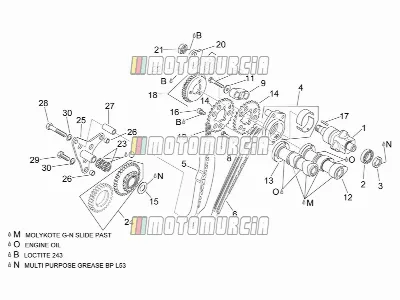

Rear Cylinder Timing System Aprilia Rear Cylinder Timing System AP0220440 upper balance shaft AP0832360 bearing AP0250130 oil seal AP0211681 bushing plate cpl. AP0236300 chain guide AP0236310 chain guide AP0940560 hex screw AP0244211 washer AP0236380 chain guide AP0941121 hex screw AP0827305 washer AP0220702 camshaft (exhaust) AP0220380 camshaft (intake) AP0634732 timing system gear AP0627190 washer AP0840371 screw (m6x11,5) AP0246055 woodruff key (3x3,7) AP0295775 upper balance shaft gear cpl. AP0297957 timing chain AP0219340 counterweight AP0942570 nut m14 AP0840391 screw AP0632161 roller cage 16x22x10 AP0295760 timing system gear cpl. AP0211756 roller cage plate AP0929500 pin 10x8 AP0247980 bush 8,2x12x25 AP0940631 hex screw AP0240275 hex screw AP0845030 spring washer b8 Rear Cylinder Timing System

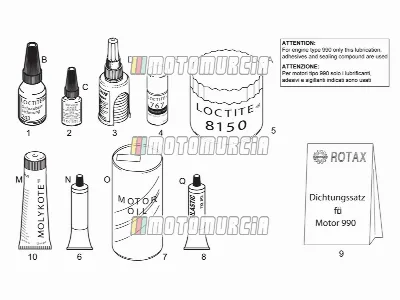

Sealing And Lubricating Agents Aprilia Sealing And Lubricating Agents AP0897651 loctite (blue) 243 10cc. AP0899788 loctite (green) 648 5gr. AP0899784 loctite (orange) 574 AP0297434 loctite anti seize 10 gr. AP8116067 loctite 8150 0000000 tyre AP0297386 silastic 732 rtv 100 gr. AP0296170 gasket set - engine AP0297433 molykote g-n 50gr. Sealing And Lubricating Agents

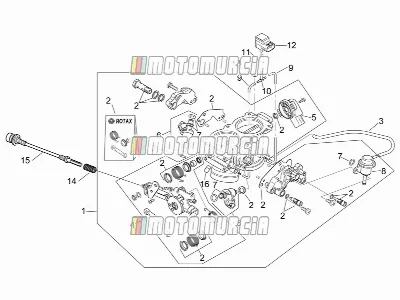

Throttle Body Aprilia Throttle Body AP0295696 throttle body cpl. AP0281241 throttle body revision kit AP0860662 sensor pipe 110mm AP0661011 throttle cable supp.plate cpl. AP0274030 throttle body sensor AP0274010 injection valve cpl. AP0296180 gasket set AP0274020 fuel pressure regulator AP0960111 sensor pipe 95 mm AP0874320 3-way union AP0960121 sensor pipe 30 mm AP0274050 pressure sensor AP8120965 o-ring AP0268010 spring AP8114415 min.eng.spd adj.cable AP0660020 cap Throttle Body

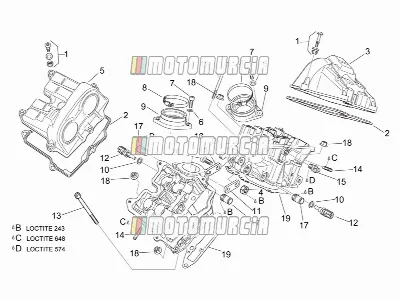

Valves Cover Aprilia Valves Cover AP0241625 spacer screw cpl. AP0650345 gasket - head cover AP0211666 rear valves cover AP0242091 nut AP0211663 front valves cover AP0250311 washer AP0240081 screw (m8x25) AP0251830 clamp AP0267151 intake manifold AP0250640 gasket ring AP0251100 plate AP0274040 temp. sensor AP0241601 screw AP0241560 stud bolt AP0922242 angular union AP0240170 cover m18x1,5 AP0224090 pipe AP0242851 nut AP0650210 cylinder head gasket AP0640581 screw (m10x40) Valves Cover
Valves Pads Aprilia Valves Pads AP0254032 pad 2,425 AP0254040 pad 2,825 AP0253988 pad 3,00 AP0254042 pad 2,925 AP0253976 pad 2,4 AP0254033 pad 2,475 AP0253983 pad 2,75 AP0254031 pad 2,375 AP0254036 pad 2,625 AP0254030 pad 2,325 AP0253981 pad 2,65 AP0253982 pad 2,7 AP0253986 pad 2,9 AP0254038 pad 2,725 AP0253985 pad 2,85 AP0253978 pad 2,5 AP0253984 pad 2,8 AP0253975 pad 2,35 AP0254037 pad 2,675 AP0253987 pad 2,95 AP0253974 pad 2,3 AP0254039 pad 2,775 AP0253979 pad 2,55 AP0254035 pad 2,575 AP0254034 pad 2,525 AP0254041 pad 2,875 AP0253977 pad 2,45 AP0254043 pad 2,975 AP0253980 pad 2,6 Valves Pads

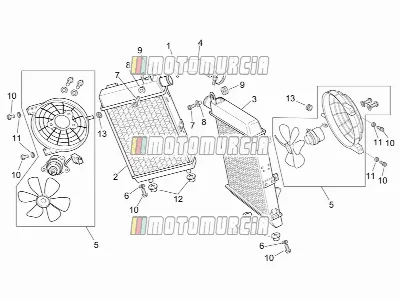

Water Coolers Aprilia Water Coolers AP8104097 clamp AP8102952 water cooler, rh black AP8102951 water cooler, lh black AP8120981 water hose (coolers) AP8124855 cooling fan AP8152184 washer AP8152279 screw AP8221023 spacer AP8112600 rubber spacer AP8152277 screw (6x12) AP8150026 nut AP8101372 damper AP8120030 rubber spacer Water Coolers

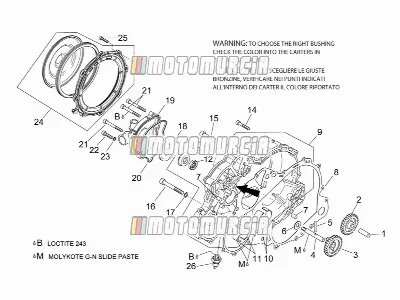

Water Pump Aprilia Water Pump AP0929930 pin AP0634500 idle gear AP0634490 water pump gear AP0220412 water pump shaft 2R000080 pin AP0227685 washer AP0632010 pin m8x12 AP0650330 gasket - clutch cover AP0610151 clutch cover AP0233790 bushing half-shell, blue AP0233791 bushing half-shell, red AP0233793 bushing half-shell, yellow AP0233780 bearing half-shell 20x24x16 AP0650315 oil seal AP0650370 water pump mechanical seal AP0241811 screw AP0840681 screw (m8x40) AP0841841 screw AP0950141 gasket ring 2R000112 impeller AP0222513 water pump casing AP0650240 gasket AP0240331 screw AP0840861 screw (m6x25) AP0230415 gasket ring AP0211778 diaphragm disc cpl. AP0441341 screw 1A024308R minimum oil pressure sensor Water Pump

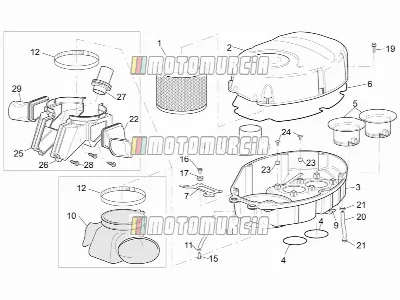

Air Box Aprilia Air Box AP8102610 air filter AP8149048 upper side filter case AP8149667 lower side filter case AP8149669 lower side filter case AP8149723 lower side filter case AP8144063 o-ring AP8106395 intake opening AP8120615 seal air filter box AP8134595 filter case front. supp. AP8134493 reduction diaphragm AP8134399 reduction diaphragm AP8134739 reduction diaphragm AP8134437 plate AP8144085 intake hose AP8102377 clamp AP8102763 clamp AP8101595 clamp AP8144038 fuel pipe 6x10 AP8120876 plug AP8121731 t bush * AP8120030 rubber spacer 598839 screw AP8152273 screw AP8120987 pipe 9x14 AP8102766 clamp AP8144411 intake hose lh AP8120253 spacer AP8152246 screw AP8106812 intake manifold right AP8106813 intake manifold left AP8144383 choke hold AP8221242 screw AP8144410 intake hose rh Air Box
Central Body - Fairings Aprilia Central Body - Fairings AP8149656 rh lat.fairing, black AP8148646 rh lat.fairing, black c. AP8168963 rh lat.fairing, bronze AP8168957 rh lat.fairing, black AP8148633 rh lat.fairing, red fire AP8158764 rh lat.fairing, black AP8148647 lh lat.fairing, black c. AP8168964 lh lat.fairing, bronze AP8168958 lh lat.fairing, black AP8149657 lh lat.fairing, black AP8148634 lh lat.fairing, red fire AP8158765 lh lat.fairing, black AP8139693 rh internal fairing, black AP8139694 lh internal fairing, black AP8102375 clip nuts (m5) AP8150444 screw AP8152339 screw Central Body - Fairings
Central Stand Aprilia Central Stand 00N05700601 switch, side stand AP8150015 washer AP8152279 screw AP8150292 washer AP8152320 screw AP8221197 outer spring AP8121014 coil pull spring AP8121429 central stand fixing screw AP8121375 central stand fixing screw AP8102524 stand spring protection AP8134373 stand plate AP8134665 stand plate AP8150480 low self-locking nut m10x1,25 AP8152001 nut AP8146010 stand cpl. AP8146354 stand cpl. AP8146364 side stand AP8146342 side stand Central Stand

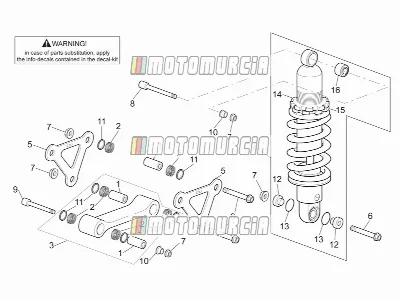

Connecting Rod - Rear Shock Abs. Aprilia Connecting Rod - Rear Shock Abs. AP8135924 double connecting rod pin l40 AP8110065 needle bearing AP8146680 single conrod comp. AP8123688 shock absorber AP8135916 double conrod AP8152322 screw w/ flange m10x65 AP8152301 nut AP8150458 screw (m10x63) AP8150457 screw (m10x74) AP8121155 t bush * AP8110068 oil seal AP8123870 spacer AP8123860 o-ring AP8121437 return ring nut AP8121438 ring nut AP8144314 silent-block Connecting Rod - Rear Shock Abs.

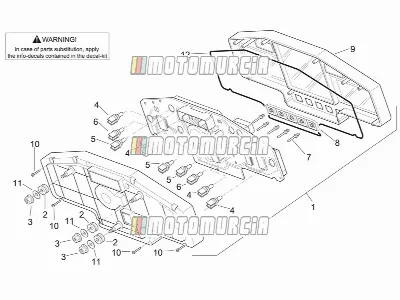

Dashboard Aprilia Dashboard AP8127025 dashboard AP8112599 rubber spacer * AP8152299 nut AP8124569 lampholder, complete AP8124570 lampholder, complete AP8124571 lampholder, complete 12v-3w AP8124575 dashboard piston AP8124574 dashboard rubber AP8124573 up. dashboard cover AP8124572 screw AP8150014 washer AP8144415 gasket Dashboard

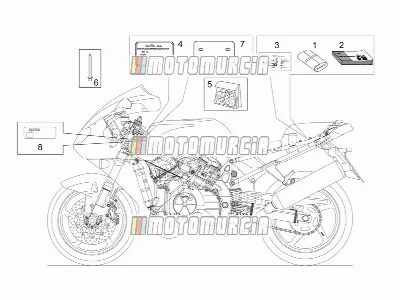

Decal And Plate Set Aprilia Decal And Plate Set AP8102622 tools kit AP8104176 operator's handbook AP8104127 operator's handbook-p-e-uk- AP8104125 operator's handbook-nl-dk-sf- AP8104174 operator's handbook AP8104126 operator's handbook-gr-j-uk- AP8102721 operator's handbook-i-f-d- AP8157650 tamperproof dataplate AP8147068 constructor dataplate AP8157648 constructor dataplate AP8167542 constructor dataplate AP8167757 constructor dataplate AP8157831 constructor dataplate AP8157649 constructor dataplate AP8157838 constructor dataplate AP8157833 sticker kit AP8167216 sticker kit AP8157916 sticker kit AP8167957 sticker kit AP8167337 sticker kit AP8177745 sticker kit AP8167963 sticker kit AP8167956 sticker kit AP8167165 sticker kit AP8157971 sticker kit AP8167964 sticker kit AP8157646 sticker kit AP8167397 sticker kit AP8157617 sticker kit AP8177744 sticker kit AP8177844 sticker kit AP8177743 sticker kit AP8157970 sticker kit AP8102728 rivet 3x11 AP8149311 dataplate frame AP8157821 ece dataplate Decal And Plate Set
Expansion Tank Aprilia Expansion Tank AP8138781 expansion tank AP8120988 filler cap AP8102615 cover AP8144032 pump-inlet pipe AP8101927 clamp AP8220191 gasket AP8104124 expansion tank plug 1R000162 level pipe AP8120446 clamp 896544 fuel pipe 5,5x10 (5,5x10) AP8101595 clamp AP8102738 hose clamp AP8152279 screw AP8152273 screw AP8120531 rubber w/ insert AP8120030 rubber spacer AP8221023 spacer Expansion Tank

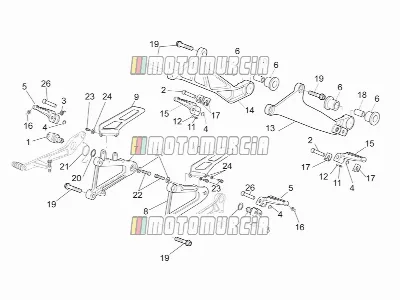

Foot Rests Aprilia Foot Rests AP8121917 brake/gear lever pin AP8121135 footrest pin AP8121224 footrest return spring AP8120573 seeger AP8146623 front footrest, pair AP8144071 rubber exhaust AP8134593 rh front footrest bracket AP8134594 lh front footrest bracket AP8146231 rh front footrest guard AP8146232 lh front footrest guard AP8121133 spring AP8101861 ball AP8146408 lh footrest support AP8134746 lh footrest support black AP8146788 lh footrest support grey AP8146407 rh footrest support AP8134747 rh footrest support black AP8146561 rh footrest support grey AP8146466KIT rear footrests, pair AP8134644 footrest pin AP8134451 footrest plate AP8121773 spacer * AP8152288 screw AP8150446 belleville spring AP8121410 rear brake lever spring AP8150447 screw (m8x30) AP8152273 screw AP8150272 curved spring washer 5,3x10x0,5 AP8150376 washer (spring) AP8121918 footrest pin Foot Rests

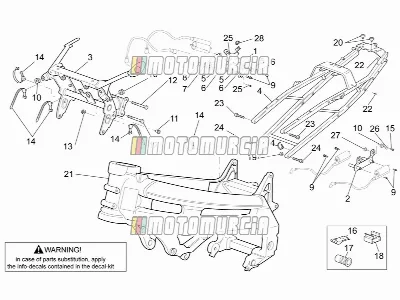

Frame I Aprilia Frame I AP8134503 coil support, rh AP8134504 coil support, lh AP8146001 instrum.holder frame AP8146124 saddle support AP8146468 saddle support black AP8146573 saddle support grey AP8120405 damper AP8121736 10 - spacer AP8150012 10 - washer AP8150451 nut 855799 screw AP8120030 rubber spacer AP8102902 hex threaded insert AP8150314 screw AP8152299 nut AP8201539 clamp AP8152280 screw 254485 clip nuts (m6) AP8102544 threaded rivet m6 AP8152313 captive nut m6 AP8152301 nut AP8220349 rubber spacer AP8146559 frame AP8146797 frame AP8146796 frame AP8146349 frame AP8146004 frame AP8146570 frame AP8121882 cable-guide AP8150469 2 - screw (m10x30) AP8150329 screw 598839 screw AP8121129 t bush * AP8121075 spacer AP8121428 seeger Frame I

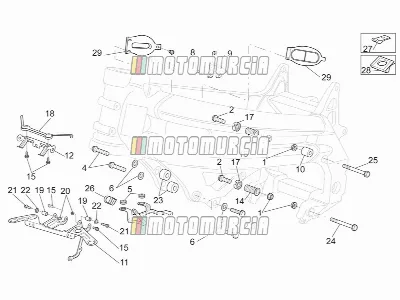

Frame Ii Aprilia Frame Ii AP8152301 nut AP8152317 screw w/ flange m10x100 AP8152318 screw AP8152325 screw AP8120030 rubber spacer AP8150292 washer AP8134557 expansion tank support AP8152040 screw AP8134501 fairing fixing plate AP8121998 upper engine spacer AP8134596 lower water cooler support AP8134380 water cooler upper support AP8152246 screw AP8121997 lower adjustment bush 598839 screw AP8121996 upper adjustment bush AP8121995 eng.connect.elem.ring nut AP8134505 ducts support AP8121313 conical bush AP8150430 nut AP8152281 screw AP8152181 washer AP8121254 lh front engine spacer AP8152316 screw w/ flange m10x75 AP8152315 screw w/ flange m10x110 AP8201727 black cable guide AP8102375 clip nuts (m5) 254485 clip nuts (m6) AP8144409 union gasket Frame Ii

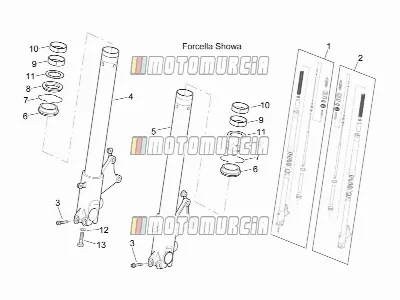

Fron Fork Ii Aprilia Fron Fork Ii AP8123637 rh hub cpl. AP8163146 rh hub cpl., gold AP8123638 lh hub cpl. AP8163147 lh hub cpl., gold AP8152290 screw AP8123822 hub+rh fork leg AP8123823 hub+lh fork leg AP8123824 fork dust seal AP8123806 circlip AP8123825 fork oil seal 890397 spring guide bush 890398 bush 856043 ring AP8123811 washer AP8123812 screw m10x1,5 Fron Fork Ii
Front Body - Duct Aprilia Front Body - Duct AP8201539 clamp AP8139364 lh int.duct, black AP8139363 rh int.duct, black AP8124300 air temp. sensor AP8139633 air intake grid, lh AP8139634 air intake grid, rh AP8144258 lh duct gasket AP8104075 rh duct gasket AP8102375 clip nuts (m5) AP8150423 10 - screw AP8152298 screw AP8150270 screw (4,2 x 209) Front Body - Duct

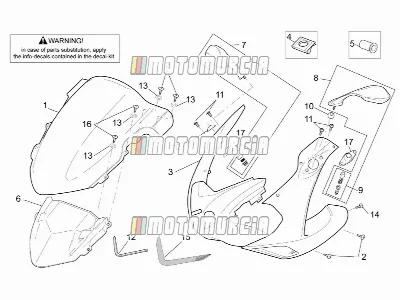

Front Body - Front Fairing Aprilia Front Body - Front Fairing AP8139351 windshield AP8149036 windshield AP8158783 windshield AP8152298 screw AP8158763 front fairing, red/black AP8168956 front fairing, red/black AP8168962 front fairing, black/bronze AP8168968 front fairing, black/green AP8148632 front fairing, red fire AP8149655 front fairing, f.yellow AP8148645 front fairing, black c. AP8158833 front fairing, grey/black AP8149764 front fairing, m.grey AP8149789 front fairing, blue AP8102375 clip nuts (m5) AP8120531 rubber w/ insert AP8139362 front fairing-dashboard lockup AP8102632 mirror right AP8102633 mirror left AP8104155 mirror insertion kit AP8102341 mirror joint cup AP8152246 screw AP8144290 gasket AP8120622 8 - front dust cover ring 2B014101 screw AP8157716 front fairing glass decal AP8152338 screw AP8104160 spheric support Front Body - Front Fairing
Front Body - Front Mudguard Aprilia Front Body - Front Mudguard AP8126890 front mudguard, yellow AP8126915 front mudguard AP8126907 front mudguard, grey AP8156080 front mudguard (red) AP8156082 front mudguard AP8156083 front mudguard AP8126797 front mudguard, red fire AP8126989 front mudguard AP8126852 front mudguard, red fire AP8156081 front mudguard (red) AP8126906 front mudguard, grey AP8126988 front mudguard AP8156084 front mudguard, green AP8126857 front mudguard AP8126798 front mudguard AP8156085 front mudguard, green AP8126914 front mudguard AP8126891 front mudguard, yellow AP8152246 screw AP8117129 spoiler heat protection AP8152339 screw AP8149666 lower fairing, grey AP8158773 lower fairing, black AP8139367 cooler spoiler, grey AP8148551 front fairing lower lockup AP8152277 screw (6x12) AP8124719 reflector, amber AP8150204 nut AP8150158 washer (4,3x9x0,8) Front Body - Front Mudguard

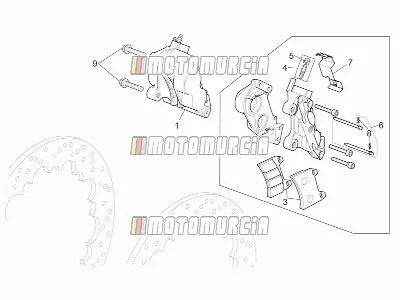

Front Brake Caliper Aprilia Front Brake Caliper AP8113892 rh front brake caliper, gold AP8113893 lh front brake caliper, gold AP8113754 brake pads AP8213193 air bleed valve AP8113070 bleed valve cap AP8113721 pin+split pin AP8113722 spring AP8113723 split pin AP8152336 screw w/ flange m10x1,25 Front Brake Caliper
Front Fork I Aprilia Front Fork I AP8123637 rh hub cpl. AP8163146 rh hub cpl., gold AP8163147 lh hub cpl., gold AP8123638 lh hub cpl. AP8123829 sleeve AP8163189 sleeve, gold AP8123810 plunger attachment bush AP8123831 spring AP8123832 preload tube cpl. AP8123835 spacer AP8123836 washer AP8123830 plunger, complete AP8123816 washer AP8123815 ring AP8123833 sleeve plug cpl. AP8123834 o-ring AP8123819 o-ring AP8123820 o-ring AP8123821 stop ring Front Fork I

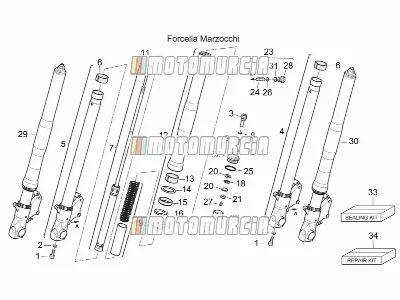

Front Fork Iii Aprilia Front Fork Iii AP8163174 screw m12x40 AP8163175 seal washer AP8134863 pin AP8163176 hub+lh fork leg AP8163177 hub+rh fork leg AP8163128 bush AP8163178 plunger, complete AP8163143 o-ring AP8150498 dowel AP8163142 o-ring AP8163144 nut m12x1,25 AP8163250 sleeve cpl., gold AP8163179 sleeve cpl., black AP8163131 bush GU01530590 ring AP8163133 fork oil seal AP8163134 seeger 897990 dust cover AP8125895 bearing AP8163180 springs+tube AP8121582 fifth wheel AP8163145 nut m17x1 AP8163141 washer AP8163187 cover registro cpl. AP8163186 pin AP8163138 o-ring AP8163185 o-ring AP8150497 dowel AP8163184 cover registro AP8163181 rh hub cpl., black AP8163251 rh hub cpl., gold AP8163182 lh hub cpl., black AP8163252 lh hub cpl., gold AP8163183 o-ring AP8163137 sleeve plug cpl. AP8163172 front fork revision kit AP8163173 repairing kit Front Fork Iii

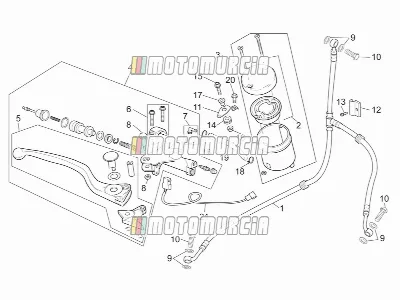

Front Master Cilinder Aprilia Front Master Cilinder AP8113896 brake hose AP8113598 pil brake tank plug AP8113499 brake oil tank AP8113905 brake hydraulic pump 854601 brake lever AP8113717 u-bolt AP8213057 joint 2B003040 lever pin cpl. AP8113004 washer gasket AP8113003 oil pipe screw AP8134383 oil tank plate AP8134438 brake hose hanger AP8152272 screw AP8120030 rubber spacer AP8152280 screw AP8152299 nut AP8221023 spacer AP8101595 clamp 890509 rubber pipe AP8152277 screw (6x12) AP8124288 brake light switch Front Master Cilinder

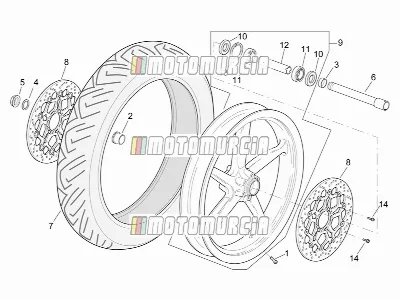

Front Wheel Aprilia Front Wheel AP8101744 tubeless tyre valve AP8125728 front rh whe.ou.spacer AP8125737 front lh whe.ou.spacer AP8152323 washer AP8152335 wheel spindle nut 85263R front wheel spindle front 0000000 tyre GU05613335 brake disc B044207 brake disc AP8108675 front wheel, grey AP8125773 gasket ring 30x47x7 AP8125777 bearing AP8125778 internal spacer AP8125779 seeger AP8152286 screw Front Wheel

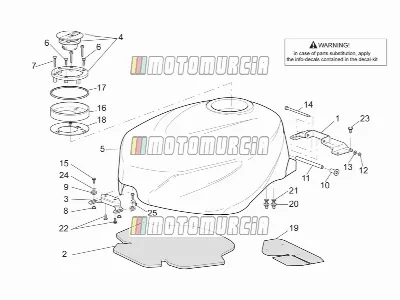

Fuel Tank Aprilia Fuel Tank AP8134500 tank support AP8117127 f.tank acoustic insul. panel AP8121386 tank fixing support AP8104528 fuel filler cap AP8144312 fuel filler cap AP8104262 fuel filler cap AP8104529 fuel filler cap AP8149788 fuel tank (blue) AP8148644 fuel tank, black c. AP8168967 fuel tank, green/black AP8148506 fuel tank (red) AP8149654 fuel tank, flashy yellow AP8168961 fuel tank, black/bronze AP8158762 fuel tank, red/black AP8158832 fuel tank, grey/black AP8149763 fuel tank (grey) AP8168955 fuel tank, red/black AP8150454 screw (m5x16) AP8150453 screw (m5x30) AP8221023 spacer AP8120030 rubber spacer AP8144062 damper AP8134419 fuel tank bush AP8152299 nut AP8150014 washer AP8150459 hex screw m6x90 (m6x90) AP8152277 screw (6x12) AP8102535 float chamber AP8120893 cap seal AP8144351 fuel tank gasket AP8120894 fuel tank gasket AP8117147 fuel tank heat protection AP8102503 hose holder union AP8120965 o-ring AP8152280 screw AP8152279 screw AP8150015 washer AP8121889 cable-guide Fuel Tank

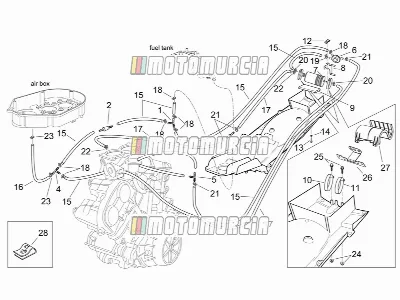

Fuel Vapour Recover System Aprilia Fuel Vapour Recover System AP8120116 3-way union AP8104251 anti-return valve AP8121267 choke hold AP8202154 3-way union AP8102727 3-way union AP8106776 "purge" valve AP8102678 fuel filter AP8134659 valve support clamp AP8117041 adhesive sponge 6x30 AP8102688 clamp AP8102719 clamp AP8102375 clip nuts (m5) AP8152273 screw AP8150013 10 - washer 896544 fuel pipe 5,5x10 (5,5x10) AP8120987 pipe 9x14 896570 breather pipe 4x8 (4x8) AP8101595 clamp AP8102520 clamp AP8102378 clamp AP8120179 clamp AP8102377 clamp AP8102766 clamp AP8152299 nut AP8152279 screw AP8104175 carbon filter support AP8149038 filter cover 254485 clip nuts (m6) Fuel Vapour Recover System

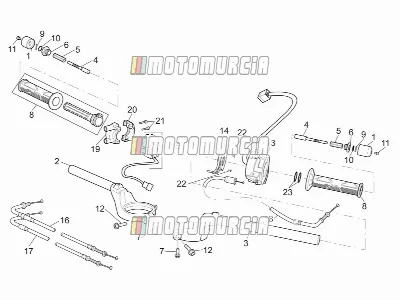

Handlebar Aprilia Handlebar AP8104573 handlebar weight (black) AP8118603 handlebar tube right AP8118604 handlebar tube left AP8118458 handlebar tube left AP8121262 anti v. weight shaft AP8144083 spacer (rubber) AP8121261 anti vib.weight trailing AP8152279 screw AP8118501 grip AP8110074 roller d4x19,8 AP8120178 o-ring AP8152040 screw AP8152289 screw AP8127524 lh lights selector AP8124261 lh lights selector AP8124551 lh lights selector GU01132330 choke control AP8127523 engine stop-start device AP8124260 engine stop-start device AP8114355 throttle cable (opening) AP8114356 throttle cable (closing) AP8114369 choke cable AP8118566 front gas lever u-bolt AP8118567 rear gas lever u-bolt AP8118492 cap screw AP8150472 screw AP8120190 o-ring Handlebar

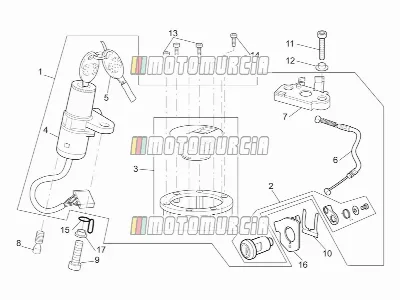

Lock Hardware Kit Aprilia Lock Hardware Kit AP8104173 lock kit AP8102722 lock kit AP8104213 lock kit AP8104259 lock kit AP8104260 lock kit AP8104261 lock kit AP8104154 saddle lock AP8104528 fuel filler cap AP8144312 fuel filler cap AP8104262 fuel filler cap AP8104529 fuel filler cap AP8104941 main switch - steering lock AP8104708 main switch - steering lock AP8104613 key blank AP8114411 lock cable AP8102913 pass.saddle connecting plate AP8150349 screw AP8152288 screw AP8121420 fork spring AP8150285 10 - screw AP8121728 spacer AP8150453 screw (m5x30) AP8150454 screw (m5x16) AP8120428 cable-guide AP8134618 cable fixing plate AP8121678 spacer Lock Hardware Kit
Rear Body - Rear Fairing Aprilia Rear Body - Rear Fairing AP8134396 fuel tank support rod AP8114411 lock cable AP8121420 fork spring AP8148509 pillion grab bar, grey AP8149660 pillion grab bar, grey AP8158768 pillion grab bar, black AP8121665 10 - spacer AP8152281 screw AP8150388 screw AP8152300 nut AP8102913 pass.saddle connecting plate AP8168965 rear fairing, black/bronze AP8149765 rear fairing, grey AP8168969 rear fairing, black/green AP8148648 rear fairing, black c. AP8149790 rear fairing, blue AP8158766 rear fairing, black AP8148507 rear fairing, red fire AP8149658 rear fairing, flashy yellow AP8168959 rear fairing, black/red AP8134618 cable fixing plate AP8150285 10 - screw AP8121728 spacer AP8104154 saddle lock AP8152339 screw AP8152279 screw AP8152246 screw AP8121032 spacer Rear Body - Rear Fairing

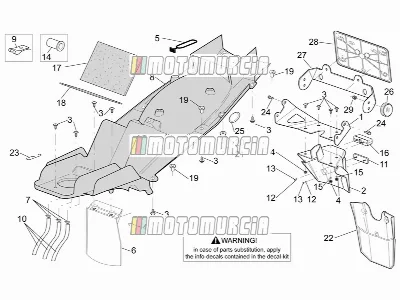

Rear Body  - Undersaddle Aprilia Rear Body - Undersaddle AP8126590 number plate support AP8126862 rear mudguard, grey AP8126894 rear mudguard, grey AP8126990 rear mudguard, black AP8126895 rear mudguard, grey AP8126991 rear mudguard, black AP8126766 rear mudguard, grey AP8152246 screw AP8152299 nut AP8120177 elastic AP8158784 shock absorber cover AP8126717 shock absorber cover AP8101595 clamp AP8138785 saddle supp.low. lockup, grey AP8149665 saddle supp.low. lockup, grey AP8158771 saddle supp.low. lockup, black AP8102375 clip nuts (m5) 896544 fuel pipe 5,5x10 (5,5x10) AP8112916 rear reflector AP8150158 washer (4,3x9x0,8) AP8150204 nut AP8120531 rubber w/ insert AP8150015 washer AP8212702 lamp assy, number plate AP8144288 lat.battery support rubber AP8144045 battery support rubber AP8121032 spacer AP8148824 maintenance AP8150468 screw AP8126610 rear splash guard AP8120512 cable-guide 598839 screw AP8157769 guard decal AP8224164 rear reflector, red AP8258253 rear reflector support AP8149034 number plate support AP8152306 nut Rear Body - Undersaddle

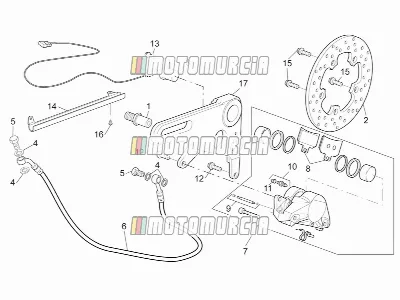

Rear Brake Caliper Aprilia Rear Brake Caliper 898486 brake supp. plate pin AP8113612 brake disc AP8124528 sensor, unit AP8113004 washer gasket AP8113003 oil pipe screw AP8113889 brake hose AP8133900 rear caliper rear AP8133920 brake pads AP8113752 pin+split pin AP8113895 air bleed valve AP8113070 bleed valve cap AP8152286 screw AP8152279 screw AP8134544 rear brake hose support AP8152298 screw AP8134385 brake hanger plate Rear Brake Caliper

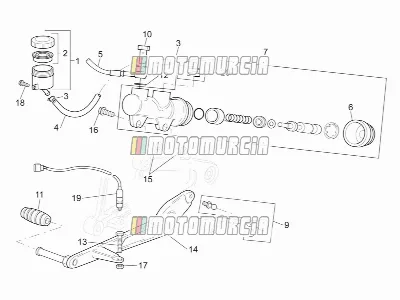

Rear Master Cylinder Aprilia Rear Master Cylinder AP8106382 oil tank AP8113553 brake fluid reservoir cover AP8101595 clamp 890509 rubber pipe AP8113889 brake hose AP8113288 rubber bellows AP8113890 brake hydraulic pump AP8121416 master cylinder rod AP8210007 rh ball joint m6 AP8113003 oil pipe screw AP8120912 lever rubber AP8113004 washer gasket AP8150072 hex screw m6x25 (m6x25) AP8146016 rear brake lever AP8152299 nut AP8152279 screw AP8150026 nut AP8152273 screw AP8112996 brake light switch AP8213057 joint Rear Master Cylinder

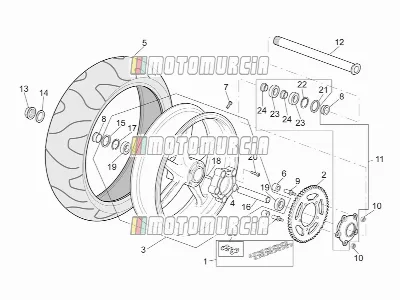

Rear Wheel Aprilia Rear Wheel AP8107120 chain cpl conn.link AP8107149 chain cpl conn.link AP8107119 chain ring z=41 AP8108676 rear wheel, grey 2B000639R primary drive / cush drive 0000000 tyre B043317 flexible coupling rubber AP8101744 tubeless tyre valve AP8121225 spacer (rear wheel) AP8121408 spring drive fixing bush AP8150436 nut AP8125730 crown holder cpl. B045422 rear wheel spindle rear AP8152324 nut (m25x1,5) AP8152323 washer AP8125786 gasket ring 38x52x7 AP8125787 spacer AP8125788 seeger AP8150463 pin 10x20 AP8106806 bearing 6205-2rs1 25x52x15 AP8150195 screw (m10x30) AP8121213 oil seal AP8121212 seeger AP8110081 bearing 30x55x13 AP8125732 spring drive spacer 859754 connecting link AP8107136 connecting link Rear Wheel

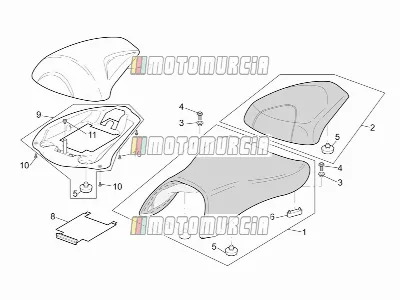

Saddle Aprilia Saddle AP8129182 saddle assy (driver) AP8129401 driver saddle, grey/black AP8129403 driver saddle, brown AP8129402 rear saddle, grey AP8129208 rear saddle, black AP8129404 rear saddle, brown AP8121075 spacer AP8150044 screw AP8126702 spacer (rubber) AP8126701 saddle rubber AP8168970 saddle cover, green AP8148508 saddle cover, red fire AP8149659 saddle cover, flashy yellow AP8148649 saddle cover, black c. AP8158767 saddle cover, black AP8168966 saddle cover, bronze AP8149791 saddle cover, blue AP8149766 saddle cover, grey AP8168960 saddle cover, red AP8138947 saddle cover access door AP8139369 saddle cover base AP8150413 screw AP8144081 side panel support rubber Saddle
Steering Aprilia Steering 2B011121 steering bearing AP8123932 fork upper plate AP8123640 stem base AP8121207 steering security plate AP8123642 ring nut AP8123643 return ring nut AP8123644 dust cover ring AP8121205 upper plate fixing bush AP8121302 steering lock bush 319165 screw AP8123641 dust cover ring AP8152289 screw AP8152384 stem plug washer AP8157532 "aprilia" dataplate Steering

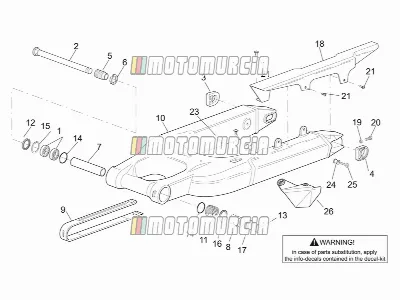

Swing Arm Aprilia Swing Arm AP8110079 bearing AP8125830 rear swing arm pin AP8120985 rh chain guide plate AP8120986 lh chain guide plate AP8121200 adjustment bush AP8121201 swing arm ring nut AP8121202 internal spacer AP8121203 rear int.sw.arm piv.bush AP8144052 chain guide plate AP8146012 swing arm AP8146352 swing arm AP8110078 needle bearing AP8144006 gasket AP8125763 nut AP8144048 o-ring AP8121204 seeger AP8144005 gasket AP8125687 washer AP8158772 chain guard AP8138790 chain guard 2B004511 nut AP8152305 chain tens.adjuster screw AP8152339 screw AP8120531 rubber w/ insert AP8148824 maintenance AP8150468 screw AP8144321 chain guide plate Swing Arm
Central Electrical System Aprilia Central Electrical System 598839 screw AP81129276 relay - starter 658830 washer (spring) AP8150026 nut AP8124284 battery 1R000319 battery AP8124825 ground-battery lead AP8138832 battery cover AP8120218 terminal cap AP8124766 oil pressure wiring AP8121411 starter relay fixing plate AP8124454 relay-starter motor cable AP8124557 h.t. wiring AP8112811 rubber fuse box AP8120754 rubber fuse box CM225730 fuse 30a AP8124828 main fuses wiring AP8112940 positive pole cap AP8124826 injection wiring AP8152123 screw AP8152299 nut AP8152246 screw AP8121032 spacer Central Electrical System

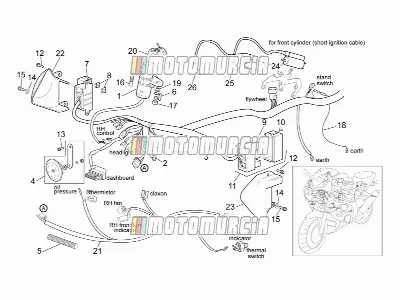

Front Electrical System Aprilia Front Electrical System AP8104708 main switch - steering lock AP8104941 main switch - steering lock AP8212588 diode AP8124523 main wiring harness AP8127391 horn AP8124856 protection pipe AP8120428 cable-guide AP8124274 fuse holder box CM225715 fuse (15a) 1D001636 microrelay with resistance 12v 30a/10a (12v 30a/10a) AP8150421 screw AP8124293 relais support AP8152279 screw AP8152285 screw AP8150014 washer AP8152280 screw AP8150349 screw AP8152288 screw AP8124764 neutral switch wiring AP8121678 spacer AP8104613 key blank AP8124827 fans wiring AP8148662 rh wiring protection AP8148661 lh wiring protection AP0265480 ignition coil AP0265244 ext.sparkplug cap AP0265246 int.sparkplug cap Front Electrical System
Fuel Pump I Aprilia Fuel Pump I AP8134750 fuel pump flange AP8104455 self-tap screw 2,9x9,5 AP8150421 screw AP8150413 screw AP8152273 screw AP8144003 fuel pump rubber AP8144010 o-ring 199 AP8176032 gasket AP8144226 fuel pipe AP8120990 fuel pipe pump-filter AP8102971 fuel filter AP8106385 fuel pump AP8144011 o-ring AP8144298 breather plug AP8104456 fuel pump support AP8138624 fuel pump support AP8124297 level sensor AP8144476 fuel pipe AP8120991 fuel pipe 7,5x14,5 AP8102765 clamp AP8104457 snap ring 890435 clamp 890435 clamp Fuel Pump I
Fuel Pump Ii Aprilia Fuel Pump Ii AP8106443 bored screw AP8106444 washer gasket 598839 screw AP8101595 clamp AP8102764 clamp AP8152184 washer AP8152277 screw (6x12) AP8144160 tank breather pipe AP8152272 screw AP8134750 fuel pump flange AP8102626 2-way union AP8120253 spacer AP8127321 fuel pump wiring AP8124529 fuel pump wiring AP8152273 screw AP8144069 fuel pipe 6x13 AP8102239 clamp 856075 fuel pipe AP8102829 joint AP8120285 o-ring AP8144475 gasket AP8102873 joint Fuel Pump Ii

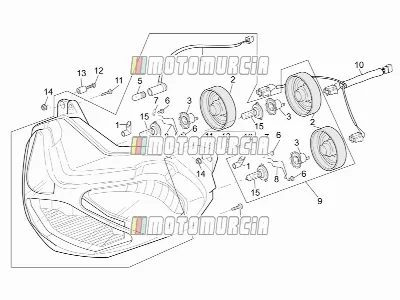

Headlight Aprilia Headlight AP8124903 ventilation plug AP8124904 front headlight guard AP8124905 lampholder AP8124906 town lights switch wiring 2920225 bulb (12v 5w t10) AP8150486 self-tap screw AP8134641 maintenance AP8121436 spring AP8124744 headlight AP8124884 headlight AP8124763 headlight wiring w/harness AP8150282 screw AP8152136 screw AP8121020 spacer AP8150430 nut 294353 bulb (h7 55w 12v) Headlight

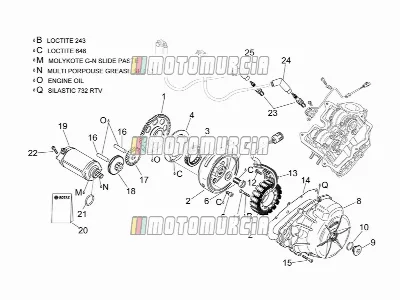

Ignition Unit Aprilia Ignition Unit 2R000113 sprag clutch gear z=64 AP0295830 ignition unit 12v-380w AP0659110 clutch, one way AP0659123 sprag clutch housing 2R000308 screw 2R000261 screw AP0627270 washer AP0211651 ignition cover AP0241631 cover m24x1,5 AP0430782 o-ring (23,3x2,4) AP0241816 screw (m6x40) AP0240580 screw AP0260870 cable protection AP0650341 gasket - generator cover AP0241811 screw AP0229301 pin m6x50 AP0634605 idle gear AP0634740 double gear AP0685965 starter motor AP0294354 starter motor revision kit AP0250140 o-ring 24,4x3,1 AP0840882 screw AP0297942 spark plug AP0265246 int.sparkplug cap AP0265244 ext.sparkplug cap Ignition Unit

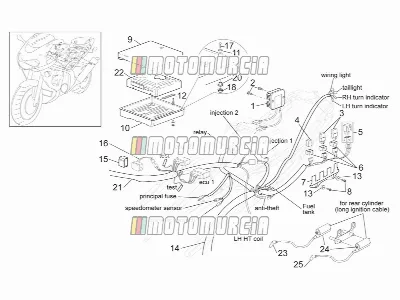

Rear Electrical System Aprilia Rear Electrical System AP8124267 voltage regulator AP8152282 screw AP8224462 relay - starter AP8124289 diods AP8124235 flasher relay AP8220283 rubber spacer * AP8148438 relais support 598839 screw AP8138596 ecu box cover AP8138776 ecu prot.box AP8150015 washer AP8117033 damper AP8121075 spacer AP8124523 main wiring harness AP8124932 main wiring harness AP8144046 rubber sensor support 584509 fall sensor AP8152117 screw AP8152299 nut AP8220150 damper AP8221097 t bush * AP8124826 injection wiring AP8124960 ecu AP0265472 ecu AP0265674 ecu AP0265673 ecu AP8124959 ecu AP0265246 int.sparkplug cap AP0265480 ignition coil AP0265244 ext.sparkplug cap Rear Electrical System

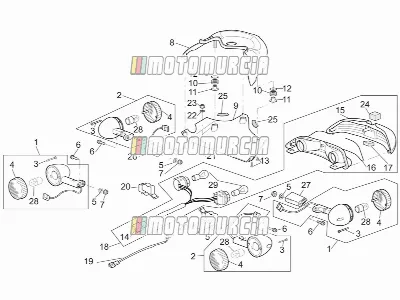

Taillight - Direction Lights Aprilia Taillight - Direction Lights AP8124456 turn indicator AP8124471 turn indicator AP8152392 self-tap screw 2,9x32 AP8124889 turn indicator lens AP8152279 screw AP8152299 nut AP8158769 up.light supp.rear fair.,black AP8149663 up.light supp.rear fair., grey AP8138788 up.light supp.rear fair., grey AP8149664 lo.light supp.rear fair., grey AP8148260 lo.light supp.rear fair., grey AP8158770 lo.light supp.rear fair.,black AP8112599 rubber spacer * AP8121790 spacer AP8150015 washer AP8150413 screw AP8124908 taillight wiring harn. AP8124909 taillight lens AP8144313 taillight gasket AP8117170 low.antivibration sponge AP8124395 taillight assy. AP8124976 plate light wiring AP8124860 lamp holder plug 2B014101 screw AP8150013 10 - washer AP8152306 nut AP8117175 up.antivibration sponge AP8117033 damper AP8221303 rh front spacer AP8221305 lh front spacer AP8224390 lamp r10w 12v 129953 bulb (12v 21/5w) Taillight - Direction Lights

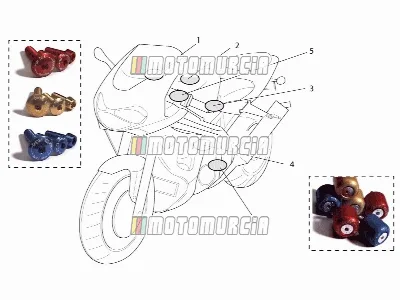

Acc. - Cyclistic Components Aprilia Acc. - Cyclistic Components AP8140530 windsh.glass screws,blue ergal AP8140531 windsh.glass screws,gold ergal AP8140529 windsh.glass screws ergal-red AP8140453 fuel cap screws, gold ergal AP8140451 fuel cap screws, red ergal AP8140701 anti.vib.weights, gold ergal AP8140700 anti.vib.weigh.,blue ergal AP8140699 anti.vib.weights, red ergal AP8140526 fairing screws, red ergal AP8140527 fairing screws, blue ergal AP8140528 fairing screws, gold ergal AP8140534 handlebar screws, gold ergal AP8140533 handlebar screws, blue ergal AP8140532 handlebar screws, red ergal AP8140505 toe guard, pair ergal-red AP8140506 toe guard, pair ergal-blu AP8140507 toe guard, pair ergal-oro Acc. - Cyclistic Components
Acc. - Mechanics Anti-theft Aprilia Acc. - Mechanics Anti-theft AP8720115 iron guard 10x150 mm AP8720116 iron guard 8x120 mm AP8720117 iron guard disk 5 mm AP8720118 easy guard 150 mm Acc. - Mechanics Anti-theft
Acc. - Performance  Parts I Aprilia Acc. - Performance Parts I AP8796541 exhaust unit kit slcarb. AP8796544 lh silencer+sup.clamp slcarb. AP8796543 rh silencer+supp.clamp slcarb. AP8796545 eprom slcarb. AP8796493 soundproofing cartridge assy. Acc. - Performance Parts I
Acc. - Performance  Parts Ii Aprilia Acc. - Performance Parts Ii AP8796554 exhaust kit alu AP8796556 rh silencer+support clamp alu AP8796557 lh silencer+support clamp alu AP8796545 eprom slcarb. AP8796555 soundpr.cartridge assy AP8796558 rear footrests, pair AP8796552 license plate alu Acc. - Performance Parts Ii
Acc. - Special Body Parts Aprilia Acc. - Special Body Parts AP8796547 front kit alu AP8796548 front mudguard AP8796549 disk ducts kit alu AP8796550 pillar alu AP8796551 rear mudguard alu AP8796553 4 arrows kit alu Acc. - Special Body Parts

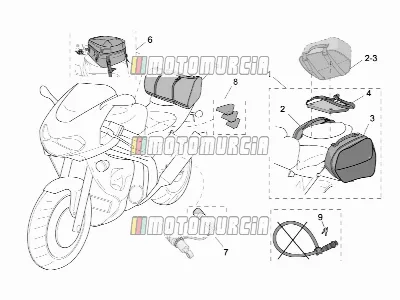

Acc. - Various Aprilia Acc. - Various AP8792153 saddlebags assy - pair AP8792154 rh saddlebag AP8792155 lh saddlebag AP8796145 saddlebag fastening kit AP8792152 rear saddlebag AP8792156 tank pack AP8795029 rear shock abs.adj.kit AP8796047 tank guard stickers kit AP8700794 key support b.guard i-e AP8700793 key support b.guard f-nl AP8700792 key support b.guard uk-d Acc. - Various

What do we have to offer extra for this model?

Looking for original spare parts for the Aprilia SL 1000 model from 2003? This catalog helps you easily find OEM parts for the SL 1000 Falco. Whether you? Re maintaining or repairing your bike, you'll find all the parts you need for the Aprilia SL 1000 model right here.

Here you can find generic spare parts such as oil filters, brake parts, mirrors and many more. Check them out through the link below!

Show all spare parts

Can we help you?

Need help with technical drawings?

Do you have questions about a specific part or need guidance with our technical drawings? We are ready to assist you. Whether you're looking for a detailed explanation, help identifying the right part, or simply need advice, feel free to contact us. We're here to make your experience as smooth and efficient as possible.

WhatsApp: +34 610 755 131

Email: info@motomurcia.es

Explore comprehensive technical drawings for your Aprilia SL 1000 Falco

Our detailed technical drawings provide an in-depth view of your Aprilia SL 1000 Falco, allowing you to identify every component and part with ease. Whether you're maintaining a classic model or working on a newer version, these schematics are your ultimate guide.

Each drawing is carefully organized and linked to genuine OEM parts, ensuring a seamless connection between what you see and what you need. Navigate through clear diagrams and instantly find the part numbers and descriptions you require for repairs or maintenance.

  • High-quality technical drawings for every part of your SL 1000 Falco.
  • Linked to accurate part numbers and OEM descriptions.
  • Supports both classic and modern models from Aprilia.
  • Easy-to-use filters to quickly locate the right diagrams.
  • Access drawings for thousands of models across multiple years.

Designed with professionals and enthusiasts in mind, our platform combines precision and usability. Filter drawings by engine size, model year, or specific versions to make your search faster and more efficient.

Ready to explore? Select your Aprilia SL 1000 Falco technical drawing above and discover the parts you need to keep your motorcycle in top condition.
