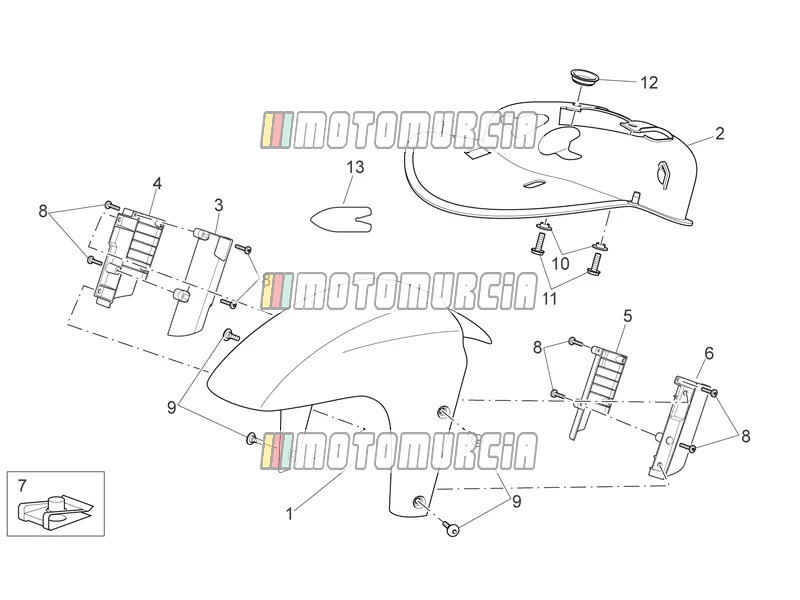

Exploded view — Front Body - Front Mudguard

Products

1 Front mudguard AP8156345 No longer available

• AP8156345 Front mudguard
  No longer available
• AP8156280 Front mudguard
  No longer available
• AP8156279 Front mudguard, grey
  No longer available
• AP8156271 Front mudguard
  No longer available
• AP8156281 Front mudguard
  No longer available
• AP8156275 Front mudguard, grey
  No longer available
• AP8156334 Front mudguard
  No longer available

2 Lower shield cover, black Backorder AP8178078

•

  Wheel Arch Piaggio Group · AP8178078 Backorder

  € 34,06

  Add to cart

3 RH In.clump Backorder AP8184242

•

  Protection piece, right Piaggio Group · AP8184242 Backorder

  € 13,30

  Add to cart

4 RH Ex.clump Backorder AP8184244

•

  Cover, right Piaggio Group · AP8184244 Backorder

  € 13,30

  Add to cart

5 LH In.clump Backorder AP8184243

•

  Protection piece, left Piaggio Group · AP8184243 Backorder

  € 13,30

  Add to cart

6 LH Ex.clump Backorder AP8184245

•

  Cover, right Piaggio Group · AP8184245 Backorder

  € 13,30

  Add to cart

7 Clip nuts (M5) Available AP8102375

•

  Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 4 Available

  € 2,47

  Add to cart

8 Screw Available AP8150413

•

  Thread Screw 3,9x14 mm, stainless steel Piaggio Group · AP8150413 · Quantity needed: 8 Available

  € 1,69

  Add to cart

9 Screw Available 2B014101

•

  Screw Piaggio Group · 2B014101 · Quantity needed: 4 Available

  € 3,78

  Add to cart

10 Spacer Available AP8121075

•

  Sleeve Piaggio Group · AP8121075 · Quantity needed: 2 Available

  € 2,35

  Add to cart

11 Screw Available AP8152117

•

  Screw M6x25 Piaggio Group · AP8152117 · Quantity needed: 2 Available

  € 2,93

  Add to cart

12 Plug, grey Available AP8248897

•

  Lock Piaggio Group · AP8248897 Available

  € 6,75

  Add to cart

13 Guard decal Backorder 852081

•

  Protection piece Piaggio Group · 852081 · Quantity needed: 2 Backorder

  € 6,16

  Add to cart
