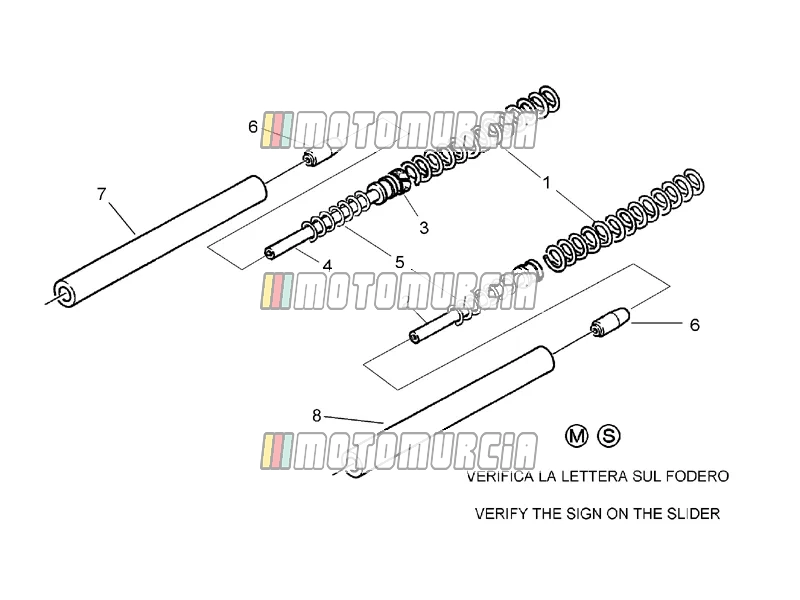

Exploded view — Fork Ii

‹ Back to model

Aprilia SR 50 AC 1997

Aprilia SR 50 AC 1997

Fork Ii

Products

1 Spring (M) AP8203756 No longer available

AP8203756 Spring (M) Quantity needed: 2
- Fork with letter M on hub
No longer available
AP8203781 Spring (S) Quantity needed: 2
- Fork with letter S on hub
No longer available

2 Shock absorber, LH Backorder AP8203782

- Fork with letter S on hub
Shock absorber left Piaggio Group · AP8203782 Backorder · Shipped in 2–4 weeks

€ 45,96
AP8203757 Shock absorber, LH
- Fork with letter M on hub
No longer available

3 Fork pump ring AP8203783 No longer available

AP8203783 Fork pump ring
- Fork with letter S on hub
No longer available
- Fork with letter M on hub
Ring Piaggio Group · AP8203758 Available · Shipped in 3–5 working days

€ 12,31

4 Shock absorber, RH Available AP8203759

- Fork with letter M on hub
Shock absorber right Piaggio Group · AP8203759 Available · Shipped in 3–5 working days

€ 16,94
- Fork with letter S on hub
Shock absorber right Piaggio Group · AP8203784 Backorder · Shipped in 2–4 weeks

€ 8,47

5 Return spring (Small) Backorder AP8123708

- Fork with letter M on hub
- Fork without letter S on hub
Return Spring Piaggio Group · AP8123708 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 15,73
- Fork with letter S on hub
Return Spring Piaggio Group · AP8203786 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 4,20

6 Stroke limit stop AP8203862 No longer available

AP8203862 Stroke limit stop Quantity needed: 2
- Fork with letter S on hub
No longer available
- Fork with letter M on hub
- Fork without letter S on hub
Plug Piaggio Group · AP8123701 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

€ 19,47

7 RH pipe, complete AP8203760 No longer available

AP8203760 RH pipe, complete
- Fork with letter M on hub
No longer available
- Fork with letter S on hub
Steering Tube right Piaggio Group · AP8203787 Backorder · Shipped in 2–4 weeks

€ 35,09

8 Fork inner tube (LH - S) AP8203788 No longer available

AP8203788 Fork inner tube (LH - S)
- Fork with letter S on hub
No longer available
AP8203761 LH pipe, complete
- Fork with letter M on hub
No longer available
