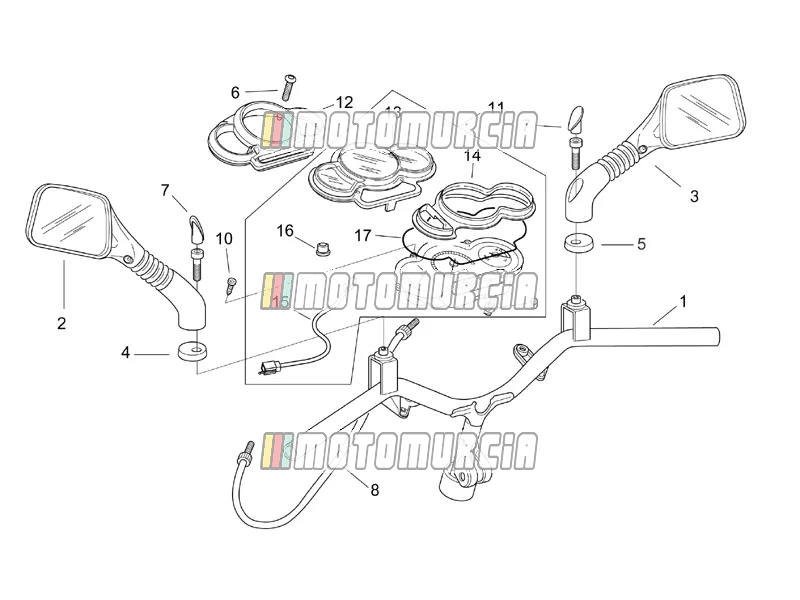

Exploded view — Handlebar - Dashboard

‹ Back to model

Products

1 Handlebar Backorder AP8218210

Handlebar Piaggio Group · AP8218210 Backorder

€ 309,69

2 Mirror left AP8201976 No longer available

AP8201976 Mirror left
No longer available

3 Mirror right Available AP8201975

Mirror, right, Typ III E9 010134 L E13 000007 Piaggio Group · AP8201975 Available

€ 40,58

4 LH mirror rubber Available AP8220454

Mirror rubber, left Piaggio Group · AP8220454 Available

€ 4,28

5 RH mirror rubber AP8220453 No longer available

AP8220453 RH mirror rubber
No longer available

6 Screw Available AP8221242

Thread Screw 3,5x20 mm Piaggio Group · AP8221242 · Quantity needed: 4 Available

€ 1,44

7 RH + LH rearview mirror plug Available AP8202071

AP8202071 RH + LH rearview mirror plug Quantity needed: 2

Plug, für Spiegel Piaggio Group · AP8202071 Available

€ 9,17

Plug, für Spiegel Piaggio Group · AP8202071 Available

€ 9,17

8 Speedometer cable AP8214163 No longer available

AP8214163 Speedometer cable
No longer available

9 Lampholder, complete (12V 1,2W) Available AP8212407

Bulbs Festoon with Socket, 12 V, 1,2 W Piaggio Group · AP8212407 · Quantity needed: 7 Available

€ 15,96

10 Screw Available AP8150421

Thread Screw 2,9x12 mm, stainless steel Piaggio Group · AP8150421 · Quantity needed: 4 Available

€ 2,18

11 Dashboard AP8224485 No longer available

AP8224485 Dashboard
No longer available
AP8224321 Dashboard
No longer available
AP8224484 Dashboard
No longer available
AP8224521 Dashboard
No longer available
AP8224402 Dashboard
No longer available

12 Fascia panel w/out lenses AP8249766 No longer available

AP8249766 Fascia panel w/out lenses
No longer available

13 Dashboard lens Available AP8224344

Speedometer Glass Piaggio Group · AP8224344 Available

€ 30,76

14 Lighting shield Available AP8224345

Frame, for cockpit instruments Piaggio Group · AP8224345 Available

€ 22,76

15 Dashboard cable AP8224369 No longer available

AP8224369 Dashboard cable
No longer available

16 Cover Backorder AP8224368

Lid Piaggio Group · AP8224368 Backorder

€ 4,94

17 Dashboard lens seal AP8220555 No longer available

AP8220555 Dashboard lens seal
No longer available
