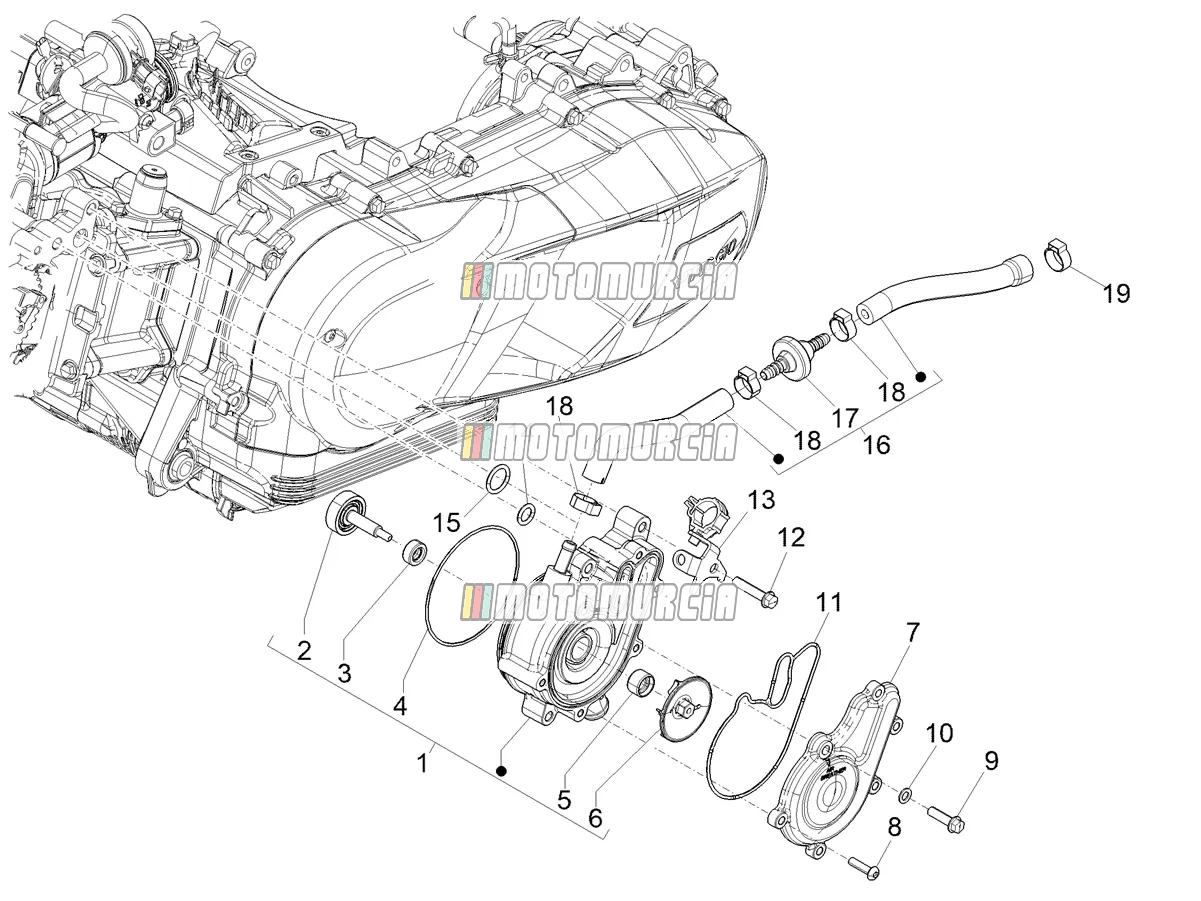

Exploded view — Cooler Pump

Products

1 Water pump assy Available 1A0205055

•

  Water pump assy Piaggio Group · 1A0205055 Available

  € 221,81

  Add to cart

2 Water pump shaft Available 1A0030735

•

  Water Pump Shaft Piaggio Group · 1A0030735 Available

  € 89,27

  Add to cart

3 Oil seal (8x16x7) Available 825577

•

  Oil seal 8x16x7 mm Piaggio Group · 825577 Available

  € 6,93

  Add to cart

4 O-Ring Available 1A001054

•

  Oil seal Piaggio Group · 1A001054 Available

  € 5,07

  Add to cart

5 Oil seal Available 82510R

•

  Oil seal Piaggio Group · 82510R Available

  € 18,57

  Add to cart

6 Girante pompa acqua Backorder 1A019833

•

  Water Pump Wheel Piaggio Group · 1A019833 Backorder

  € 8,54

  Add to cart

7 Water pump cover Backorder 1A019831

•

  Cover Piaggio Group · 1A019831 Backorder

  € 49,96

  Add to cart

8 Torx Screw M5x20 Available 1A004456

•

  Screw Piaggio Group · 1A004456 · Quantity needed: 5 Available

  € 2,19

  Add to cart

9 Screw w/ flange M6x25 Available 1A000350

•

  Flanged Screw M6x25 Piaggio Group · 1A000350 Available

  € 2,15

  Add to cart

10 Washer Available 1A004280

•

  Washer Piaggio Group · 1A004280 Available

  € 1,82

  Add to cart

11 Gasket - water pump Available 1A001276

•

  Oil seal Piaggio Group · 1A001276 Available

  € 7,89

  Add to cart

12 Screw Available 1A000348

•

  Screw M6x35 Piaggio Group · 1A000348 · Quantity needed: 3 Available

  € 2,12

  Add to cart

13 Support clamp Available 1A0055625

•

  Bracket for water pump Piaggio Group · 1A0055625 Available

  € 11,19

  Add to cart

14 O-Ring Available 1A001055

•

  O-Ring Piaggio Group · 1A001055 Available

  € 2,15

  Add to cart

15 O-Ring Available 1A001056

•

  O-Ring Piaggio Group · 1A001056 Available

  € 2,15

  Add to cart

16 Tubo blow-by cpl. Available 1A0210075

•

  Tubo blow-by cpl. Piaggio Group · 1A0210075 Available

  € 63,30

  Add to cart

17 Check valve Available 1A004008

•

  Non Return Valve Piaggio Group · 1A004008 Available

  € 12,75

  Add to cart

18 Clamp Available CM001903

•

  Hose Clamp Piaggio Group · CM001903 · Quantity needed: 3 Available

  € 2,18

  Add to cart

19 Clamp Available CM001904

•

  Clamp Piaggio Group · CM001904 Available

  € 1,72

  Add to cart
