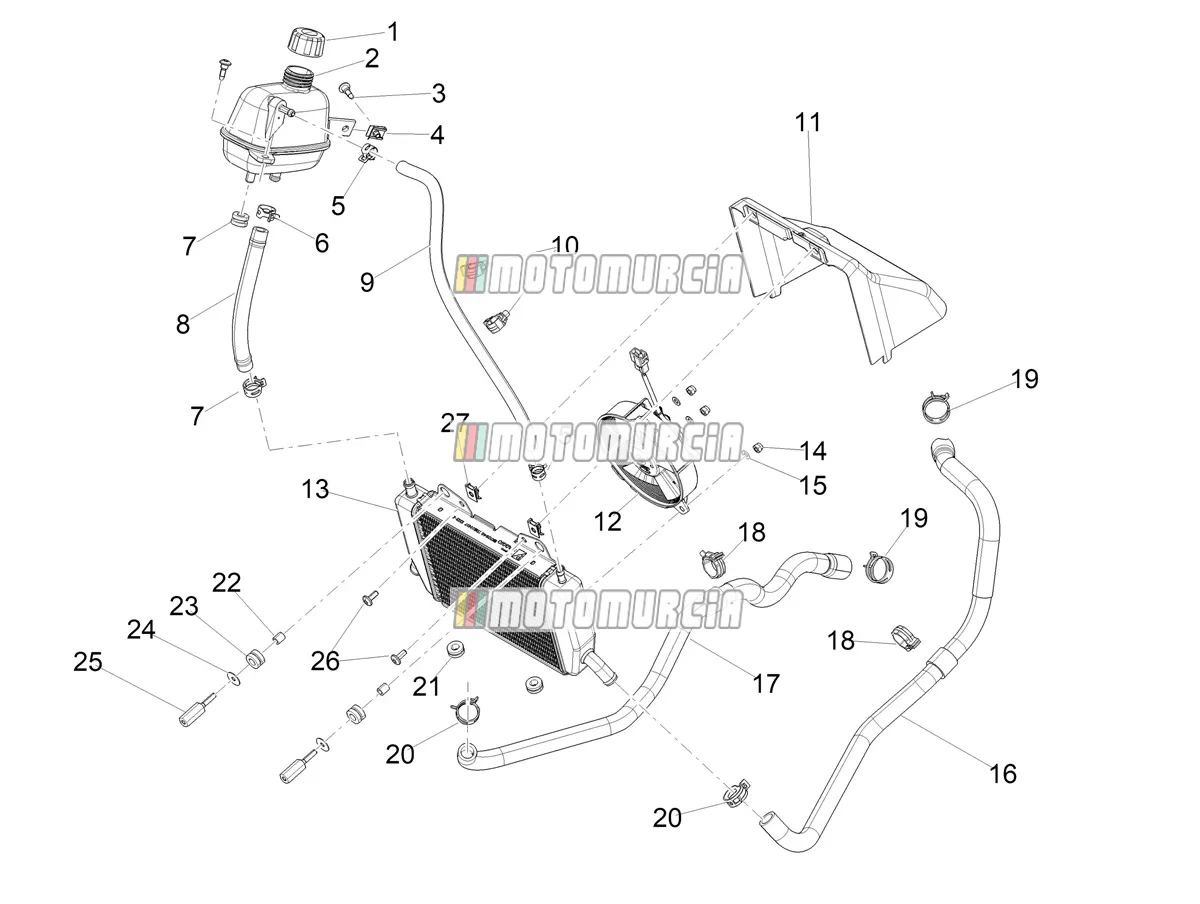

Exploded view — Cooling System
‹ Back to model
Aprilia SR GT 400 Replica E5+ 2026
Products
1 Tank cap Available
-
Tank Cap Piaggio Group · 623673 Available · Shipped in 3–5 working days€ 19,66
2 1B012872 Backorder
-
Coolant reservoir Piaggio Group · 1B012872 Backorder · Shipped in 2–4 weeks€ 54,45
3 Screw Available
-
Screw M6x22 Piaggio Group · CM179201 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
4 Clip nuts (M6) Available
-
Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days€ 2,04
5 Spring clamp 15/12 Available
-
Clamp Piaggio Group · CM226901 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,46
6 Spring clamp 19/12 Available
-
Clamp Piaggio Group · CM226902 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,83
7 Cylindrical cable grommet Available
-
Cable Guide Piaggio Group · 576565 Available · Shipped in 3–5 working days€ 1,32
8 1B012764 Backorder
-
Pipe Piaggio Group · 1B012764 Backorder · Shipped in 2–4 weeks€ 14,52
9 1B012763 Backorder
-
Pipe Piaggio Group · 1B012763 Backorder · Shipped in 2–4 weeks€ 14,52
10 Non return spring L=12 Available
-
Clamp length: 12mm Piaggio Group · CM006905 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 5,09
11 1B012607 Backorder
-
Guide plate Piaggio Group · 1B012607 Backorder · Shipped in 2–4 weeks€ 14,52
12 1D005407 Backorder
-
Fan Piaggio Group · 1D005407 Backorder · Shipped in 2–4 weeks€ 106,48
13 1B012646 Backorder
-
Radiator Piaggio Group · 1B012646 Backorder · Shipped in 2–4 weeks€ 145,20
14 Nut Available
-
Standard nut Piaggio Group · 012138 · Quantity needed: 3 Available · Shipped in 3–5 working days€ 5,07
15 Washer Available
-
Washer 6,4x12x1 mm Piaggio Group · 003056 Available · Shipped in 3–5 working days€ 1,84
16 1B012762 Backorder
-
Radiator pipe Piaggio Group · 1B012762 Backorder · Shipped in 2–4 weeks€ 18,15
17 1B012761 Backorder
-
Radiator pipe Piaggio Group · 1B012761 Backorder · Shipped in 2–4 weeks€ 16,94
18 10 - Fairlead Available
-
Clamp Piaggio Group · CM006903 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 4,51
19 CM226921 Backorder
-
Clamp Piaggio Group · CM226921 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 3,03
20 Hose clamp Available
-
Clamp 24/12 Piaggio Group · CM226910 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 4,45
21 Damper Available
-
Buffer Piaggio Group · 258904 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,17
22 Spacer Available
-
Spacer Piaggio Group · 273288 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,18
23 Upper rubber Available
-
Buffer Piaggio Group · 351782 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,67
24 Washer d6,2x20x1 Available
-
Washer 6,2x20x1 mm Piaggio Group · 013092 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,26
25 1B012978 Backorder
-
Pillar nut Piaggio Group · 1B012978 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 3,03
26 Screw Available
-
Screw M6x16 Piaggio Group · CM179301 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 1,48
27 Clip nuts (M6) Available
-
Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 2,04
