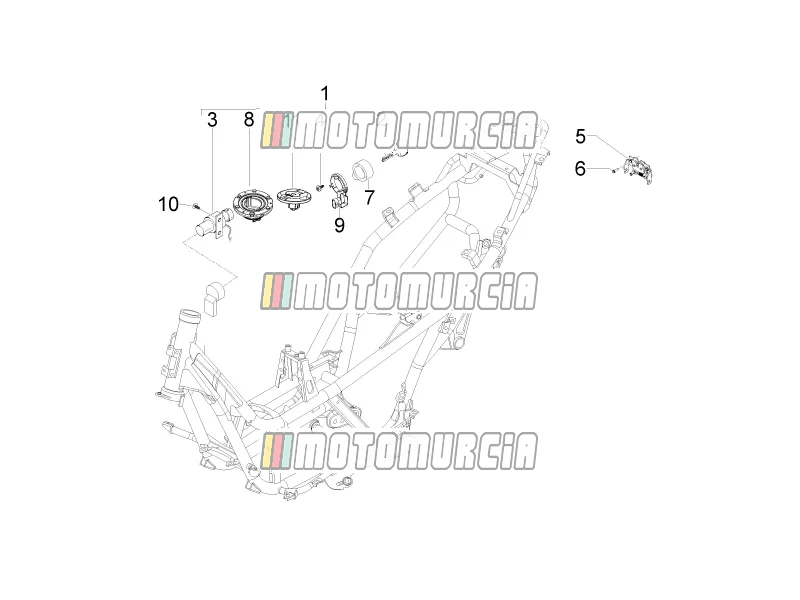

Exploded view — Locks

Products

1 Lock kit 674077 No longer available

• 674077 Lock kit
  No longer available

2 Key blank drawing Available 1B000256

•

  Key Blank Piaggio Group · 1B000256 Available · Shipped in 3–5 working days

  € 93,29

  Add to cart

3 AERIAL ADAPTOR Backorder 624516

•

  Steering Lock Piaggio Group · 624516 Backorder · Shipped in 2–4 weeks

  € 14,47

  Add to cart

4 Screw Available 015727

•

  Sheet Metal Screw Piaggio Group · 015727 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

5 Saddle lock Available CM023701

•

  Seat Lock Piaggio Group · CM023701 Available · Shipped in 3–5 working days

  € 36,09

  Add to cart

6 Screw Available 272836

• • Country: United States of America


  Screw M6x16 Piaggio Group · 272836 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,39

  Add to cart

7 Front cowl switch Available 624517

•

  Cap Piaggio Group · 624517 Available · Shipped in 3–5 working days

  € 15,51

  Add to cart

8 Fuel tank filler cap Available 959465

•

  Tank Nozzle Piaggio Group · 959465 Available · Shipped in 3–5 working days

  € 62,65

  Add to cart

9 Immobilizer antenna Available 638534

• 638534 Immobilizer antenna


  Aerial Immobiliser Piaggio Group · 1D004058R ↻ Replaces 638534, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 272,98

  Add to cart

10 Screw Available 709674

•

  Cylinder head screw M6x20 Piaggio Group · 709674 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

11 Plug 00H00400131 No longer available

• 00H00400131 Plug
  No longer available
