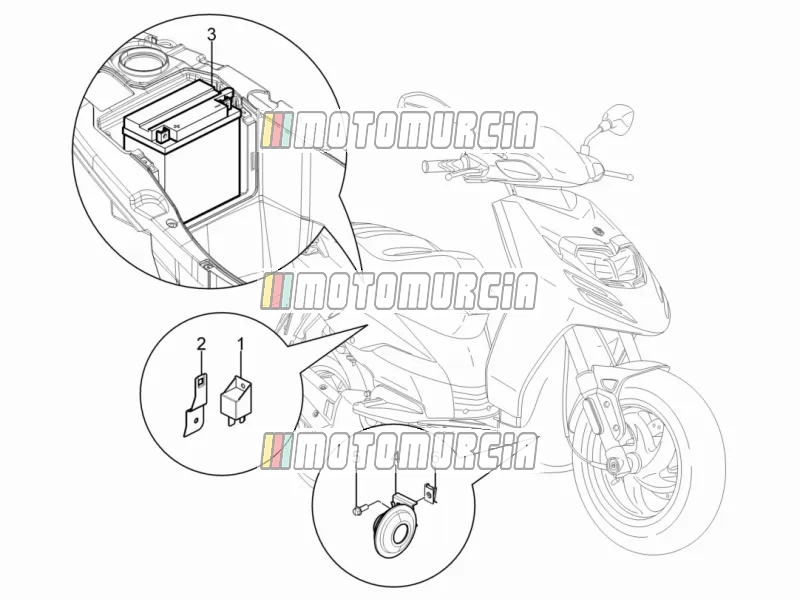

Exploded view — Remote Control Switches - Battery - Horn

‹ Back to model

Aprilia SR Motard 50 2T 2012

Aprilia SR Motard 50 2T 2012

Remote Control Switches - Battery - Horn

Products

1 Relay - starter Available 642318

Starting Relay 12 V, 80 A Piaggio Group · 642318 Available

€ 26,03

2 Solenoid bracket Backorder 582042

Bracket Piaggio Group · 582042 Backorder

€ 9,80

3 Battery Available 1L004081

Batterie PTX4L-BS, 12 V, 4 A, Maintenance-Free / MF, with acid pack, 115x70x85 mm Piaggio Group · 1L004081 Available

€ 56,72
Battery (YB4L-B)
No longer available
Batterie YB9-B, 12 V, 9 A, Standard, without acid pack, 138x77x141 mm Piaggio Group · 584810 Available

€ 81,88
Batterie PB4L-B, 12 V, 4 A, Standard, without acid pack, 121x71x93 mm Piaggio Group · 1L004080 Available

€ 31,45
Batterie PB4L-B, 12 V, 4 A, Standard, with acid pack, 121x71x93 mm Piaggio Group · 1L004079 Available

€ 32,48

4 Horn Available 58093R

Horn Piaggio Group · 58093R Available

€ 67,37

5 Screw Available B016777

Flanged Screw M6x16 Piaggio Group · B016777 Available

€ 1,48

6 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 Available

€ 2,04
