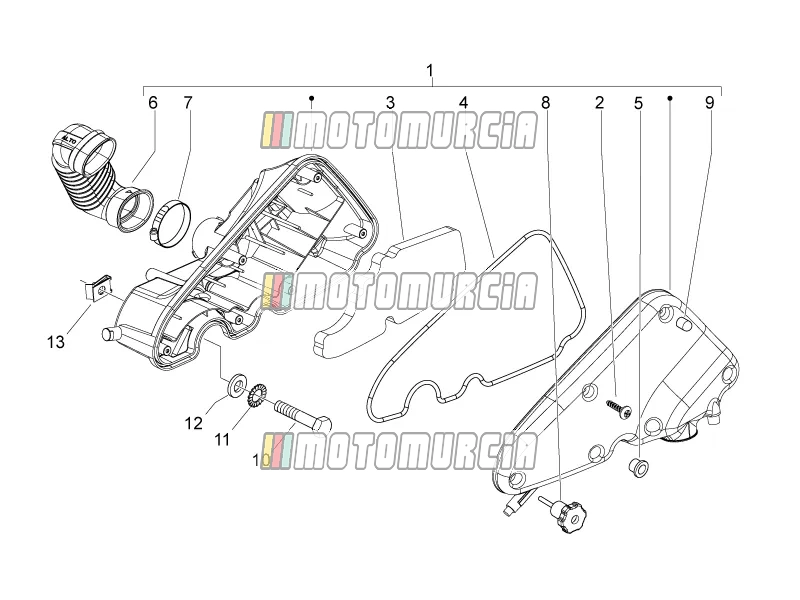

Exploded view — Air Filter

Products

1 Air filter box Available B013216

•

  Air Filter complete Piaggio Group · B013216 Available

  € 72,77

  Add to cart

2 Screw Available 258146

•

  Thread Screw Piaggio Group · 258146 · Quantity needed: 5 Available

  € 0,99

  Add to cart

3 Air filter Available 8431940P

•

  Air Filter Insert Premium Piaggio Group · 8431940P Available

  € 11,24

  Add to cart

4 Seal air filter box Available 843195

•

  Cover Gasket Piaggio Group · 843195 Available

  € 13,60

  Add to cart

5 Spacer Available 830056

•

  Sleeve Piaggio Group · 830056 · Quantity needed: 4 Available

  € 1,48

  Add to cart

6 Air calibration tube Available 843849

•

  Sleeve Piaggio Group · 843849 Available

  € 54,38

  Add to cart

7 Clamp Available CM002910

•

  Clamping Spring Piaggio Group · CM002910 Available

  € 1,29

  Add to cart

8 Screw Available 479132

•

  Adjustment Screw Piaggio Group · 479132 · Quantity needed: 2 Available

  € 12,78

  Add to cart

9 Cap Available 827831

•

  Cap, transparent Piaggio Group · 827831 Available

  € 5,74

  Add to cart

10 Screw Available 018640

•

  Screw M6x50 Piaggio Group · 018640 · Quantity needed: 2 Available

  € 0,99

  Add to cart

11 Washer Available 012533

•

  Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available

  € 1,45

  Add to cart

12 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart

13 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart
