Exploded view — Locks

‹ Back to model

Aprilia STX 150 2014

Aprilia STX 150 2014

Locks

Products

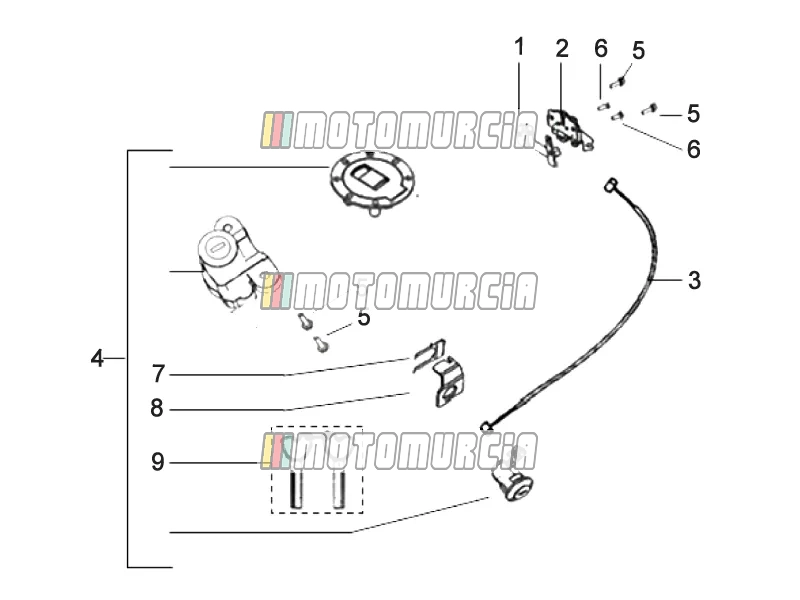

1 Plate Backorder RB000231

Lock Piaggio Group · RB000231 Backorder

€ 1,16

2 Lock attachment plate Backorder RB000232

Lock Mounting Piaggio Group · RB000232 Backorder

€ 8,37

3 Saddle release cable Backorder RB000434

Seat release cable Piaggio Group · RB000434 Backorder

€ 1,40

4 Lock hardware kit 2R000127 No longer available

2R000127 Lock hardware kit
No longer available

5 Screw (M6x16) Backorder RB000608

Hexagon Screw M6x16 Piaggio Group · RB000608 · Quantity needed: 2 Backorder

€ 0,99

6 Screw M5x10 Backorder RB000601

Screw Piaggio Group · RB000601 · Quantity needed: 2 Backorder

€ 0,99

7 Plate Backorder RB000230

Clamp Piaggio Group · RB000230 Backorder

€ 0,99

8 Plate Backorder RB000229

Hooks Piaggio Group · RB000229 Backorder

€ 0,99

9 Key blank Backorder 2R000262

Key Blank Piaggio Group · 2R000262 Backorder

€ 6,22
