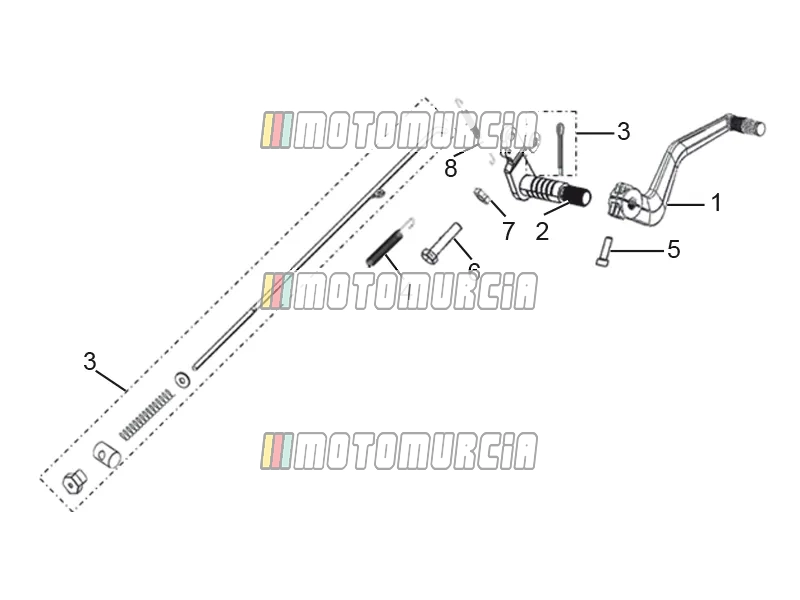

Exploded view — Rear Brake Pedal Assembly

‹ Back to model

Aprilia STX 150 2014

Aprilia STX 150 2014

Rear Brake Pedal Assembly

Products

1 Brake lever Backorder RB000264

Foot Brake Lever Piaggio Group · RB000264 Backorder

€ 40,56

2 Rear brake lever pin Backorder RB000265

Bolts Piaggio Group · RB000265 Backorder

€ 8,37

3 Rear brake arm rod Backorder RB000267

Bar Piaggio Group · RB000267 Backorder

€ 4,54

4 Brake return spring Backorder RB000196

Spring Piaggio Group · RB000196 Backorder

€ 1,23

5 Screw (M8x30) Backorder RB000585

Screw M8x30 Piaggio Group · RB000585 Backorder

€ 0,99

6 Hex screw M6x25 (M6x25) Backorder RB000629

Screw Piaggio Group · RB000629 Backorder

€ 0,99

7 Nut (M6) Backorder RB000653

Standard nut Piaggio Group · RB000653 Backorder

€ 0,99

8 Spring Backorder RB000450

Spring Piaggio Group · RB000450 Backorder

€ 0,99
