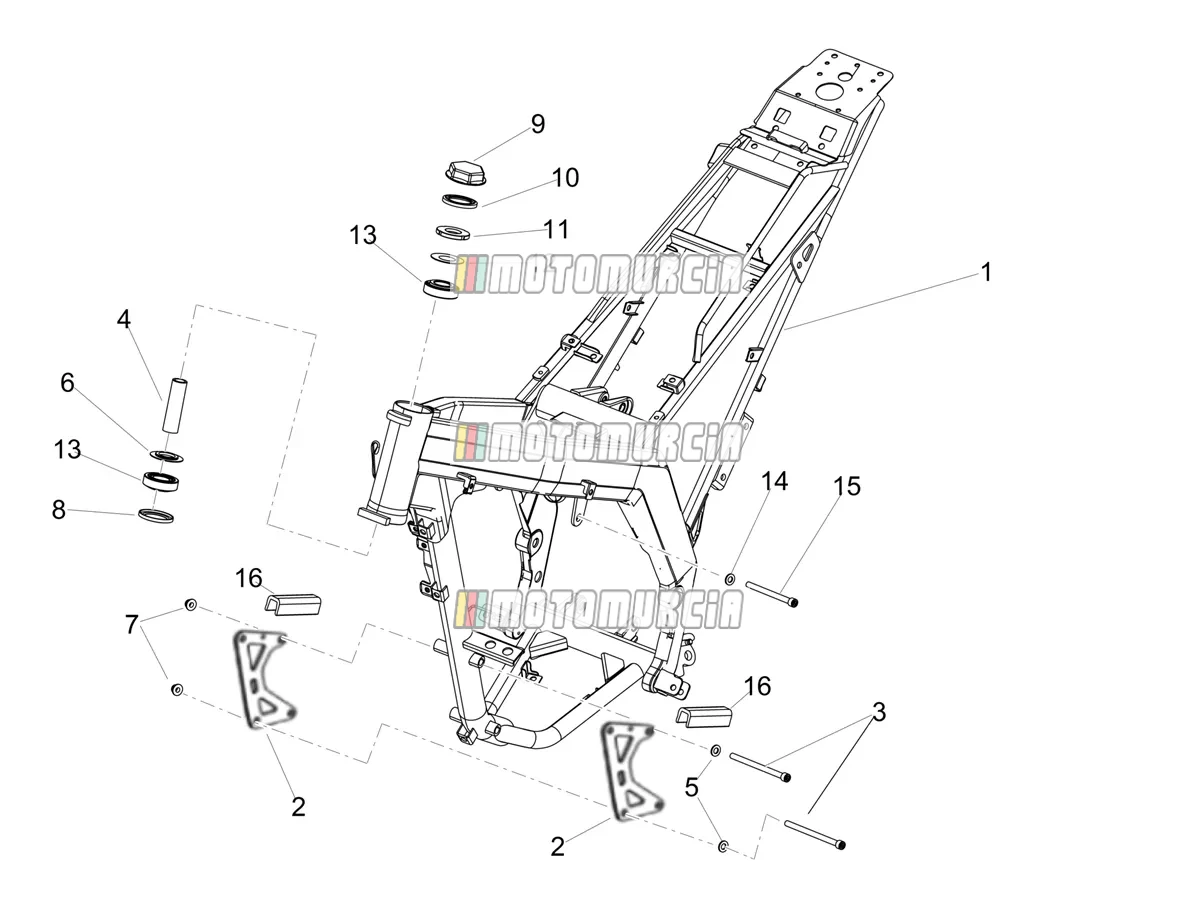

Exploded view — Frame/bodywork
‹ Back to model
Aprilia SX 125 E+ 2026
Products
1 1B012212 Backorder
-
Frame Piaggio Group · 1B012212 Backorder · Shipped in 2–4 weeks€ 1.207,04
2 Maintenance Available
-
Bracket Piaggio Group · 2R000474 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 55,72
3 Pin M10X100 Available
-
Screw M10x100 Piaggio Group · 2R000411 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 6,73
4 Pipe Available
-
Spacer Piaggio Group · 00H06303401 Available · Shipped in 3–5 working days€ 30,09
5 Washer φ10×φ20×2 Available
-
Washer Piaggio Group · 2R000420 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 0,99
6 Washer Available
-
Shim Piaggio Group · 00H06500451 Available · Shipped in 3–5 working days€ 4,96
7 Nut Available
-
Standard nut M10 Piaggio Group · 002440 · Quantity needed: 4 Available · Shipped in 3–5 working days€ 1,11
8 Washer Available
-
Shim Piaggio Group · 00008902630 Available · Shipped in 3–5 working days€ 2,04
9 Plug Available
-
Screw Plug Piaggio Group · 00H00201111 Available · Shipped in 3–5 working days€ 18,07
10 Washer Available
-
Washer Piaggio Group · 00H00202101 Available · Shipped in 3–5 working days€ 3,93
11 Nut Available
-
Standard nut Piaggio Group · 00H00208111 Available · Shipped in 3–5 working days€ 45,96
12 Dust cover Available
-
Dust guard Piaggio Group · 00D00200761 Available · Shipped in 3–5 working days€ 7,84
13 Steering bearing Available
-
Steering head bearing 6205, 25x52x15 mm Piaggio Group · 00000056205 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 13,82
14 Washer φ10×φ20×2 Available
-
Washer Piaggio Group · 2R000420 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 0,99
15 Screw Available
-
Screw M10x25 Piaggio Group · 2R000410 · Quantity needed: 2 Available · Shipped in 3–5 working days€ 3,09
16 Guard Backorder
-
Protection piece Piaggio Group · 2R000428 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks€ 6,49
