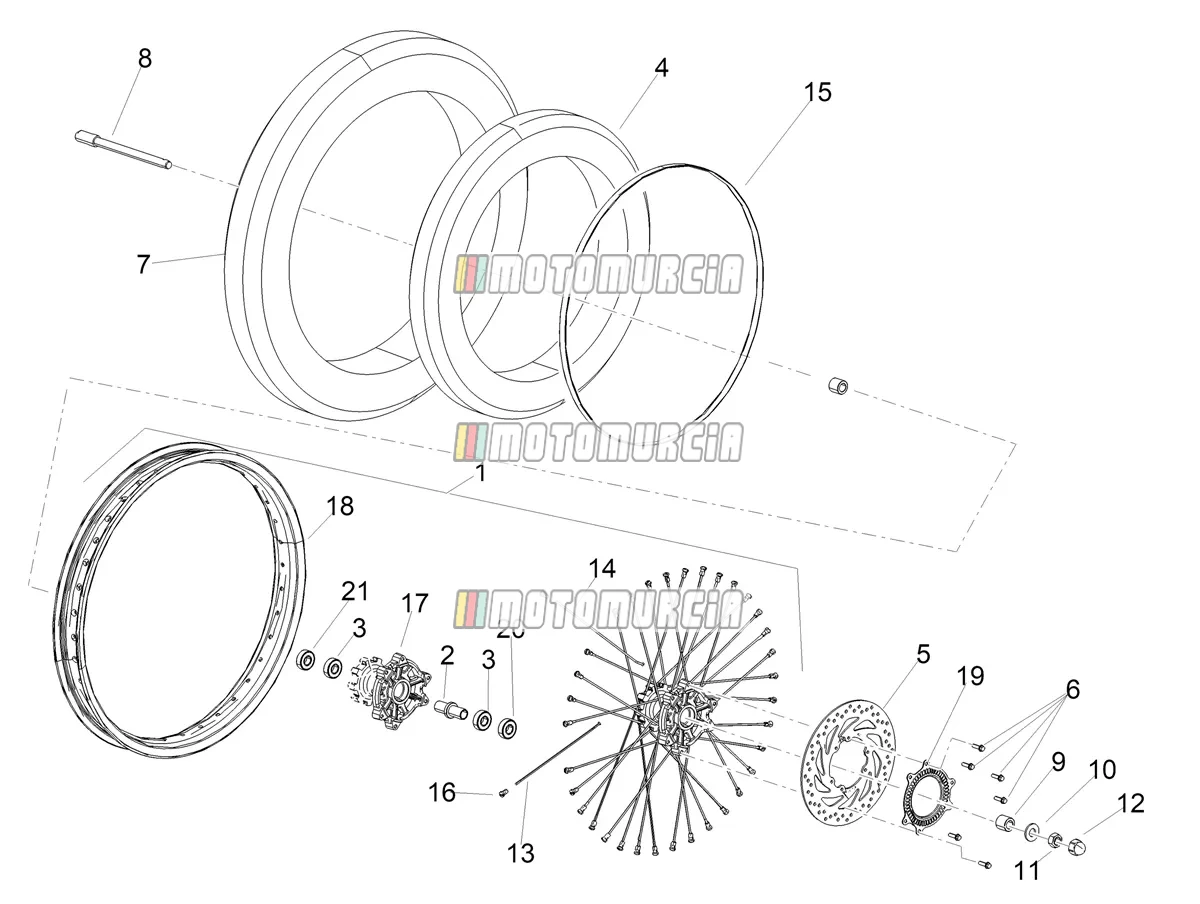

Exploded view — Front Wheel

‹ Back to model
Aprilia SX 125 E+ 2026 Aprilia SX 125 E+ 2026
Front Wheel

Products

1 1C007724 Backorder 1C007724
  • Rim complete, front Piaggio Group · 1C007724 Backorder · Shipped in 2–4 weeks
    € 754,18
  • Rim complete, front Piaggio Group · 1C008272 Available · Shipped in 3–5 working days
    € 677,60
2 1C007815 Available 1C007815
  • Spacer Piaggio Group · 1C007815 Available · Shipped in 3–5 working days
    € 7,96
3 1C007816 Available 1C007816
  • Wheel bearing Piaggio Group · 1C007816 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 25,53
4 Tubalar braid 3.25/3.50-17 Available 2R000364
5 Brake disc (300 mm) Available 865533
6 Hexagon convex big end screw M6x20 Available 271147
  • 271147 Hexagon convex big end screw M6x20 Quantity needed: 6
    Screw M6x20 Piaggio Group · 667152 ↻ Replaces 271147, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days
    € 1,48
7 Front tyre 100/80/17 Available 2R000354
8 Pin Available 2R000362
  • Wheel Axle front Piaggio Group · 2R000362 Available · Shipped in 3–5 working days
    € 28,28
9 Bush Available 2R000450
  • Sleeve Piaggio Group · 2R000450 Available · Shipped in 3–5 working days
    € 4,55
10 Washer Available 2R000423
  • Washer Piaggio Group · 2R000423 Available · Shipped in 3–5 working days
    € 1,06
11 Nut Available 00H00300672
12 Guard Available 00H01201331
  • Covering Cap Piaggio Group · 00H01201331 Available · Shipped in 3–5 working days
    € 2,35
13 1C008269 Available 1C008269
14 1C008268 Backorder 1C008268
15 Tyre flap Available RB000259
  • Wheel Trim Inch: 17\" Piaggio Group · RB000259 Available · Shipped in 3–5 working days
    € 6,17
16 Nipples Available 2R000452
  • Spoke Nipples thickness: 3,50 mm Piaggio Group · 2R000452 · Quantity needed: 36 Available · Shipped in 3–5 working days
    € 0,99
  • Spoke Nipples Piaggio Group · 2R000467 · Quantity needed: 36 Available · Shipped in 3–5 working days
    € 0,99
17 1C007817 Backorder 1C007817
  • Wheel hub front Piaggio Group · 1C007817 Backorder · Shipped in 2–4 weeks
    € 302,50
18 Wheel Available 2R000463
  • Rim front Piaggio Group · 2R000463 Available · Shipped in 3–5 working days
    € 446,30
19 Phonic wheel Available 2B004213
20 1C007820 Backorder 1C007820
  • Sealing ring Piaggio Group · 1C007820 Backorder · Shipped in 2–4 weeks
    € 6,58
21 1C007819 Backorder 1C007819
  • Sealing ring Piaggio Group · 1C007819 Backorder · Shipped in 2–4 weeks
    € 6,58
