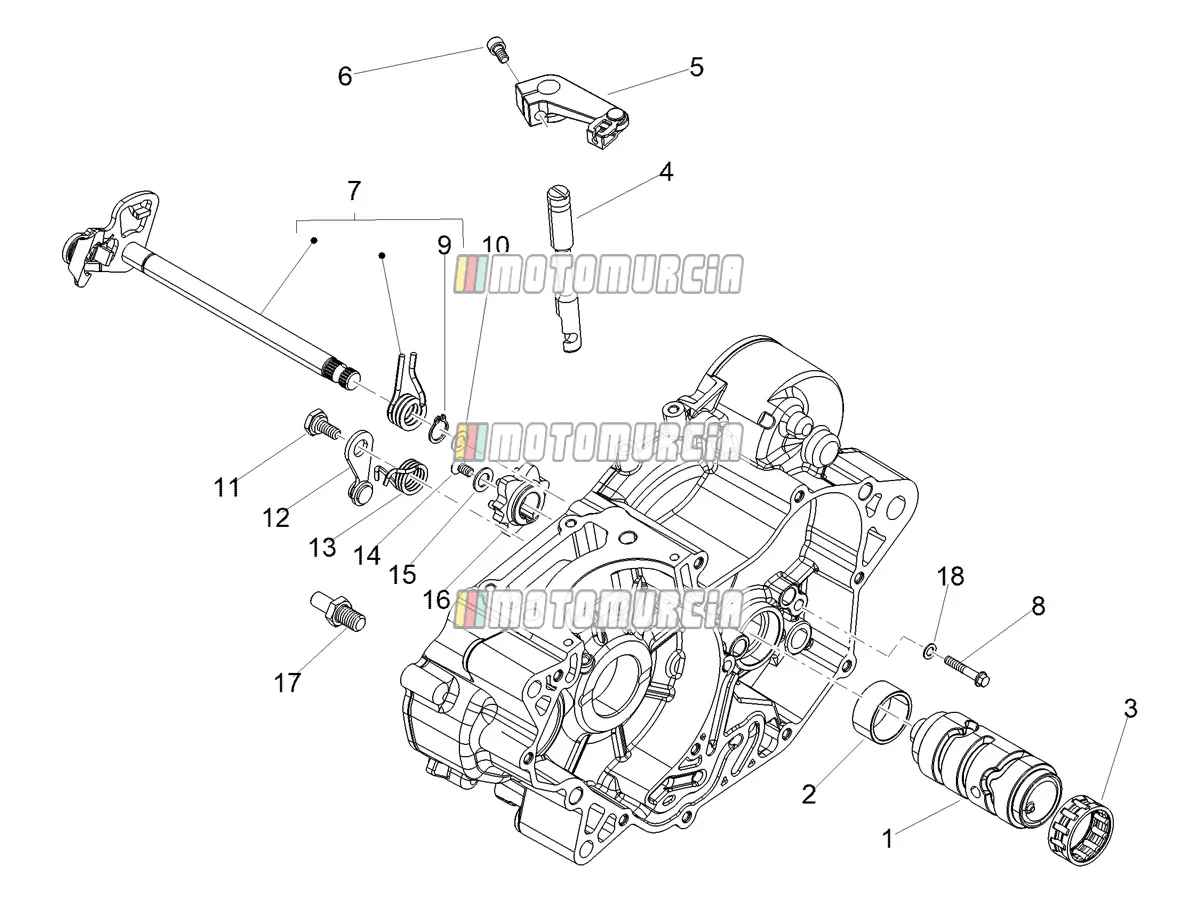

Exploded view — Transmission / Shift drum / Shift Fork

Products

1 Selector drum Available 1A007531

•

  Gear shift drum Piaggio Group · 1A007531 Available · Shipped in 3–5 working days

  € 21,32

  Add to cart

2 Bearing Available 898627

•

  Ball bearing Piaggio Group · 898627 Available · Shipped in 3–5 working days

  € 16,00

  Add to cart

3 Needle bearing Available 898628

•

  Needle bearing HK 22/10, 22x28x10 mm Piaggio Group · 898628 Available · Shipped in 3–5 working days

  € 11,64

  Add to cart

4 Clutch lever Available 847083

•

  Release Shaft Piaggio Group · 847083 Available · Shipped in 3–5 working days

  € 36,05

  Add to cart

5 Clutch relese shaft Available B043224

•

  Release Fork Piaggio Group · B043224 Available · Shipped in 3–5 working days

  € 43,77

  Add to cart

6 Screw Available 623920

•

  Torx screw M6x20 Piaggio Group · 623920 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

7 Shift shaft assy Available 1A006754

•

  Gear Shift Shaft Piaggio Group · 1A006754 Available · Shipped in 3–5 working days

  € 173,79

  Add to cart

8 Screw Backorder 274369

•

  Screw M6x12 Piaggio Group · 274369 Backorder · Shipped in 2–4 weeks

  € 0,99

  Add to cart

9 Ring Available 005970

•

  Snap-in Ring Piaggio Group · 005970 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

10 Washer Available 847228

• 847228 Washer


  No description available Piaggio Group · 8472286 ↻ Replaces 847228, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 4,99

  Add to cart

11 Special screw Available 1A007910

•

  Screw Piaggio Group · 1A007910 Available · Shipped in 3–5 working days

  € 5,25

  Add to cart

12 Lever Available 871554

•

  Lever Piaggio Group · 871554 Available · Shipped in 3–5 working days

  € 13,31

  Add to cart

13 Spring Available 847069

• 847069 Spring


  Spring Piaggio Group · 1A010665 ↻ Replaces 847069, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 2,35

  Add to cart

14 TE flanged screw M6x20 Available 1A006444

•

  Hexagon Screw M6x20 Piaggio Group · 1A006444 Available · Shipped in 3–5 working days

  € 2,20

  Add to cart

15 Washer Available 847214

•

  Washer Piaggio Group · 847214 Available · Shipped in 3–5 working days

  € 12,75

  Add to cart

16 Shift cam plate Available 899154

•

  Flange Piaggio Group · 899154 Available · Shipped in 3–5 working days

  € 46,46

  Add to cart

17 Gear selector pin Available B018064

•

  Adjustment Screw Piaggio Group · B018064 Available · Shipped in 3–5 working days

  € 15,03

  Add to cart

18 Washer Backorder 006125

•

  Washer Piaggio Group · 006125 Backorder · Shipped in 2–4 weeks

  € 1,75

  Add to cart
