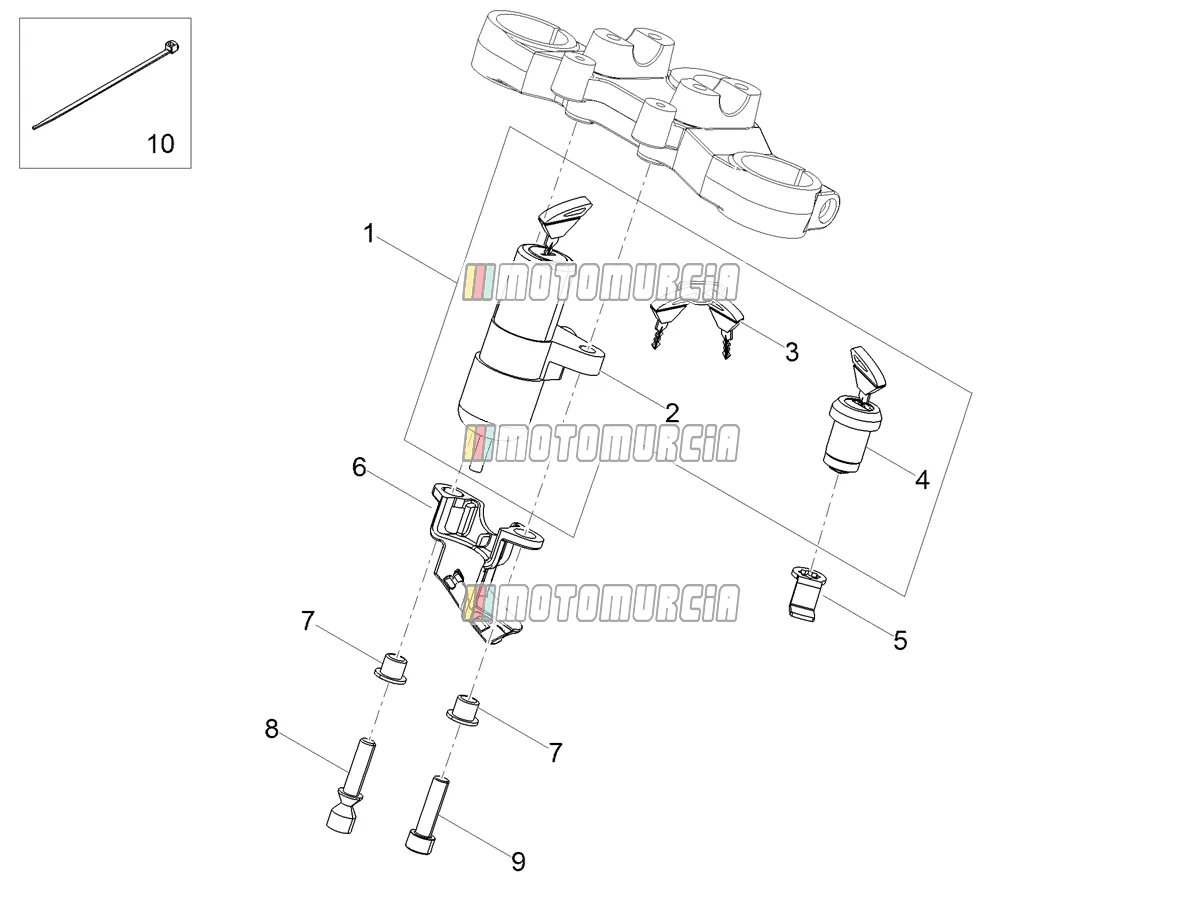

Exploded view — Locks

Products

1 Lock kit Available 861013

•

  Lock Set Piaggio Group · 861013 Available

  € 202,67

  Add to cart

2 Main switch Backorder 852163

•

  Steering Lock Piaggio Group · 852163 Backorder

  € 205,05

  Add to cart

3 Key blank Available AP8140710

•

  Key blank without transponder Piaggio Group · AP8140710 Available

  € 23,51

  Add to cart

4 Top box lock (Top box lock) 852164 No longer available

• 852164 Top box lock (Top box lock)
  No longer available

5 Lock lever Available 864819

•

  Hooks Piaggio Group · 864819 Available

  € 17,68

  Add to cart

6 Maintenance Backorder 2B004557

•

  Bracket, for ignition/steering lock Piaggio Group · 2B004557 Backorder

  € 8,86

  Add to cart

7 Spacer Available 858505

•

  Sleeve Piaggio Group · 858505 · Quantity needed: 2 Available

  € 4,01

  Add to cart

8 Shear rivet M8x28 Available AP8152238

•

  Shear / Snap Off Screw M8x28 Piaggio Group · AP8152238 Available

  € 11,83

  Add to cart

9 Screw (Right thread) Available AP8150107

•

  Screw M8x30 Piaggio Group · AP8150107 Available

  € 2,35

  Add to cart

10 Black hose 2.5X99 Available AP8120422

•

  Cable Ties black, length: 10,0cm Piaggio Group · AP8120422 · Quantity needed: 2 Available

  € 1,80

  Add to cart
