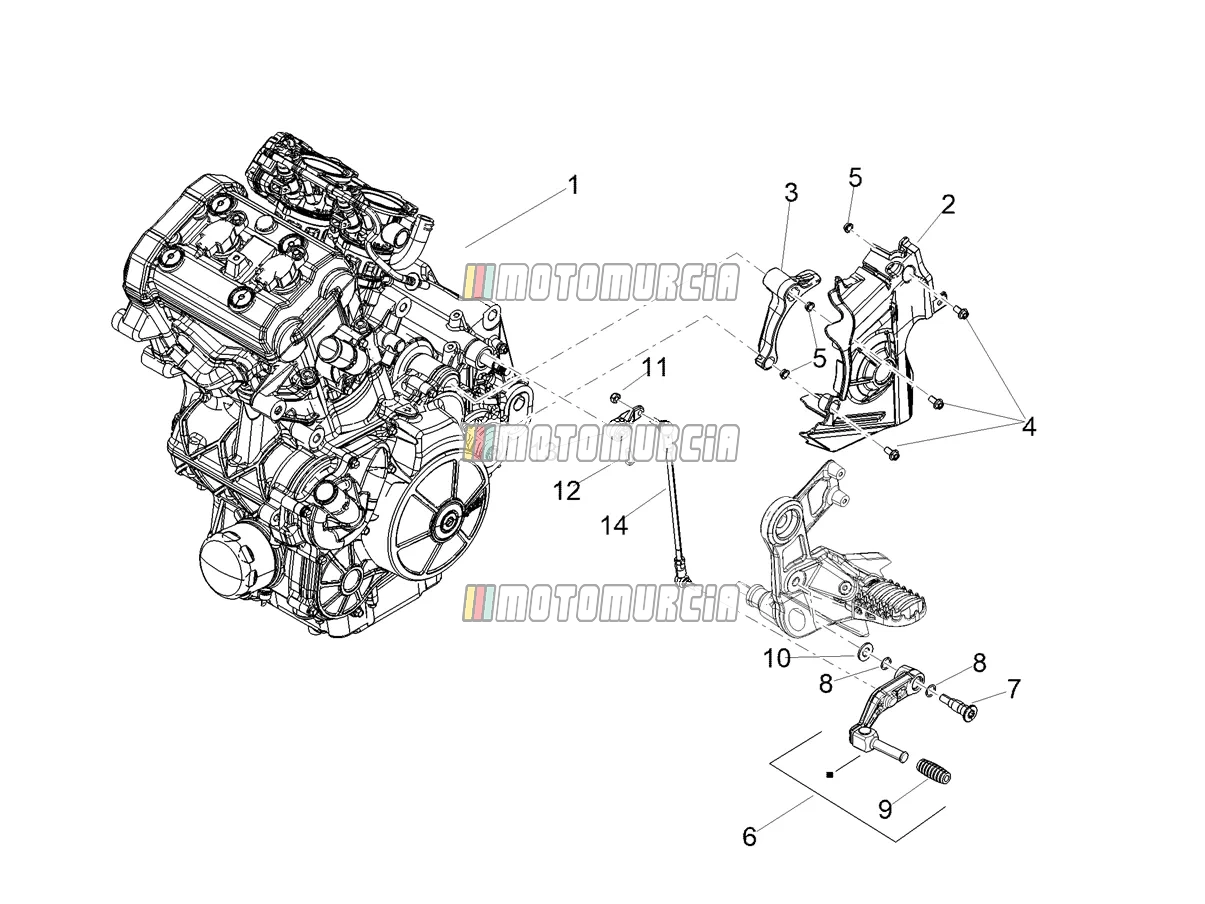

Exploded view — Engine-completing Part-lever

Products

0 Quick shift set (TUAREG 660) Backorder 2S001983

• 2S001983 Quick shift set (TUAREG 660)


  No description available Piaggio Group · 2S001983 Backorder · Shipped in 2–4 weeks

  € 202,34

  Add to cart


  Quick shift set (TUAREG 660) Piaggio Group · 2S001983 Backorder · Shipped in 2–4 weeks

  € 202,34

  Add to cart

1 660 engine Tuareg Backorder CM296618

• CM296618 660 engine Tuareg


  Engine 660 ccm, 4T 16V, Euro 5 Piaggio Group · CM2966186 ↻ Replaces CM296618, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 7.255,01

  Add to cart

2 Pinion crankcase Available 2B007311

•

  Rear Sprocket Cover Piaggio Group · 2B007311 Available · Shipped in 3–5 working days

  € 27,90

  Add to cart

3 Chain guide Available 2B005886

•

  Chain Guide Piaggio Group · 2B005886 Available · Shipped in 3–5 working days

  € 17,76

  Add to cart

4 Screw (6x12) Available AP8152277

• • Colour: Royal Hashemite Court
  • Country: Canada
  • Country: Germany
  • Country: United States of America


  Flanged Screw M6x12 Piaggio Group · AP8152277 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

5 T bush Available AP8121811

•

  Sleeve Piaggio Group · AP8121811 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

6 Gear change pedal Backorder 2B009924

•

  Gear Lever Piaggio Group · 2B009924 Backorder · Shipped in 2–4 weeks

  € 207,56

  Add to cart

7 Screw (lever / brake) 884033 No longer available

• 884033 Screw (lever / brake)
  • Standard rider footrests
  No longer available

8 O-Ring (11,11x1,78) Available AP8144007

• • ABS version
  • Standard rider footrests
  • Standard version


  O-Ring 11,11x1,78 mm Piaggio Group · AP8144007 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,61

  Add to cart

9 Lever rubber Available AP8120912

• • Standard rider footrests


  Pedal Rubber Piaggio Group · AP8120912 Available · Shipped in 3–5 working days

  € 4,51

  Add to cart

10 Washer Available AP8150020

• • Country: United States of America


  Shim 10,5x21x2 mm Piaggio Group · AP8150020 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

11 Nut Available AP8150430

• • Colour: """GARDA"" Bluevert 2001"
  • Colour: Tuscany Tibet 2003


  Standard nut Piaggio Group · AP8150430 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

12 Screw Available AP8150044

• • Colour: Tuscany Tibet 2003
  • Year of manufacture: 1996
  • Year of manufacture: 2009


  Screw M6x20 Piaggio Group · AP8150044 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

13 Gear change lever Backorder 2B010035

• 2B010035 Gear change lever


  No description available Piaggio Group · 2B011146 ↻ Replaces 2B010035, which the manufacturer no longer supplies. Backorder · Shipped in 2–4 weeks

  € 64,83

  Add to cart

14 Gear control tie rod Available 2B009321

•

  Drawbar Piaggio Group · 2B009321 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 65,09

  Add to cart
