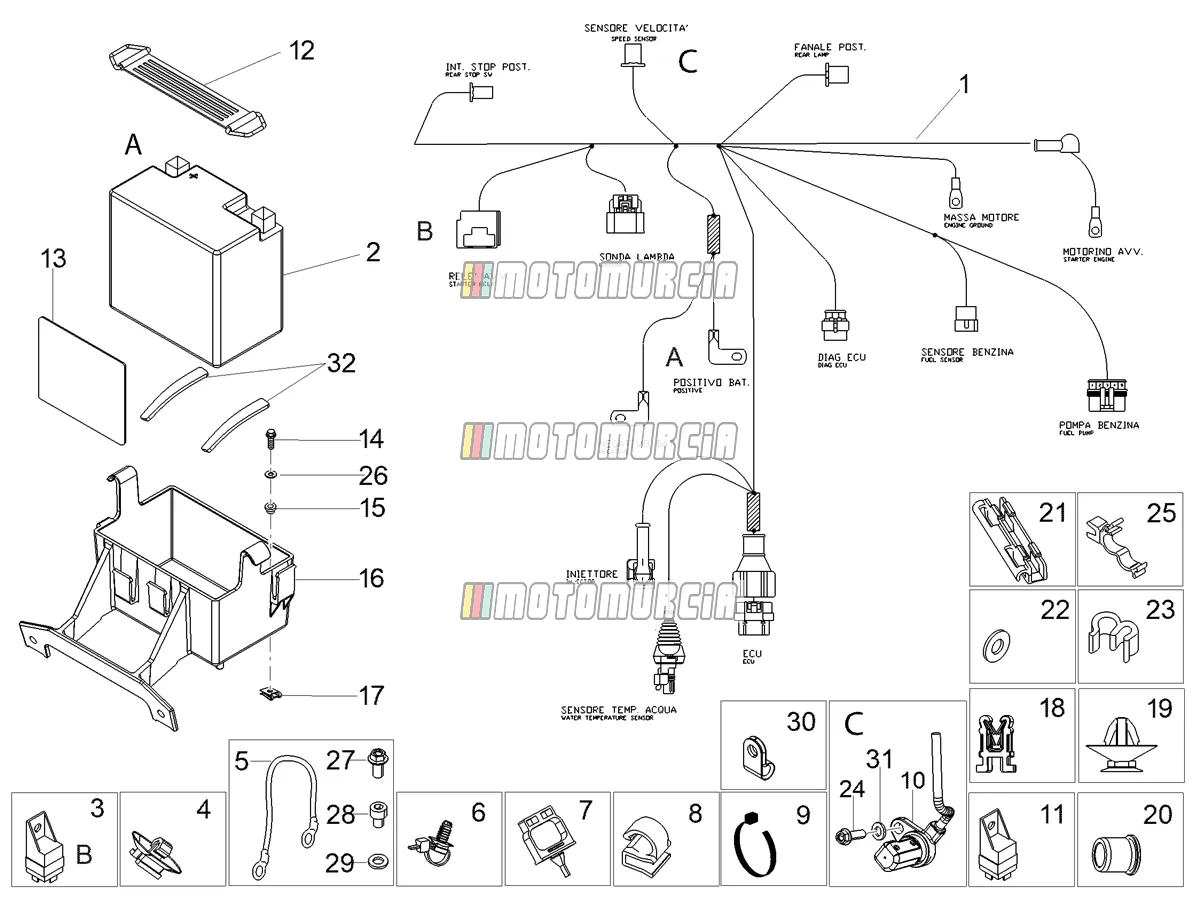

Exploded view — Rear Electrical System

‹ Back to model
Aprilia Tuono 125 E5+ (EU) 2025 Aprilia Tuono 125 E5+ (EU) 2025
Rear Electrical System

Products

1 GRUPPO CAVETTI Backorder 1D005175
  • GRUPPO CAVETTI Piaggio Group · 1D005175 Backorder · Shipped in 2–4 weeks
    € 539,09
2 Battery Available 1R000317
3 Relay - starter Available 58115R
    • Carburettor version (C364M)
    Starting Relay 12 V, 80 A Piaggio Group · 58115R Available · Shipped in 3–5 working days
    € 24,91

    Alternatives from other brands

    Start Relay Vespa GTS 300 IE Athena · S410480402002 Backorder · Shipped in 2–5 weeks
    € 12,10
4 Molletta Available B005629
  • Clip Piaggio Group · B005629 Available · Shipped in 3–5 working days
    € 4,48
5 Battery negative leads Available AP8112458
  • Battery Cable (-) Piaggio Group · AP8112458 Available · Shipped in 3–5 working days
    € 35,38
6 Wiring clip Available 1D001143
    • Country: China
    Clamp Piaggio Group · 1D001143 Available · Shipped in 3–5 working days
    € 1,45
7 Elastic support Available 291017
8 Black cable guide Available AP8201727
  • Cable Guide Piaggio Group · AP8201727 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,65
9 Clamp Available AP8102386
    • ABS version
    • Standard version
    Clamp 155x2 mm Piaggio Group · AP8102386 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
10 ABS front sensor Available 1D003350
  • ABS Sensor Piaggio Group · 1D003350 Available · Shipped in 3–5 working days
    € 33,05
11 Intermittent Available 2D000667
  • Indicator Relay Piaggio Group · 2D000667 Available · Shipped in 3–5 working days
    € 49,74
12 Belt Available 218812
13 Adhesive sponge 6x30 Backorder AP8117041
    • Year of manufacture: 1998
    • Year of manufacture: 2003
    • Country: United States of America
    Glue Sponge Piaggio Group · AP8117041 Backorder · Shipped in 2–4 weeks
    € 33,66
14 Screw Available AP8152279
    • Colour: Public Authorities Mauritius
    Flanged Screw M6x20 Piaggio Group · AP8152279 Available · Shipped in 3–5 working days
    € 2,18
15 Spacer Available AP8121728
  • Sleeve Piaggio Group · AP8121728 Available · Shipped in 3–5 working days
    € 2,18
16 Battery holder Backorder 898363
  • Battery Box Piaggio Group · 898363 Backorder · Shipped in 2–4 weeks
    € 24,27
17 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days
    € 2,04
18 Plugs spring Available 1D000680
    • ABS version
    • Touring ABS version
    Clamp Piaggio Group · 1D000680 Available · Shipped in 3–5 working days
    € 4,17
19 Instrument support Available 890760
  • Clip Piaggio Group · 890760 Available · Shipped in 3–5 working days
    € 18,14
20 Spacer Available 2B003229
  • Spacer Piaggio Group · 2B003229 Available · Shipped in 3–5 working days
    € 7,27
21 Fairlead Available 896944
  • Cable Guide Piaggio Group · 896944 Available · Shipped in 3–5 working days
    € 8,48
22 Washer Available 669282
    • ABS version
    Washer Piaggio Group · 669282 Available · Shipped in 3–5 working days
    € 2,63
23 Fairlead Available 894704
    • ABS version
    • ABS version
    • Year of manufacture: 2010
    Cable Guide Piaggio Group · 894704 · Quantity needed: 5 Available · Shipped in 3–5 working days
    € 15,03
24 Screw TEFL M5X16 Available 2B002567
  • Screw Piaggio Group · 2B002567 Available · Shipped in 3–5 working days
    € 0,99
25 Spring Backorder AP9100765
  • Clip Piaggio Group · AP9100765 · Quantity needed: 3 Backorder · Shipped in 2–4 weeks
    € 32,00
26 Washer Available GU951291816
  • Washer Piaggio Group · GU951291816 Available · Shipped in 3–5 working days
    € 2,72
27 Screw (6x12) Available AP8152277
    • Colour: Royal Hashemite Court
    • Country: Canada
    • Country: Germany
    • Country: United States of America
    Flanged Screw M6x12 Piaggio Group · AP8152277 Available · Shipped in 3–5 working days
    € 2,18
28 Screw Available AP8152123
  • Screw M6x8 Piaggio Group · AP8152123 Available · Shipped in 3–5 working days
    € 1,65
29 Washer Available AP8150380
  • Shim 12,5x6,4 mm Piaggio Group · AP8150380 Available · Shipped in 3–5 working days
    € 0,99
30 Fastener cable Backorder 2B013024
  • Fastener cable Piaggio Group · 2B013024 Backorder · Shipped in 2–4 weeks
    € 2,04
31 Washer Available AP8150177
    • Colour: Limited Edition green 2013
    • Old version
    • Rear disc brake
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Shim Piaggio Group · AP8150177 Available · Shipped in 3–5 working days
    € 0,99
32 Damper Available AP8117033
    • Colour: Multimedia platform
    • ETV Capo Nord RALLY/RAID version
    • ETV Capo Nord Standard version
    Thermal Protection Piaggio Group · AP8117033 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 8,66
