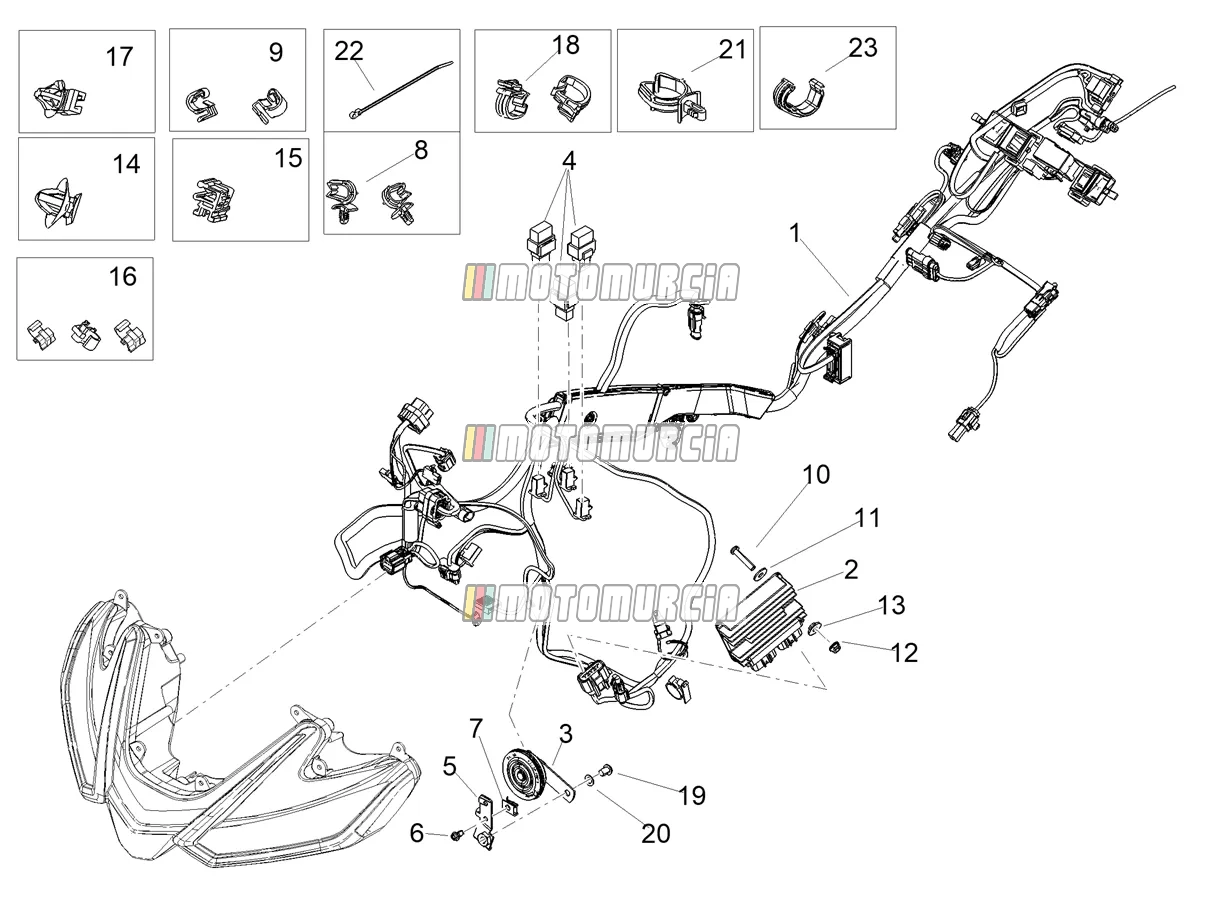

Exploded view — Front Electrical System
‹ Back to model
Aprilia Tuono V4 1100 (EU) 2024
Products
1 Main wiring harness Backorder
-
Wiring harness Piaggio Group · 2D000595 Backorder€ 893,63
2 Voltage regulator Available
-
Regulator Piaggio Group · 1A012332 Available€ 192,47
3 Horn Available
4 Relay - starter Available
-
Starting Relay 12 V, 30 A Piaggio Group · AP8224462 Available€ 25,36
5 Horn support bracket Backorder
-
Bracket Piaggio Group · 2B008699 Backorder€ 15,63
6 Screw (M6x12) Available
-
Flanged Screw M6x12 Piaggio Group · 2B005143 Available€ 0,99
7 Washer (spring) Available
-
Shim 8,5x15x0,8 mm Piaggio Group · AP8150376 Available€ 2,04
8 Cable-guide Available
-
Cable Guide Ø 18,00 mm Piaggio Group · AP8221310 · Quantity needed: 5 Available€ 3,87
9 Clamp Available
-
Clamp Piaggio Group · CM013201 · Quantity needed: 4 Available€ 1,32
10 Screw (M6x30) Available
-
Screw M6x30 Piaggio Group · AP8152128 · Quantity needed: 2 Available€ 2,18
11 Washer Available
-
Shim 6,6x18 mm Piaggio Group · AP8150179 · Quantity needed: 2 Available€ 1,48
12 Nut Available
-
Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available€ 2,18
13 Spacer Available
-
Sleeve Piaggio Group · AP8121075 · Quantity needed: 2 Available€ 2,35
14 Instrument support Available
-
Clip Piaggio Group · 890760 · Quantity needed: 3 Available€ 18,14
15 Connecting Available
-
Clip Piaggio Group · 2D000348 Available€ 1,38
16 4 - Sheet edge spring Available
-
Clamp Piaggio Group · CM013203 · Quantity needed: 4 Available€ 3,18
17 Clamp Available
-
Clip Piaggio Group · 1D000129 Available€ 2,27
18 4 - Sheet edge spring Available
-
Clamp Piaggio Group · CM013203 Available€ 3,18
19 Screw (M8x12) Available
-
Screw M8x12 Piaggio Group · AP8152055 Available€ 14,91
20 Washer (spring) Available
-
Shim 8,5x15x0,8 mm Piaggio Group · AP8150376 Available€ 2,04
21 Fairlead d18 Available
-
Cable Guide Ø 10,50 mm Piaggio Group · AP8221311 · Quantity needed: 4 Available€ 0,99
22 Black hose Backorder
-
Clamp Piaggio Group · AP8141017 · Quantity needed: 3 Backorder€ 0,99
23 Fairlead Available
-
Cable Guide Piaggio Group · 2B006134 · Quantity needed: 4 Available€ 7,51
