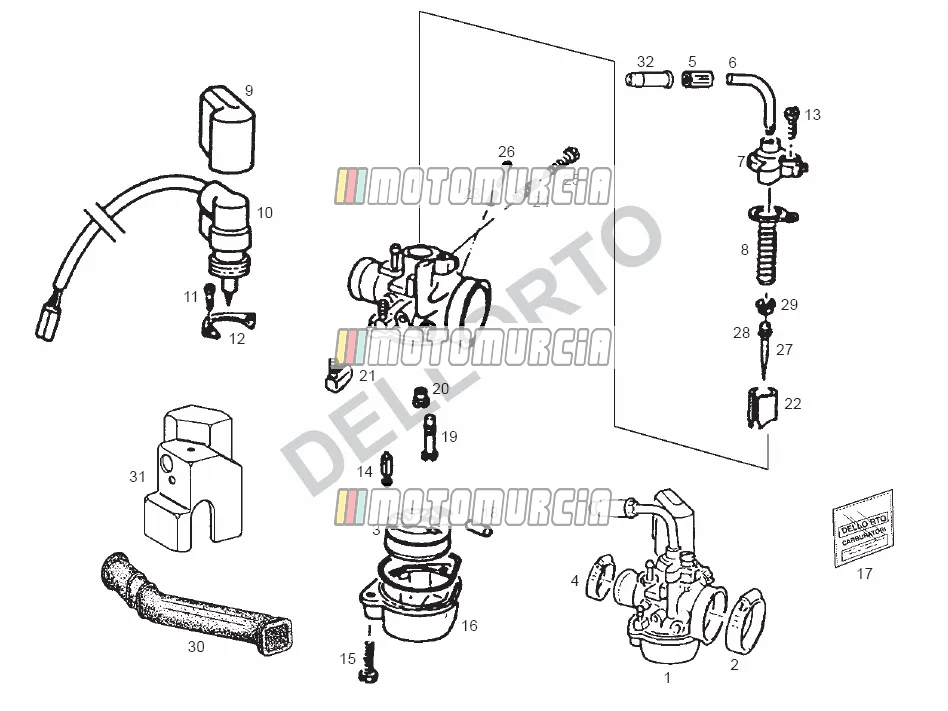

Exploded view — Carburettor

‹ Back to model
Derbi Atlantis 50 2T Bullet 2005 Derbi Atlantis 50 2T Bullet 2005
Carburettor

Products

1 Carburettor (PHVA 17,5 RD) Available 874672
  • Carburettor PHVA 17,5 Piaggio Group · 874672 Available
    € 292,75
  • 82623R Carburettor
    No longer available
2 Hose clamp 290X4,8 Backorder 00F00900531
3 Float Available 482916
4 Clamp Available 825865
  • Clamp Piaggio Group · 825865 Available
    € 2,47
5 Screw Available 288868
  • Screw Piaggio Group · 288868 Available
    € 6,73
6 Baffle tube Available 113903
  • Guide tube Piaggio Group · 113903 Available
    € 6,92
7 Gas valve cover Available 431654
8 Valve gas return spring Available 482942
  • Spring Piaggio Group · 482942 Available
    € 1,69
9 Guard 288883 No longer available
  • 288883 Guard
    No longer available
10 Starter plunger Available CM105905
11 Screw Available 289575
  • Screw Piaggio Group · 289575 Available
    € 2,41
12 Plate Available 288863
  • Bracket Piaggio Group · 288863 Available
    € 2,77
13 Screw Available 288865
  • Screw Piaggio Group · 288865 Available
    € 1,40
14 Fuel closing needle Available CM128501
  • Float Needle Piaggio Group · CM128501 Available
    € 13,94
15 Screw Available 288862
  • Screw Piaggio Group · 288862 Available
    € 3,36
16 Fuel chamber Available 484704
17 Gasket envelope (Dellorto PHVA) Available 498409
18 Float pin Available 288881
  • Pin Piaggio Group · 288881 Available
    € 2,06
19 Idle jet (32) Available CM102103
  • Idle Jet Piaggio Group · CM102103 Available
    € 4,34
20 Main jet (60 - M6) Available CM101711
21 Complete oil valve Available 436206
  • Oil Valve Piaggio Group · 436206 Available
    € 13,79
22 Gas valve (17.5) Available CM141710
23 Spring Available 085285
  • Spring Piaggio Group · 085285 Available
    € 1,37
24 Spring Available 152608
  • Spring Piaggio Group · 152608 Available
    € 1,40
25 Gas valve adj.screw Available 828074
26 Air adjuster screw Available CM107701
27 Conical pin Available CM107510
28 Seeger Available 288872
29 Conical pin clip Available 288873
30 Air duct Available 488129
  • Hose Piaggio Group · 488129 Available
    € 17,44
31 COOLING HOOD 00G06002151 No longer available
  • 00G06002151 COOLING HOOD
    No longer available
32 Throttle cable cap Available 875551
  • Bonnet Piaggio Group · 875551 Available
    € 8,74

More drawings of this model

View all →
