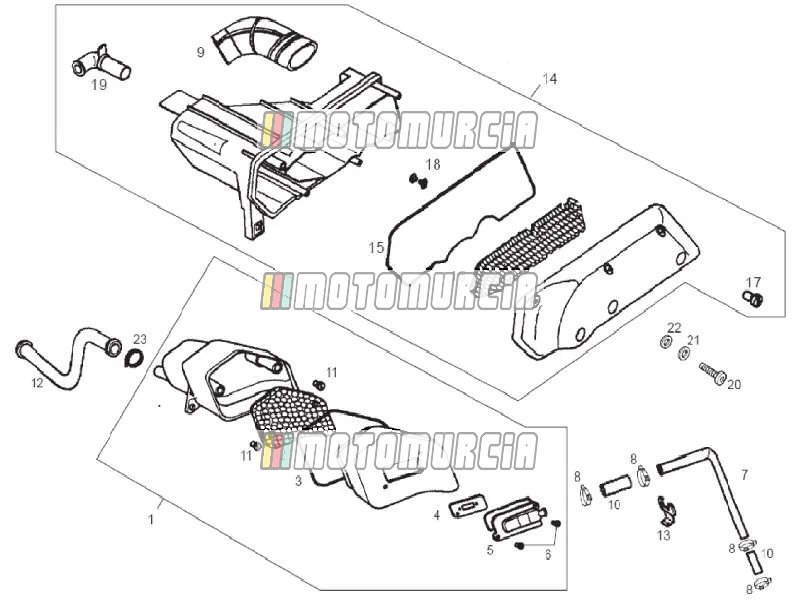

Exploded view — Air Filter

‹ Back to model
Derbi Atlantis 50 2T Bullet 2010 Derbi Atlantis 50 2T Bullet 2010
Air Filter

Products

1 Secondary air box 8318595 No longer available
  • 8318595 Secondary air box
    No longer available
2 Filter sas Available 486942
3 Gasket Available 486943
  • Gasket Piaggio Group · 486943 Available
    € 10,30
4 Diaphragm Available 82758R
5 Cover sas Available 827209
  • Lid Piaggio Group · 827209 Available
    € 23,70
6 Screw Available 478533
  • Thread Screw Piaggio Group · 478533 Available
    € 1,26
7 Air pipe sas 833740 No longer available
  • 833740 Air pipe sas
    No longer available
8 Clamp Available 827444
9 Air bellow Available 487592
  • Sleeve Piaggio Group · 487592 Available
    € 19,75
10 Hose Available 827443
  • Pipe Piaggio Group · 827443 Available
    € 18,53
11 Screw Available 015597
  • Screw M5x25 Piaggio Group · 015597 Available
    € 1,75
12 Intake pipe sas Available 827208
  • Inlet pipe Piaggio Group · 827208 Available
    € 7,14
13 Fairlead Available 827794
  • Cable Guide Piaggio Group · 827794 Available
    € 2,48
14 Air filter box Available 1A017938
15 Seal air filter box Available 487718
  • Gasket Piaggio Group · 487718 Available
    € 7,65
16 Air filter Available 1A0122830P
17 Screw Available 258146
  • Thread Screw Piaggio Group · 258146 Available
    € 0,99
18 Spacer Available 830056
  • Sleeve Piaggio Group · 830056 Available
    € 1,48
19 Intake hose Available 829715
  • Inlet pipe Piaggio Group · 829715 Available
    € 17,29
20 TBIC screw 00092065014 No longer available
  • 00092065014 TBIC screw
    No longer available
21 Washer Available 00402060001
22 Flat washer 00432060002 No longer available
  • 00432060002 Flat washer
    No longer available
23 Clamp Available CM001905
  • Hose Clamp Piaggio Group · CM001905 Available
    € 1,82

More drawings of this model

View all →
