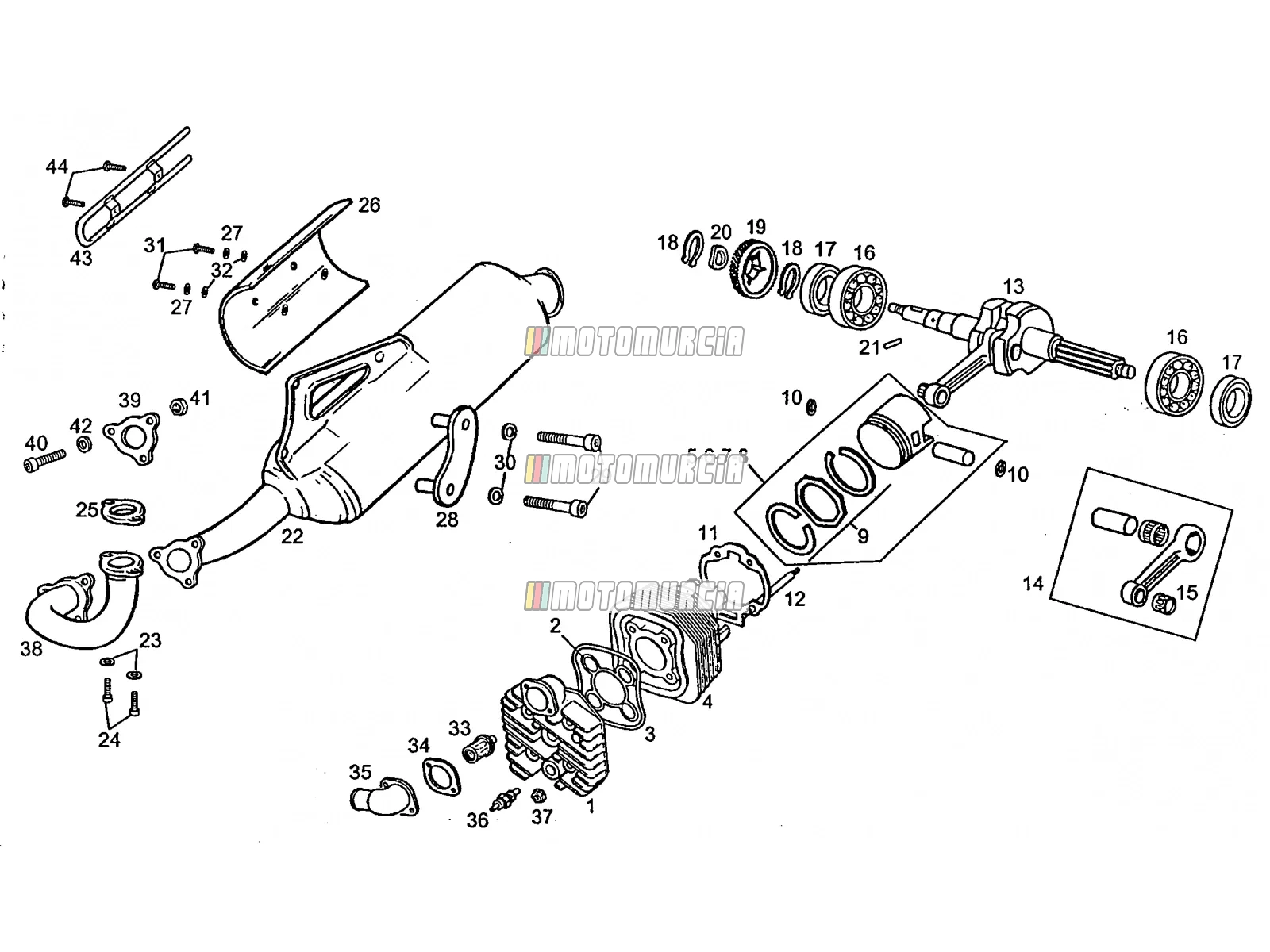

Exploded view — Drive Shaft - Cylinder - Piston

Products

01 Cylinder head 00G02503011 No longer available

• 00G02503011 Cylinder head
  No longer available

02 Cylinder head gasket Available 00G02501021

•

  Cylinder Head Gasket Piaggio Group · 00G02501021 Available

  € 10,37

  Add to cart

03 Cylinder head gasket Available 00G02500781

•

  Cylinder Head Gasket Piaggio Group · 00G02500781 Available

  € 8,91

  Add to cart

04 Cylinder kit 00G05015121 No longer available

• 00G05015121 Cylinder kit
  No longer available
• 00G05012121 Cylinder kit
  No longer available

05 PISTON(A) 00G02507091 No longer available

• 00G02507091 PISTON(A)
  No longer available

06 PISTON(B) 00G02508091 No longer available

• 00G02508091 PISTON(B)
  No longer available

07 PISTON(C) 00G02509091 No longer available

• 00G02509091 PISTON(C)
  No longer available

08 PISTON(D) Backorder 00G02510091

•

  Piston Cat. D Piaggio Group · 00G02510091 Backorder

  € 52,03

  Add to cart

09 RING, SET, PISTON 00G05006101 No longer available

• 00G05006101 RING, SET, PISTON
  No longer available

10 Seeger Available 00G02501131

•

  Piston Clip Piaggio Group · 00G02501131 Available

  € 0,99

  Add to cart

11 Gasket - cylinder base 00G02502041 No longer available

• 00G02502041 Gasket - cylinder base
  No longer available

12 CYLINDER STUD 00G03002051 No longer available

• 00G03002051 CYLINDER STUD
  No longer available

13 Crankshaft 00G02502141 No longer available

• 00G02502141 Crankshaft
  No longer available

14 Connecting rod 00G05001011 No longer available

• 00G05001011 Connecting rod
  No longer available

15 CONN ROD BIG END NEEDLE BEARIN Backorder 00G02500171

•

  Big end bearing Piaggio Group · 00G02500171 Backorder

  € 26,34

  Add to cart

16 Crankshaft bearing Available 8471726

•

  Crankshaft bearing 6204 C4, 20x47x14 mm Piaggio Group · 8471726 Available

  € 23,17

  Add to cart

17 SEAL, CRANKSHAFT 20X38X7 Available 00G02501231

•

  Shaft Seal 20x38 mm Piaggio Group · 00G02501231 Available

  € 5,52

  Add to cart

18 SHAFT SAFETY CIRCLIP 00000047119 No longer available

• 00000047119 SHAFT SAFETY CIRCLIP
  No longer available

19 Screw Available 00G03701101

•

  Screw Piaggio Group · 00G03701101 Available

  € 28,44

  Add to cart

20 OIL PUMP CTRL SCREW SEC WASHR 00G03700631 No longer available

• 00G03700631 OIL PUMP CTRL SCREW SEC WASHR
  No longer available

21 ROLLER 00066031200 No longer available

• 00066031200 ROLLER
  No longer available

22 EXHAUST PIPE AND MUFFLER ASSY 00G03435601 No longer available

• 00G03435601 EXHAUST PIPE AND MUFFLER ASSY
  No longer available
• 00G03434601 EXHAUST PIPE AND MUFFLER ASSY
  No longer available
• 00G03433601 EXHAUST PIPE AND MUFFLER ASSY
  No longer available

23 Washer Available 00000031060

•

  Washer Ø 6,00 mm Piaggio Group · 00000031060 Available

  € 0,99

  Add to cart

24 ALLEN SCREN 6M100X20 00000004620 No longer available

• 00000004620 ALLEN SCREN 6M100X20
  No longer available

25 Exhaust gasket Available 00G03400041

•

  Exhaust Manifold Gasket Piaggio Group · 00G03400041 Available

  € 4,57

  Add to cart

26 SILENCER SHIELD 00G01813391 No longer available

• 00G01813391 SILENCER SHIELD
  No longer available
•

  Heat Shield Piaggio Group · 00G01814391 Backorder

  € 46,66

  Add to cart

27 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

28 INNER SILENCER BRACKET 00G04200641 No longer available

• 00G04200641 INNER SILENCER BRACKET
  No longer available

29 Screw 00004006500 No longer available

• 00004006500 Screw
  No longer available

30 SPRING WASHER D.10 DIN-127-B 00000033100 No longer available

• 00000033100 SPRING WASHER D.10 DIN-127-B
  No longer available

31 Screw Available 00012151500

•

  Screw M5 Piaggio Group · 00012151500 Available

  € 2,47

  Add to cart

32 Washer Available 00F04201361

•

  Washer Piaggio Group · 00F04201361 Available

  € 1,44

  Add to cart

33 Thermostat Backorder 483395

•

  Thermostat Piaggio Group · 483395 Backorder

  € 50,92

  Add to cart

34 RACORD 00G05000521 No longer available

• 00G05000521 RACORD
  No longer available

35 RACORD 00G05000511 No longer available

• 00G05000511 RACORD
  No longer available

36 CLUTCH PLATE 00H02301441 No longer available

• 00H02301441 CLUTCH PLATE
  No longer available

37 Nut Available 00026006002

•

  Standard nut Piaggio Group · 00026006002 Available

  € 1,48

  Add to cart

38 TAIL PIPE ASSEMBLY 00G03434011 No longer available

• 00G03434011 TAIL PIPE ASSEMBLY
  No longer available
• 00G03437011 EXHAUST PIPE AND MUFFLER ASSY
  No longer available

39 Exhaust gasket 00G03400321 No longer available

• 00G03400321 Exhaust gasket
  No longer available

40 Screw Available 018639

•

  Flanged Screw M6x20 Piaggio Group · 018639 Available

  € 2,77

  Add to cart

41 Nut Available 219277

•

  Standard nut Piaggio Group · 219277 Available

  € 0,99

  Add to cart

42 Washer Available 00442060002

•

  Washer Ø 6,00 mm Piaggio Group · 00442060002 Available

  € 1,72

  Add to cart

43 SILENCER PROTECTOR BAR 00G03400891 No longer available

• 00G03400891 SILENCER PROTECTOR BAR
  No longer available

44 ROUNDHEAD PHILIPS SCREW 4MM-7 Available 00000012420

•

  Screw Piaggio Group · 00000012420 Available

  € 1,37

  Add to cart
