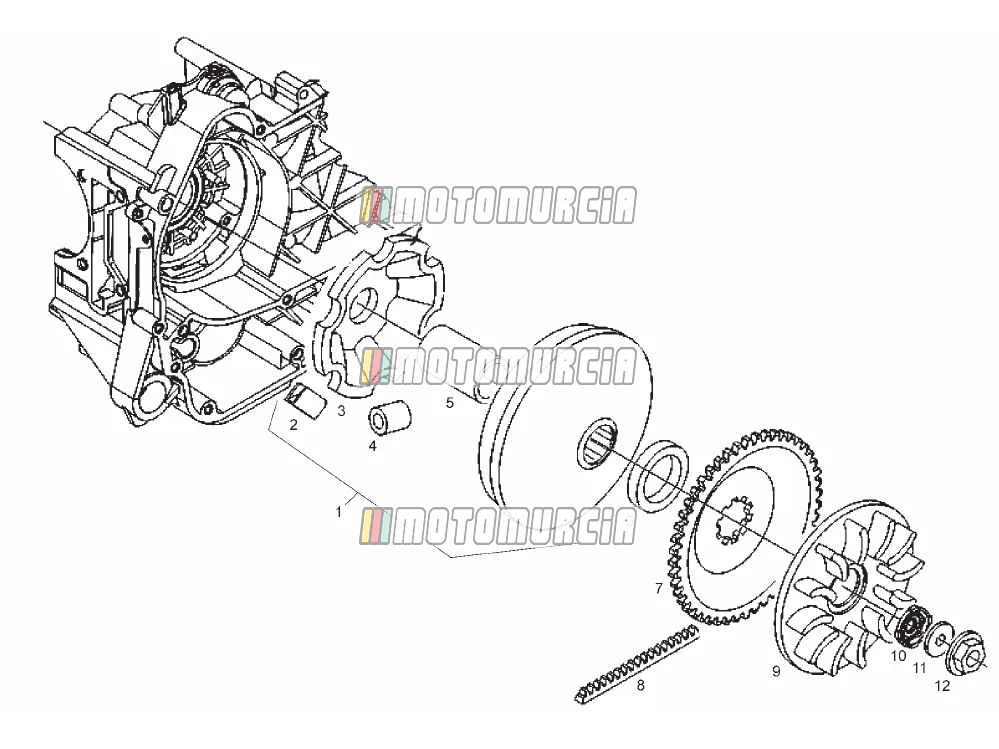

Exploded view — Distribution Pulley

Products

1 Variator (19x15.5 - 6,4g) Available CM110301

• • Carburettor version (C364M)
  • Limited version 30 km/h
  • Limited version 45 km/h
  • Country: Australia
  • Country: Denmark
  • Country: Europe


  Variator with 6 rollers Piaggio Group · CM110301 Available · Shipped in 3–5 working days

  € 76,07

  Add to cart

2 Variator slider Available 289931

•

  Slide Piaggio Group · 289931 Available · Shipped in 3–5 working days

  € 1,23

  Add to cart

3 Roller housing back plate Available 480227

•

  Calotte Piaggio Group · 480227 Available · Shipped in 3–5 working days

  € 15,60

  Add to cart

4 Roller weights (19x15.5 - 6,4g) Available CM1102025

• • Carburettor version (C364M)
  • Limited version 30 km/h
  • Limited version 45 km/h
  • Country: Australia
  • Country: Denmark
  • Country: Europe


  Variator weights 19x15,5 mm, 6,0 g, Content: 6 Stk Piaggio Group · CM1102025 Available · Shipped in 3–5 working days

  € 18,34

  Add to cart

5 Spacer Available 480230

•

  Converter Hub Piaggio Group · 480230 Available · Shipped in 3–5 working days

  € 38,19

  Add to cart

6 Spacer CM100601 No longer available

• CM100601 Spacer
  • Country: Canada
  • Country: Japan
  • Country: United States of America
  No longer available

7 V-Belt Pulley Available 479561

•

  Toothed Pulley Wheel Piaggio Group · 479561 Available · Shipped in 3–5 working days

  € 28,70

  Add to cart

8 V-Belt Available 842907

•

  V-Belt Piaggio Group · 842907 Available · Shipped in 3–5 working days

  € 39,65

  Add to cart

9 Fan Available 845611

•

  Fan Wheel Piaggio Group · 845611 Available · Shipped in 3–5 working days

  € 6,26

  Add to cart

10 Teethed bush Available 8770756

•

  Star disk Piaggio Group · 8770756 Available · Shipped in 3–5 working days

  € 17,84

  Add to cart

11 Washer Available 265300

•

  Washer Piaggio Group · 265300 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

12 Flanged nut M10x1,25 Available 289519

•

  Flywheel nut M10x1.25 Piaggio Group · 289519 Available · Shipped in 3–5 working days

  € 1,52

  Add to cart
