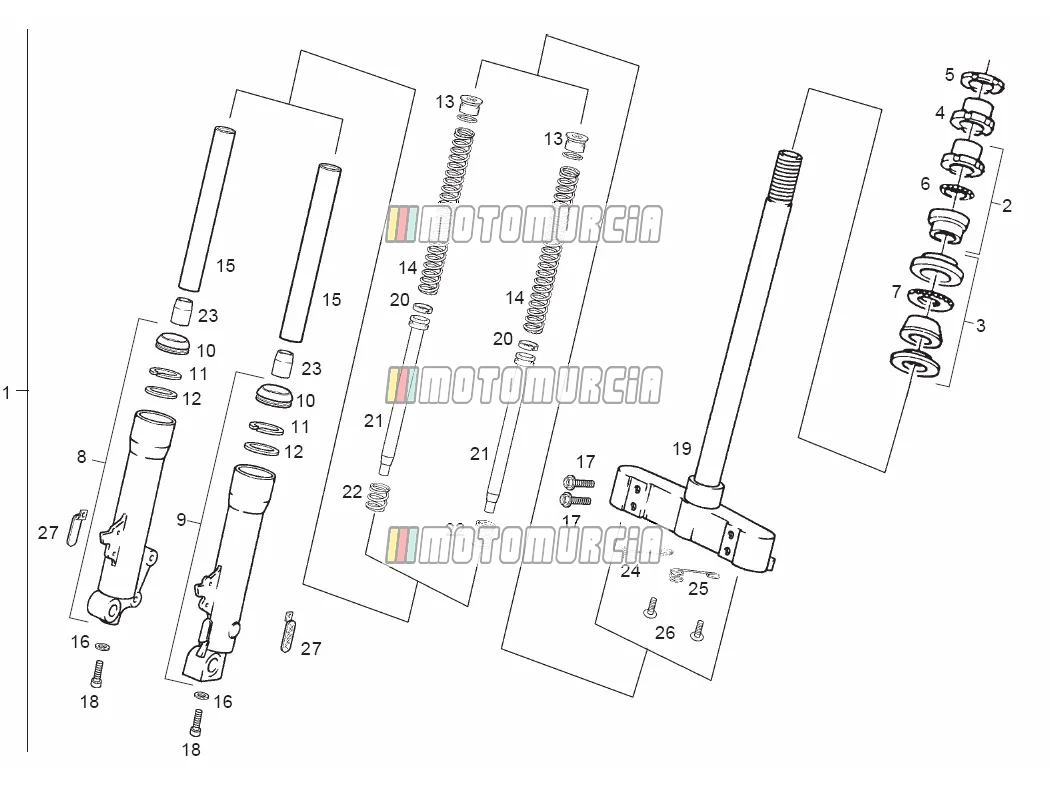

Exploded view — Front Fork

Products

01 LOWER TRIPLE CLAMP 00G00211001 No longer available

• 00G00211001 LOWER TRIPLE CLAMP
  No longer available

02 Steering bearing (UPPER) Available 65069345

•

  Steering bearing kit top Piaggio Group · 65069345 Available

  € 21,18

  Add to cart

03 Steering bearing (LOWER) Available 65007545

•

  Steering bearing kit bottom Piaggio Group · 65007545 Available

  € 31,01

  Add to cart

04 Washer of the steering Available 0037514

•

  Washer Piaggio Group · 0037514 Available

  € 1,48

  Add to cart

05 Steering tube ring nut Available 0111094

•

  Threaded ring Piaggio Group · 0111094 Available

  € 13,31

  Add to cart

06 Steering bearing (UPPER) Available 65069345

•

  Steering bearing kit top Piaggio Group · 65069345 Available

  € 21,18

  Add to cart

07 Steering bearing (LOWER) Available 65007545

•

  Steering bearing kit bottom Piaggio Group · 65007545 Available

  € 31,01

  Add to cart

08 RIGHT LOWER FORK TUBE 00G00204131 No longer available

• 00G00204131 RIGHT LOWER FORK TUBE
  No longer available

09 LEFT LOWER FORK TUBE 00G00204121 No longer available

• 00G00204121 LEFT LOWER FORK TUBE
  No longer available

10 Fork dust seal (M) Available 600127

•

  Dust guard Piaggio Group · 600127 Available

  € 25,93

  Add to cart

11 RING 00G00201601 No longer available

• 00G00201601 RING
  No longer available

12 LOWER FORK TUBE SEAL Available 00G00204471

•

  Gasket Piaggio Group · 00G00204471 Available

  € 16,90

  Add to cart

13 FORK CAP 00G02002541 No longer available

• 00G02002541 FORK CAP
  No longer available

14 FORK SPRING 00G00206171 No longer available

• 00G00206171 FORK SPRING
  No longer available

15 STEM SPRING 00G00202191 No longer available

• 00G00202191 STEM SPRING
  No longer available

16 Washer Available 00000031080

•

  Washer Ø 8,00 mm Piaggio Group · 00000031080 Available

  € 1,88

  Add to cart

17 Screw (M8x25) Available AP8150170

•

  Screw M8x25 Piaggio Group · AP8150170 Available

  € 5,13

  Add to cart

18 Screw 00004215000 No longer available

• 00004215000 Screw
  No longer available

19 LOWER TRIPLE CLAMP 00G00211001 No longer available

• 00G00211001 LOWER TRIPLE CLAMP
  No longer available

20 RING 00G00200501 No longer available

• 00G00200501 RING
  No longer available

21 DAMPER PISTON 00G00201541 No longer available

• 00G00201541 DAMPER PISTON
  No longer available

22 DAMPER PISTON SPRING 00G00202881 No longer available

• 00G00202881 DAMPER PISTON SPRING
  No longer available

23 DAMPER PISTON BUSH 00G00201181 No longer available

• 00G00201181 DAMPER PISTON BUSH
  No longer available

24 Spring 00H04401261 No longer available

• 00H04401261 Spring
  No longer available

25 Spring 00G00901521 No longer available

• 00G00901521 Spring
  No longer available

26 Screw Available 969296

•

  Flanged Screw M6x10 Piaggio Group · 969296 Available

  € 1,48

  Add to cart

27 Reflector Available 00H01802081

•

  Reflector Piaggio Group · 00H01802081 Available

  € 13,98

  Add to cart
