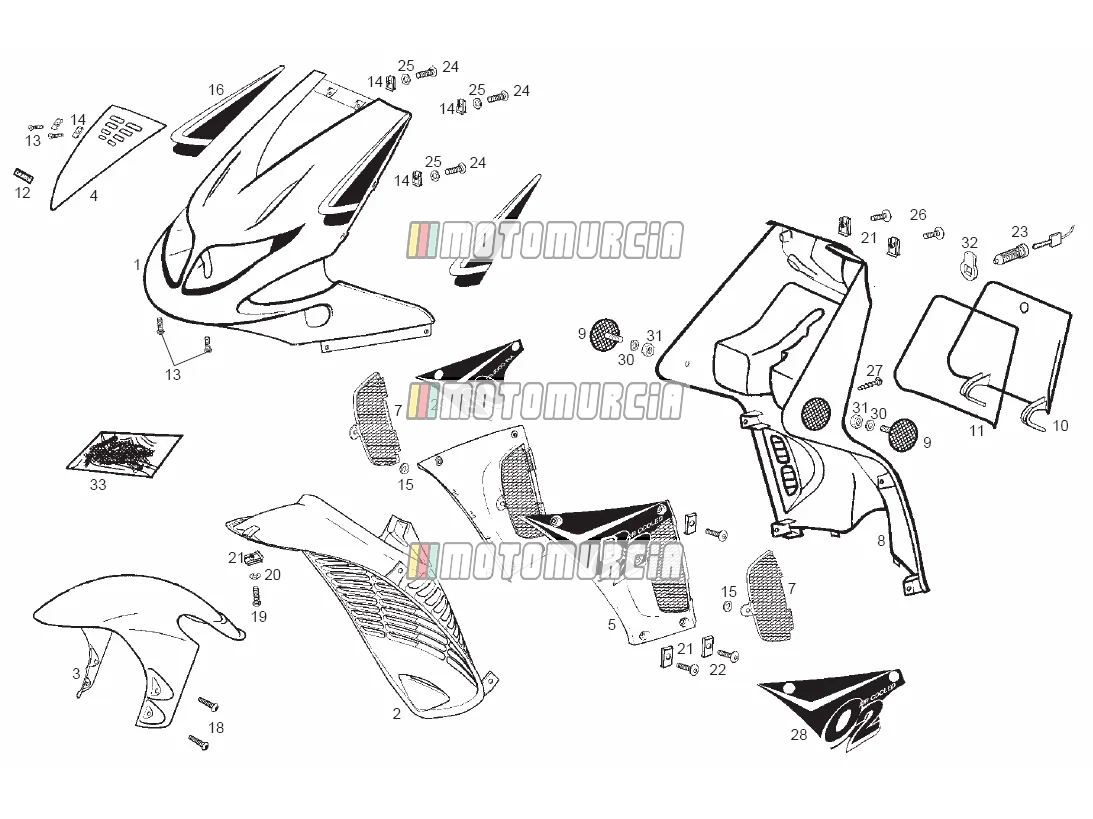

Exploded view — Frame

Products

01 Front fairing 00G04936082C No longer available

• 00G04936082C Front fairing
  No longer available
• 00G04936081 Front fairing
  No longer available

02 FRONT MUDGUARD PREDATOR 00G00700342 No longer available

• 00G00700342 FRONT MUDGUARD PREDATOR
  No longer available

03 Front mudguard 00G007120215 No longer available

• 00G007120215 Front mudguard
  No longer available
• 00G00712023 Front mudguard
  No longer available

04 SHIELD TRIM PREDATOR 00G01500722 No longer available

• 00G01500722 SHIELD TRIM PREDATOR
  No longer available

05 LH SIDE RADIATOR SUB/ASSY 00G04406832 No longer available

• 00G04406832 LH SIDE RADIATOR SUB/ASSY
  No longer available
• 00G04406831 LH SIDE RADIATOR SUB/ASSY
  No longer available

06 RH SIDE RADIATOR SUB/ASSY 00G04406802 No longer available

• 00G04406802 RH SIDE RADIATOR SUB/ASSY
  No longer available
• 00G04406801 RH SIDE RADIATOR SUB/ASSY
  No longer available

07 RADIATOR SIDE GRILLE PRED RED 00G03801301 No longer available

• 00G03801301 RADIATOR SIDE GRILLE PRED RED
  No longer available

08 Front leg shield plate Backorder 00G04901762

•

  Leg-shield inside Piaggio Group · 00G04901762 Backorder

  € 136,52

  Add to cart

09 AMBER SIDE REFLECTOR PRED 00G04402751 No longer available

• 00G04402751 AMBER SIDE REFLECTOR PRED
  No longer available

10 LUGGAGE BOX COVER PREDATOR 00G05901912 No longer available

• 00G05901912 LUGGAGE BOX COVER PREDATOR
  No longer available

11 JUNTA TAPA MALETA PREDATOR 00G05902621 No longer available

• 00G05902621 JUNTA TAPA MALETA PREDATOR
  No longer available

12 DECAL DERBI 00F04601121 No longer available

• 00F04601121 DECAL DERBI
  No longer available

13 SPHER HD ALLEN SCREW 00008151600 No longer available

• 00008151600 SPHER HD ALLEN SCREW
  No longer available

14 Clip nuts (M5) Available 00G04401462

•

  Sheet nut M5 Piaggio Group · 00G04401462 Available

  € 1,48

  Add to cart

15 Washer 00H00600991 No longer available

• 00H00600991 Washer
  No longer available

16 DECAL 00G04602201 No longer available

• 00G04602201 DECAL
  No longer available
• 00G04602202 DECAL
  No longer available

17 DECAL 00G04602212 No longer available

• 00G04602212 DECAL
  No longer available
• 00G04602211 DECAL
  No longer available

18 ROUND HD ALLEN SCREW.6M100X10. 00008061000 No longer available

• 00008061000 ROUND HD ALLEN SCREW.6M100X10.
  No longer available

19 Screw Available 00012161600

•

  Screw M6 Piaggio Group · 00012161600 Available

  € 0,99

  Add to cart

20 Washer Available 00000031060

•

  Washer Ø 6,00 mm Piaggio Group · 00000031060 Available

  € 0,99

  Add to cart

21 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

22 Screw Available AP8224470

•

  Screw M6x20 Piaggio Group · AP8224470 Available

  € 1,48

  Add to cart

23 LOCK ASSY, SADDLE Backorder 00H00600681

•

  Lock cylinder Piaggio Group · 00H00600681 Backorder

  € 81,86

  Add to cart

24 Screw Available AP8150137

•

  Screw M6x16 Piaggio Group · AP8150137 Available

  € 1,48

  Add to cart

25 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

26 Screw Available 00H01501701

•

  Screw Piaggio Group · 00H01501701 Available

  € 5,83

  Add to cart

27 Screw Available 00011051601

•

  Thread Screw 5x16 mm Piaggio Group · 00011051601 Available

  € 0,99

  Add to cart

28 DECAL, SIDE RADIATR 00G04909491 No longer available

• 00G04909491 DECAL, SIDE RADIATR
  No longer available
• 00G04909492 DECAL, SIDE RADIATR
  No longer available

29 DECAL, SIDE RADIATR 00G04909502 No longer available

• 00G04909502 DECAL, SIDE RADIATR
  No longer available
• 00G04909501 DECAL, SIDE RADIATR
  No longer available

30 Washer Available 847181

•

  Washer Piaggio Group · 847181 Available

  € 21,21

  Add to cart

31 Nut Backorder 00000023040

•

  Standard nut Piaggio Group · 00000023040 Backorder

  € 2,77

  Add to cart

32 LEVER Available 00G00601141

•

  Lever Piaggio Group · 00G00601141 Available

  € 8,69

  Add to cart

33 SET OF TRANSFERS 00G05138651 No longer available

• 00G05138651 SET OF TRANSFERS
  No longer available
• 00G05138652 SET OF TRANSFERS
  No longer available
