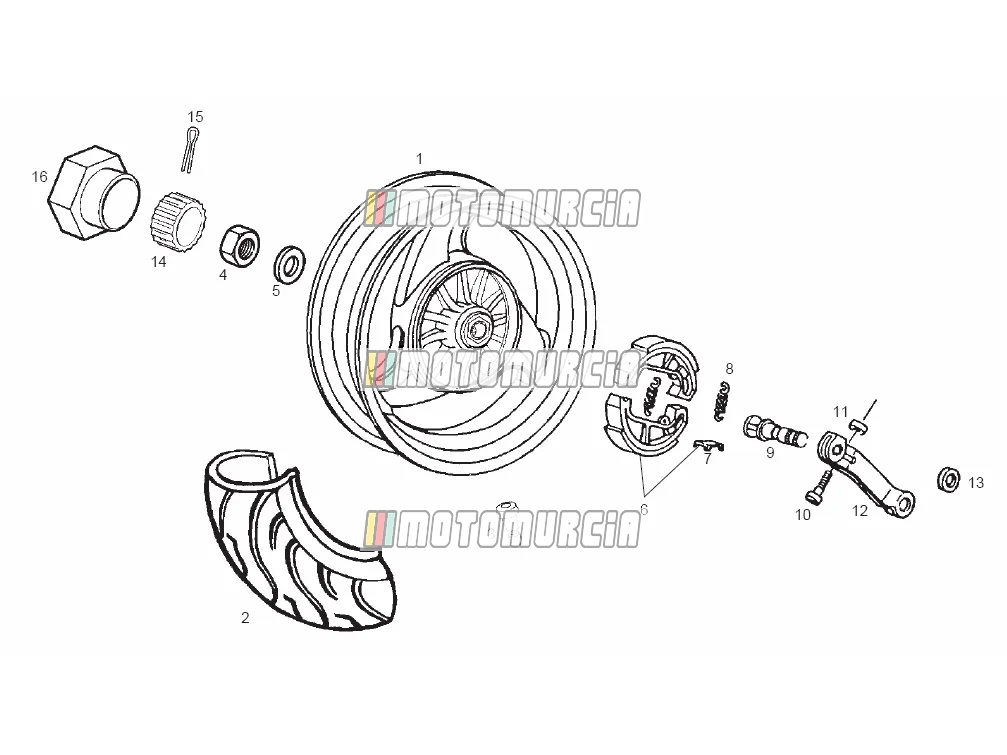

Exploded view — Rear Wheel

Products

01 Missing description 00G01310381 No longer available

• 00G01310381 Missing description
  No longer available

02 Missing description 00G01211111 No longer available

• 00G01211111 Missing description
  No longer available

03 Tubeless tyre valve Available 270991

•

  Tyre valves Piaggio Group · 270991 Available · Shipped in 3–5 working days

  € 6,80

  Add to cart

04 M16 Backorder 00232160021

•

  Standard nut M16 Piaggio Group · 00232160021 Backorder · Shipped in 2–4 weeks

  € 2,95

  Add to cart

05 Washer 00G01303191 No longer available

• 00G01303191 Washer
  No longer available

06 Brake shoe 00G01300931 No longer available

• 00G01300931 Brake shoe
  No longer available

  Alternatives from other brands



  Brake Shoes Ferodo · FSB777A Available · Shipped in 4–7 working days

  € 19,36

  Add to cart



  2181 BRAKE SHOES SBS · 5192181100 Available · Shipped in 4–7 working days

  € 42,83

  Add to cart



  BRAKE SHOE STANDARD - BRAKE SHOE PLAIN SERIES ORGANIC EBC · S624 Available · Shipped in 7–13 working days

  € 21,95

  Add to cart

07 Plate Available 266724

•

  Plate Piaggio Group · 266724 Available · Shipped in 3–5 working days

  € 36,11

  Add to cart

08 Brake shoes return spring Available 647384

•

  Brake shoe spring Piaggio Group · 647384 Available · Shipped in 3–5 working days

  € 2,02

  Add to cart

09 Rear brake cam Available B014502

•

  Brake cam Piaggio Group · B014502 Available · Shipped in 3–5 working days

  € 54,72

  Add to cart

10 Screw Available B011784

•

  Screw Piaggio Group · B011784 Available · Shipped in 3–5 working days

  € 2,60

  Add to cart

11 Nut Available 828862

•

  Square nut Piaggio Group · 828862 Available · Shipped in 3–5 working days

  € 2,31

  Add to cart

12 Rear brake lever Available 560796

• 560796 Rear brake lever


  Brake Lever Piaggio Group · 833428 ↻ Replaces 560796, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 9,72

  Add to cart

13 Gasket ring Available 273419

•

  Oil seal Piaggio Group · 273419 Available · Shipped in 3–5 working days

  € 1,82

  Add to cart

14 Nut hold cap Available 1C004746

•

  Covering Cap Piaggio Group · 1C004746 Available · Shipped in 3–5 working days

  € 3,94

  Add to cart

15 Split pin Available 00702009321

•

  Split Pin Piaggio Group · 00702009321 Available · Shipped in 3–5 working days

  € 1,39

  Add to cart

16 TAPACUBOS LLANTA TR.PRED GP1 00G01302161 No longer available

• 00G01302161 TAPACUBOS LLANTA TR.PRED GP1
  No longer available
