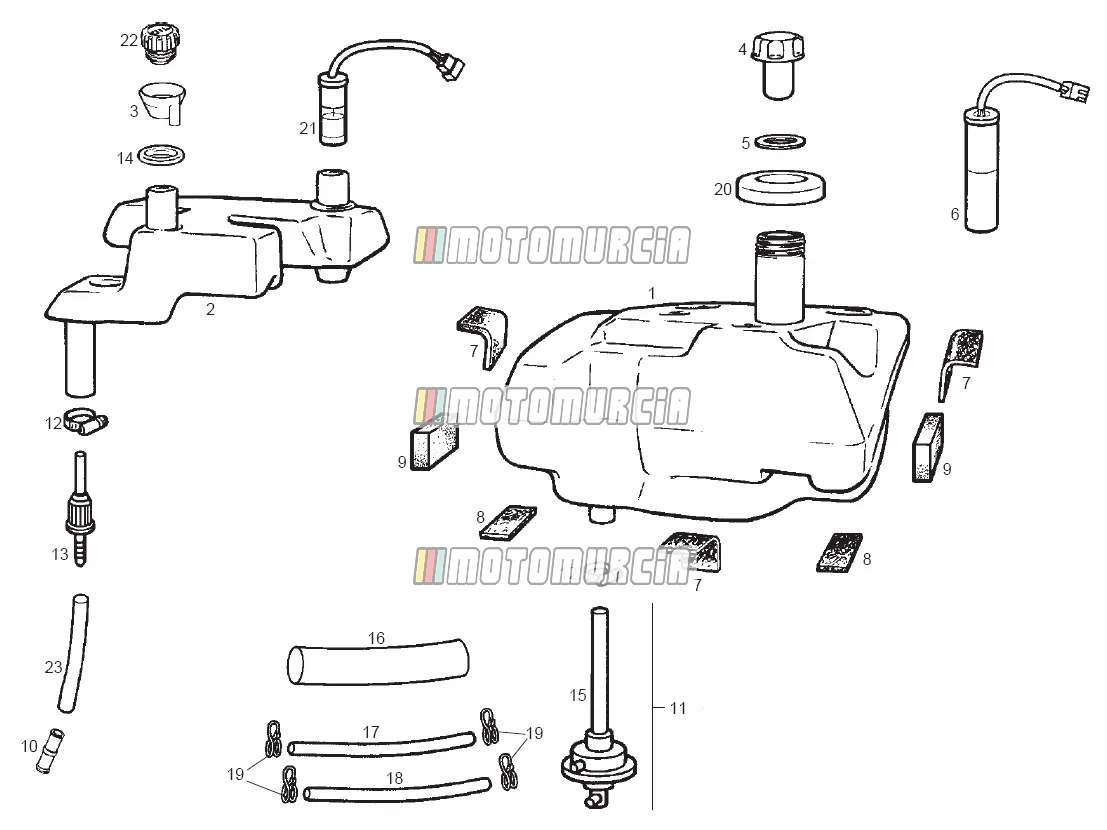

Exploded view — Tank

Products

01 Fuel tank 00G00413011 No longer available

• 00G00413011 Fuel tank
  No longer available

02 OIL RESERVOIR 00G03702081 No longer available

• 00G03702081 OIL RESERVOIR
  No longer available

03 BOCA LLENADO ACEITE ATLANTIS 00G03701601 No longer available

• 00G03701601 BOCA LLENADO ACEITE ATLANTIS
  No longer available

04 Oil filler cap Available 00G00401131

•

  Tank Cap Piaggio Group · 00G00401131 Available

  € 21,84

  Add to cart

05 Washer Available 00F00400771

•

  Gasket Piaggio Group · 00F00400771 Available

  € 4,67

  Add to cart

06 FUEL LEVEL FLOAT ASSY 00G04306181 No longer available

• 00G04306181 FUEL LEVEL FLOAT ASSY
  No longer available

07 LOWER TANK STOP 00G06200081 No longer available

• 00G06200081 LOWER TANK STOP
  No longer available

08 FUEL TANK SIDE STOP 00G06301771 No longer available

• 00G06301771 FUEL TANK SIDE STOP
  No longer available

09 LEFT AND RIGHT LOWER TANK STOP 00G00401581 No longer available

• 00G00401581 LEFT AND RIGHT LOWER TANK STOP
  No longer available

10 Joint Available 00G03701031

•

  Nozzle Piaggio Group · 00G03701031 Available

  € 2,66

  Add to cart

11 Fuel tap Available 674594

•

  Petrol Tap Piaggio Group · 674594 Available

  € 20,74

  Add to cart

12 Clamp Available 00G00400501

•

  Hose Clamp Piaggio Group · 00G00400501 Available

  € 2,18

  Add to cart

13 Oil filter Available 00G03700411

•

  Oil Filter Piaggio Group · 00G03700411 Available

  € 14,07

  Add to cart

14 OIL TANK STOP END. 00G06800641 No longer available

• 00G06800641 OIL TANK STOP END.
  No longer available

15 FUEL TANK/FUEL COCK TUBE Available 00H00400371

•

  Petrol Hose Piaggio Group · 00H00400371 Available

  € 8,12

  Add to cart

16 OIL PIPE COUPLING CONNECTOR 00G03700351 No longer available

• 00G03700351 OIL PIPE COUPLING CONNECTOR
  No longer available

17 OIL RESERVOIR OUTLET PIPE 00F03740111 No longer available

• 00F03740111 OIL RESERVOIR OUTLET PIPE
  No longer available

18 FUEL COCK VACUUM TUBE 00G06202061 No longer available

• 00G06202061 FUEL COCK VACUUM TUBE
  No longer available

19 Clamp Backorder 00H00400501

•

  Clamp 7,8-8,3 mm Piaggio Group · 00H00400501 Backorder

  € 0,99

  Add to cart

20 Gasket Available 00G06200051

•

  Gasket Piaggio Group · 00G06200051 Available

  € 2,46

  Add to cart

21 CTO.INDICAD.NIVEL ACTE.PR.GP1 00G03705051 No longer available

• 00G03705051 CTO.INDICAD.NIVEL ACTE.PR.GP1
  No longer available

22 Oil filler cap Available 00F03710241

•

  Oil Tank Cap Piaggio Group · 00F03710241 Available

  € 15,75

  Add to cart

23 FUEL PIPE Available 00H00402321

•

  Petrol Hose Piaggio Group · 00H00402321 Available

  € 5,63

  Add to cart
