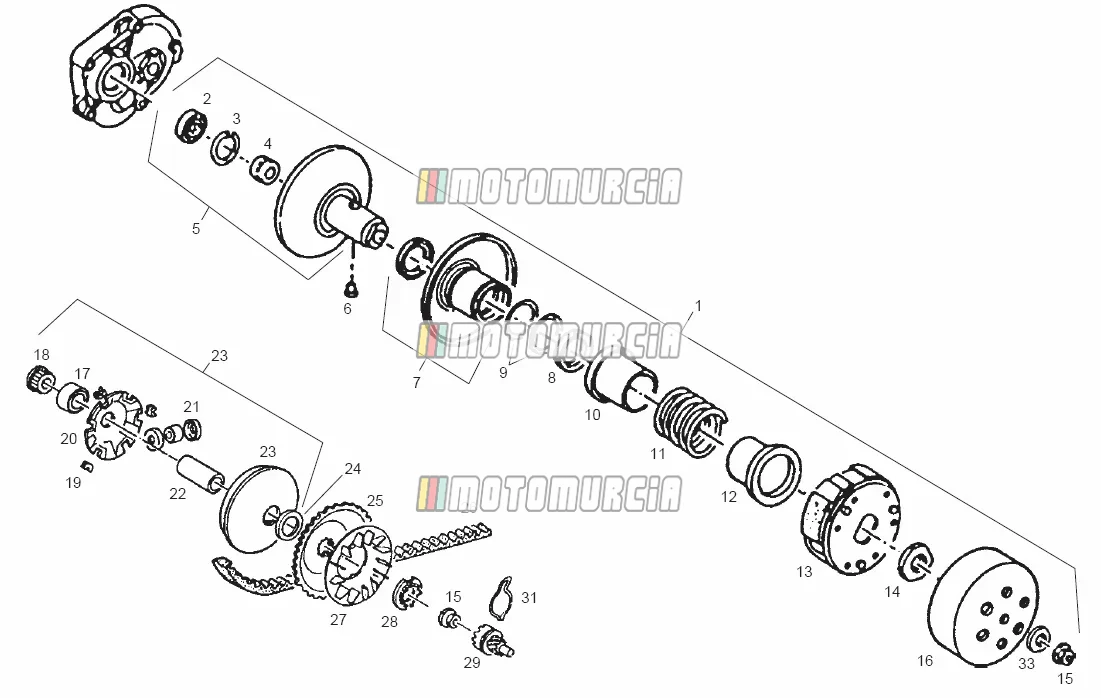

Exploded view — Variator Assembly
‹ Back to model
Derbi GP Series O2 Export 2001
Products
01 Pulley Available
-
CM1001025 PulleyPulley rear Piaggio Group · CM1001075 ↻ Replaces CM1001025, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 256,12
02 Bearing Available
-
289953 BearingBall bearing 12x24x6 mm Piaggio Group · 82655R ↻ Replaces 289953, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 16,95
03 Seeger Available
-
Circlip 24x25,8x1,2 mm Piaggio Group · 006624 Available · Shipped in 3–5 working days€ 2,63
04 Needle bearing Available
-
Needle bearing 18x18x25 mm Piaggio Group · 289952 Available · Shipped in 3–5 working days€ 17,64
05 Complete fixed secondary pulley Available
-
Pulley rear Piaggio Group · 4795526 Available · Shipped in 3–5 working days€ 197,94
06 Pin Available
-
Bolts Piaggio Group · 482766 Available · Shipped in 3–5 working days€ 2,35
07 Pulley, half Available
-
4368755 Pulley, halfPulley halves Piaggio Group · 827893 ↻ Replaces 4368755, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 74,21
08 Gasket ring Backorder
-
Oil seal Piaggio Group · 289950 Backorder · Shipped in 2–4 weeks€ 11,47
09 Gasket Available
-
Gasket Piaggio Group · 289840 Available · Shipped in 3–5 working days€ 2,83
10 Pulley side cap Available
-
Spring Mount Piaggio Group · 483443 Available · Shipped in 3–5 working days€ 8,19
11 Spring Available
-
Converter spring Piaggio Group · 478028 Available · Shipped in 3–5 working days€ 20,44
12 Clutch side cap Available
-
Spring Mount Piaggio Group · 487935 Available · Shipped in 3–5 working days€ 16,93
13 Clutch assembly Available
-
CM100202 Clutch assemblyClutch Shoes Piaggio Group · CM1002025 ↻ Replaces CM100202, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 54,43
14 Clutch nut Available
-
Standard nut Piaggio Group · 289955 Available · Shipped in 3–5 working days€ 14,90
15 Flanged nut M10x1,25 Available
-
Flywheel nut M10x1.25 Piaggio Group · 289519 Available · Shipped in 3–5 working days€ 1,52
16 Clutch bell Available
-
Clutch Case Piaggio Group · 289933 Available · Shipped in 3–5 working days€ 52,11
17 Spacer Available
-
Spacer Ring Piaggio Group · 479495 Available · Shipped in 3–5 working days€ 6,55
18 Toothed pulley Available
-
Gear Wheel Piaggio Group · 286158 Available · Shipped in 3–5 working days€ 13,75
19 Variator slider Available
-
Slide Piaggio Group · 289931 Available · Shipped in 3–5 working days€ 1,23
20 Roller housing back plate Available
-
Calotte Piaggio Group · 480227 Available · Shipped in 3–5 working days€ 15,60
21 Kit of 6 rollers Available
-
CM1010025 Kit of 6 rollersVariator weights 19x15,5 mm, 6,0 g, Content: 6 Stk Piaggio Group · CM1102025 ↻ Replaces CM1010025, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 18,34
22 Spacer Available
-
Converter Hub Piaggio Group · 480230 Available · Shipped in 3–5 working days€ 38,19
23 Variator (19x15.5 - 6,4g) Available
-
Variator with 6 rollers Piaggio Group · CM110301 Available · Shipped in 3–5 working days€ 76,07
24 Spacer Available
-
Spacer Ring thickness: 3,00 mm Piaggio Group · CM100604 Available · Shipped in 3–5 working days€ 2,63
25 V-Belt Pulley Available
-
Toothed Pulley Wheel Piaggio Group · 479561 Available · Shipped in 3–5 working days€ 28,70
26 V-Belt Available
-
V-Belt Piaggio Group · 436864 Available · Shipped in 3–5 working days€ 29,50
27 Pulley disk Available
-
480410 Pulley diskFan Wheel Piaggio Group · 845611 ↻ Replaces 480410, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 6,26
28 Toothed bushing Available
-
479866 Toothed bushingStar disk Piaggio Group · 8770756 ↻ Replaces 479866, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days€ 17,84
29 Kickstart pinion Available
-
Kickstarter pinion Piaggio Group · 483537 Available · Shipped in 3–5 working days€ 31,06
30 Elastic spring Available
-
Clamp Piaggio Group · 288673 Available · Shipped in 3–5 working days€ 2,47
31 Washer Available
-
Washer Piaggio Group · 265300 Available · Shipped in 3–5 working days€ 1,45
