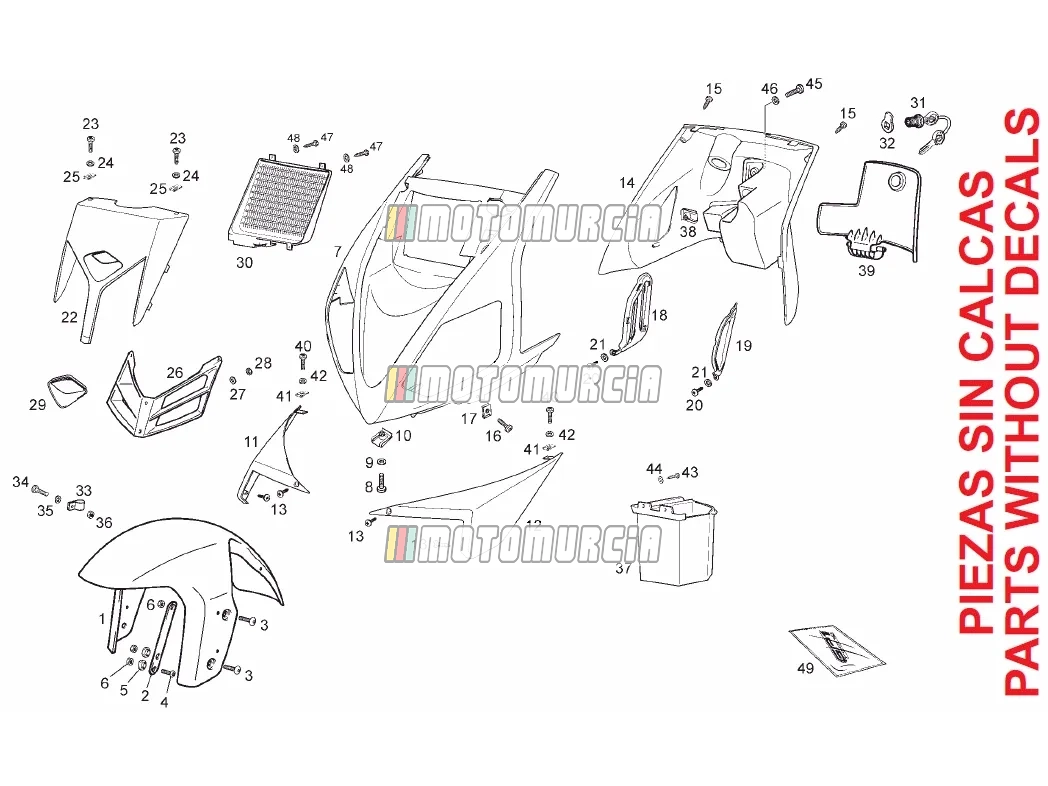

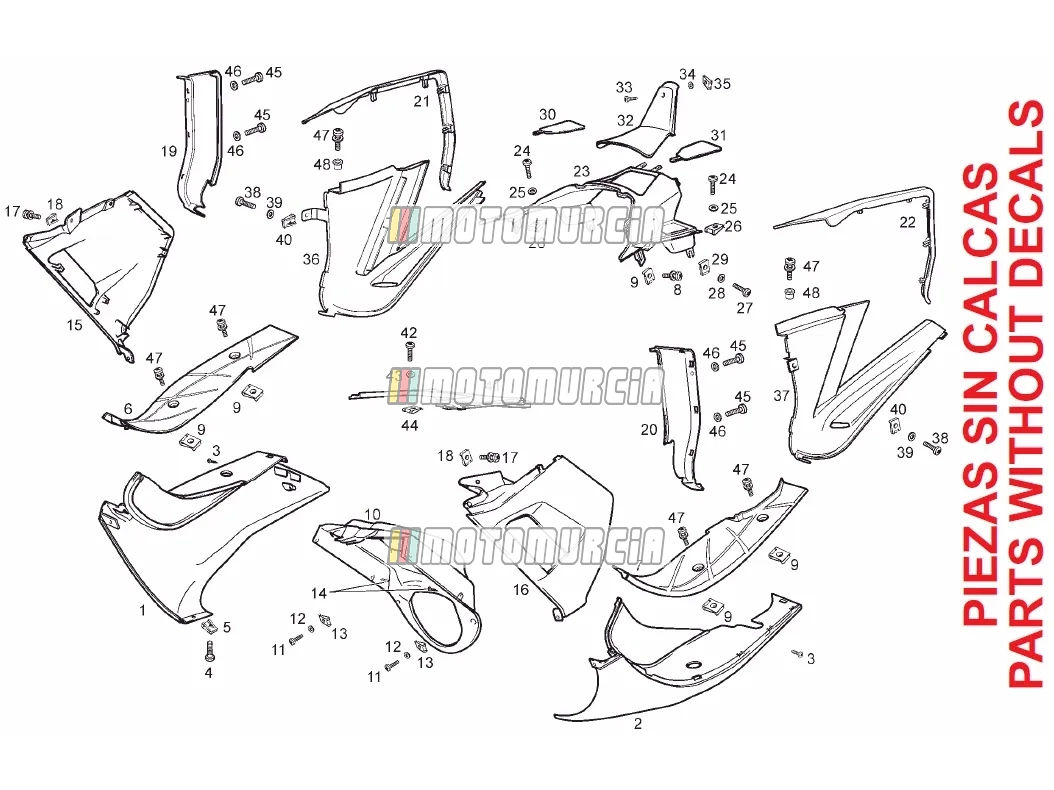

Exploded view — Body

Products

1 Front mudguard Backorder 20G00715021

•

  Mudguard front Piaggio Group · 20G00715021 Backorder

  € 11,42

  Add to cart
• 00G007150215 Front mudguard (Red)
  No longer available
• 00G007150245 GUARDB.DLNTR.AZL AMA.GP1 250CC
  No longer available

2 Bracket Available 00G00701051

•

  Bracket for mudguard, front Piaggio Group · 00G00701051 Available

  € 8,46

  Add to cart

3 Screw Available 00H01503701

•

  Screw Piaggio Group · 00H01503701 Available

  € 5,83

  Add to cart

4 Screw Available 00008062000

•

  Screw Piaggio Group · 00008062000 Available

  € 2,54

  Add to cart

5 Bush Available 00H00700321

•

  Sleeve Piaggio Group · 00H00700321 Available

  € 5,15

  Add to cart

6 Nut Available 00000023060

•

  Standard nut M6 Piaggio Group · 00000023060 Available

  € 0,99

  Add to cart

7 Front fairing 00G015053515 No longer available

• 00G015053515 Front fairing
  No longer available
• 00G015053525 SCUDO ANTERIORE
  No longer available
• 00G015053545 ESCUD.FRONT.AZL.AMAR.GP1 250CC
  No longer available

8 Screw Available 00012162000

•

  Screw M6 Piaggio Group · 00012162000 Available

  € 0,99

  Add to cart

9 Washer Available 00031106000

•

  Shim Piaggio Group · 00031106000 Available

  € 0,99

  Add to cart

11 FRONT RH AIR INTAKE Backorder 00G01800021

•

  Cover, right Piaggio Group · 00G01800021 Backorder

  € 15,35

  Add to cart

12 FRONT LH AIR INTAKE Available 00G01800031

•

  Cover, left Piaggio Group · 00G01800031 Available

  € 15,35

  Add to cart

13 Self-tap screw 00113031060 No longer available

• 00113031060 Self-tap screw
  No longer available

14 INTERIOR ESCUD.FRONT.GP1 250CC Backorder 00G04907761

•

  Leg-shield inside Piaggio Group · 00G04907761 Backorder

  € 69,55

  Add to cart

16 Screw Available 00008051200

•

  Screw Piaggio Group · 00008051200 Available

  € 1,60

  Add to cart

18 GRID Backorder 00G03802301

•

  Grid, right Piaggio Group · 00G03802301 Backorder

  € 12,10

  Add to cart

19 GRID Backorder 00G03800401

•

  Grid, left Piaggio Group · 00G03800401 Backorder

  € 12,10

  Add to cart

21 Washer Available 00000031040

•

  Washer Ø 4,00 mm Piaggio Group · 00000031040 Available

  € 0,99

  Add to cart

22 TAPA ESCUDO FRONT.GP1 250CC 05 Backorder 00G05905911

•

  Cover Piaggio Group · 00G05905911 Backorder

  € 32,07

  Add to cart

23 Screw Available 00012151500

•

  Screw M5 Piaggio Group · 00012151500 Available

  € 2,47

  Add to cart

25 Clip nuts (M5) Available 00G04401462

•

  Sheet nut M5 Piaggio Group · 00G04401462 Available

  € 1,48

  Add to cart

26 GRID 00G03803301 No longer available

• 00G03803301 GRID
  No longer available

27 8 - Front dust cover ring Available AP8120622

•

  Washer Piaggio Group · AP8120622 Available

  € 1,59

  Add to cart

28 Washer Available 861239

•

  Shim Ø 5,00 mm, inox Piaggio Group · 861239 Available

  € 2,77

  Add to cart

29 PROTEC.OPTICA POSIC.GP1 250CC 00G05703141 No longer available

• 00G05703141 PROTEC.OPTICA POSIC.GP1 250CC
  No longer available

30 REJILLA INT.ESCD.FRONT.GP1 250 00G03804301 No longer available

• 00G03804301 REJILLA INT.ESCD.FRONT.GP1 250
  No longer available

31 LOCK ASSY, SADDLE Backorder 00H00600681

•

  Lock cylinder Piaggio Group · 00H00600681 Backorder

  € 81,86

  Add to cart

32 LEVER Available 00G00601141

•

  Lever Piaggio Group · 00G00601141 Available

  € 8,69

  Add to cart

33 Fairlead Available 864454

•

  Clamp Piaggio Group · 864454 Available

  € 2,63

  Add to cart

36 Nut Available 00000023050

•

  Standard nut Piaggio Group · 00000023050 Available

  € 2,69

  Add to cart

37 CAJA PORTAOBJ.GP1 RACE 250CC 00G01502681 No longer available

• 00G01502681 CAJA PORTAOBJ.GP1 RACE 250CC
  No longer available

38 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

39 TAPA MALETA ESCD.FRONT.GP1 250 00G05911911 No longer available

• 00G05911911 TAPA MALETA ESCD.FRONT.GP1 250
  No longer available

42 Washer gasket Available 847226

•

  Shim Piaggio Group · 847226 Available

  € 0,99

  Add to cart

43 Screw 00011942000 No longer available

• 00011942000 Screw
  No longer available

45 Screw Available 00008061500

•

  Screw M6 Piaggio Group · 00008061500 Available

  € 0,99

  Add to cart

47 Screw (3,6x10) Available 00011031001

•

  Thread Screw 3,6x10 mm Piaggio Group · 00011031001 Available

  € 1,44

  Add to cart

49 Sticker - Decal 86177900WR0 No longer available

• 86177900WR0 Sticker - Decal
  No longer available
• 86177900WN0 Sticker - Decal
  No longer available
• 86177900WA2 Sticker - Decal
  No longer available
