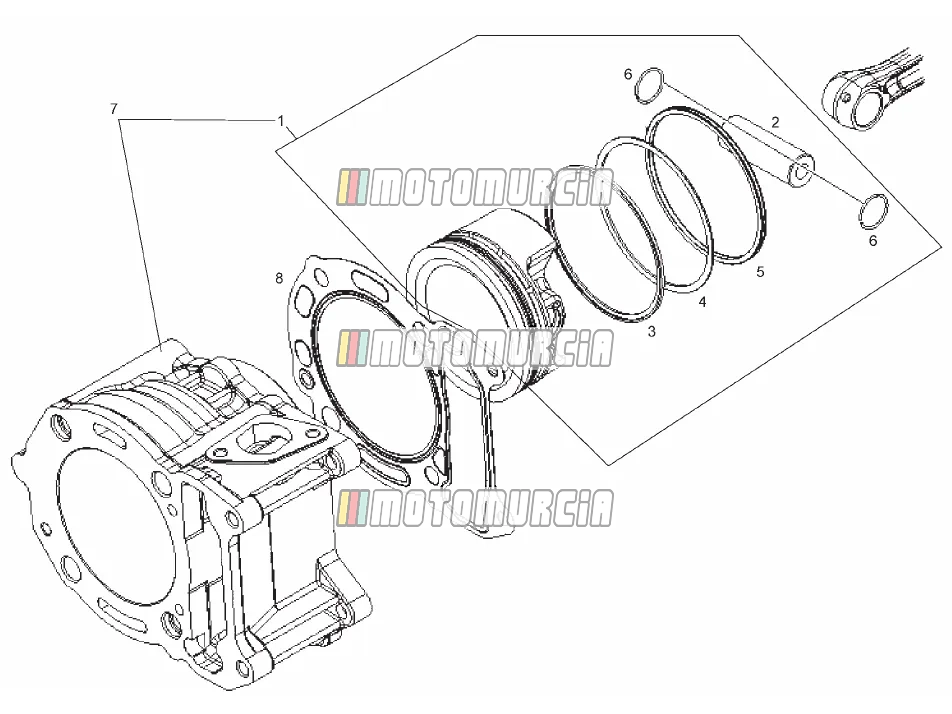

Exploded view — Cylinder - Piston

‹ Back to model

Derbi GP1 125 2007

Derbi GP1 125 2007

Cylinder - Piston

Products

1 Piston kit (D) Backorder 1A0077850D

Piston Cat. 4 Piaggio Group · 1A0077850D Backorder

€ 155,19
Piston Cat. 3 Piaggio Group · 1A0077850C Available

€ 155,19
Piston Cat. 2 Piaggio Group · 1A0077850B Available

€ 173,10
Piston Cat. 1 Piaggio Group · 1A0077850A Available

€ 155,19

2 Piston pin Available 482335

Piston Pin Piaggio Group · 482335 Available

€ 14,98

3 Compression ring d.57x1 Available 485779

Piston Ring Piaggio Group · 485779 Available

€ 23,92

4 Oil scraper ring d.57x1 Available 485914

Piston Ring Piaggio Group · 485914 Available

€ 22,60

5 Oil scraper ring d.57x2,5 Available 486362

Piston Ring Piaggio Group · 486362 Available

€ 40,79

6 Seeger Available 963486

Piston Clip Piaggio Group · 963486 Available

€ 0,99

7 Cylinder kit (125 cc) Available 1A007784

Cylinder Piaggio Group · 1A007784 Available

€ 253,27

8 Gasket - cylinder base (0,8 mm) Available 875114

Cylinder Base Gasket thickness: 0,80 mm Piaggio Group · 875114 Available

€ 16,27
Cylinder Base Gasket thickness: 0,40 mm Piaggio Group · 875112 Available

€ 16,72
Cylinder Base Gasket thickness: 0,60 mm Piaggio Group · 875113 Available

€ 16,19
