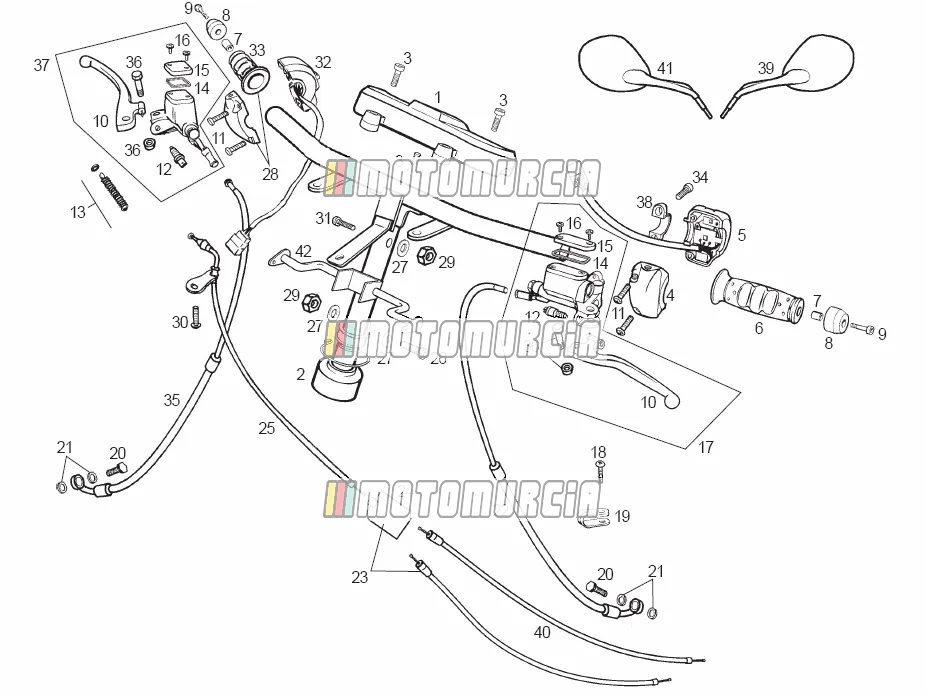

Exploded view — Handlebar - Controls

‹ Back to model
Derbi GP1 50 2002 Derbi GP1 50 2002
Handlebar - Controls

Products

01 PLATINA MANILLAR PRED.(GMS)REP 00G00902671 No longer available
  • 00G00902671 PLATINA MANILLAR PRED.(GMS)REP
    No longer available
02 HANDLEBAR ASSY 00G00905011 No longer available
  • 00G00905011 HANDLEBAR ASSY
    No longer available
  • 00G00906011 SCTO.MANILLAR PRED. (GMS)USA
    No longer available
03 Screw 6M100X12 Backorder 00000004612
  • Screw M6 Piaggio Group · 00000004612 Backorder
    € 1,59
04 LIGHT SWITCH BRCKT SECUR CLAMP Backorder 00F02300611
  • Clamp Piaggio Group · 00F02300611 Backorder
    € 34,92
05 INDICATOR SWITCH ASSY 00G01701701 No longer available
  • 00G01701701 INDICATOR SWITCH ASSY
    No longer available
  • 00G01704701 INDICATOR SWITCH ASSY
    No longer available
06 REAR BRAKE LEVER GRIP 00G00902071 No longer available
  • 00G00902071 REAR BRAKE LEVER GRIP
    No longer available
07 Washer 00G05800251 No longer available
  • 00G05800251 Washer
    No longer available
08 Handlebar weight Available 00G02102923A
09 HEX.SOCKET-HEAD SCREW5M80X45 00004154500 No longer available
  • 00004154500 HEX.SOCKET-HEAD SCREW5M80X45
    No longer available
10 R-MANETA FRENO TR.PRED.GP1 00F00902292 No longer available
  • 00F00902292 R-MANETA FRENO TR.PRED.GP1
    No longer available
11 THROTTLE GRIP CAP SECUR SCREW 00F00901151 No longer available
  • 00F00901151 THROTTLE GRIP CAP SECUR SCREW
    No longer available
12 Brake light switch Available 00D01000701
13 Brake repair set 00H02101811 No longer available
  • 00H02101811 Brake repair set
    No longer available
14 BRAKE FLUID RESERVOIR CAP SEAL Available 00H02100861
  • Gasket Piaggio Group · 00H02100861 Available
    € 17,74
15 Brake fluid reservoir cover 00H02100191 No longer available
  • 00H02100191 Brake fluid reservoir cover
    No longer available
16 Screw 4M80X12 00014041200 No longer available
  • 00014041200 Screw 4M80X12
    No longer available
17 R-CTO.MANDO FR.TR.PRED. RE 00G01100012 No longer available
  • 00G01100012 R-CTO.MANDO FR.TR.PRED. RE
    No longer available
18 Screw Available 414838
  • Screw M6x35 Piaggio Group · 414838 Available
    € 1,48
19 GUIA TUBO LIQ.FR.TRAS.GP1 00G01100261 No longer available
  • 00G01100261 GUIA TUBO LIQ.FR.TRAS.GP1
    No longer available
20 Oil pipe screw Available 862494
  • Hollow screw Piaggio Group · 862494 Available
    € 9,33
21 Washer gasket Available 867238
  • Shim Piaggio Group · 867238 Available
    € 4,85
22 R-TUBO LIQUIDO FR.TR.GP1 00G01101081 No longer available
  • 00G01101081 R-TUBO LIQUIDO FR.TR.GP1
    No longer available
23 REAR THROTTLE CABLE/SLEEVE S/A 00G00900401 No longer available
  • 00G00900401 REAR THROTTLE CABLE/SLEEVE S/A
    No longer available
24 THROTTLE CABLE CONNECTOR BOX Backorder 00G00901861
  • Cable splitter Piaggio Group · 00G00901861 Backorder
    € 18,60
25 CTO.CABLE FUNDA GAS PR.GP1 00G00910171 No longer available
  • 00G00910171 CTO.CABLE FUNDA GAS PR.GP1
    No longer available
26 Screw Available 00000004845
  • Allen screw Piaggio Group · 00000004845 Available
    € 3,19
27 Washer Available 00000031080
28 THROTTLE TWIST GRIP ASSY Available 00G00902081
  • Throttle grip Piaggio Group · 00G00902081 Available
    € 33,11
29 Nut Backorder 00000023080
30 Screw Available 00012051200
  • Screw M5 Piaggio Group · 00012051200 Available
    € 1,72
31 Screw 00002084011 No longer available
  • 00002084011 Screw
    No longer available
32 CTO.CONMUT.PARO MOTOR MANH.USA 00G02300161 No longer available
  • 00G02300161 CTO.CONMUT.PARO MOTOR MANH.USA
    No longer available
  • Light switch Piaggio Group · 00G02301171 Available
    € 36,71
33 THROTTLE TWIST GRIP 00G00902091 No longer available
  • 00G00902091 THROTTLE TWIST GRIP
    No longer available
34 ALLEN SCREN 6M100X20 00000004620 No longer available
  • 00000004620 ALLEN SCREN 6M100X20
    No longer available
35 FRONT BRAKE FLUID TUBE ASSY 00G00904751 No longer available
  • 00G00904751 FRONT BRAKE FLUID TUBE ASSY
    No longer available
36 LEVER HINGE PIN SCREW ASSY 00G00900211 No longer available
  • 00G00900211 LEVER HINGE PIN SCREW ASSY
    No longer available
37 Brake hydraulic pump Available 00G02102081
38 U-bolt Backorder 00D02100901
39 MIRROR LH. 00G04608921 No longer available
  • 00G04608921 MIRROR LH.
    No longer available
40 Doub. carb. trans. Available 582256
41 MIRROR RH. 00G02207671 No longer available
  • 00G02207671 MIRROR RH.
    No longer available
42 LIGHT INDICATOR SUPPORT 00G00900931 No longer available
  • 00G00900931 LIGHT INDICATOR SUPPORT
    No longer available
